ECX-3000 Series

Key Features:

Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU
Intel® UHD Graphics 770/730 driven by Intel® Xe architecture with up to 32 graphics execution units (EUs) delivers immersive interactions with integrated graphics and accelerated AI performance
8 Independent 2.5G LAN with 4 IEEE 802.3at PoE+
4 Front-access M.2 SSD Tray, 6 USB 3.2 Gen 2
DC 9V to 50V Power Input, Software Ignition Control
Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Certified Intel® ESDQ (Edge Software Device Qualification) for Autonomous Mobile Robots (AMR)

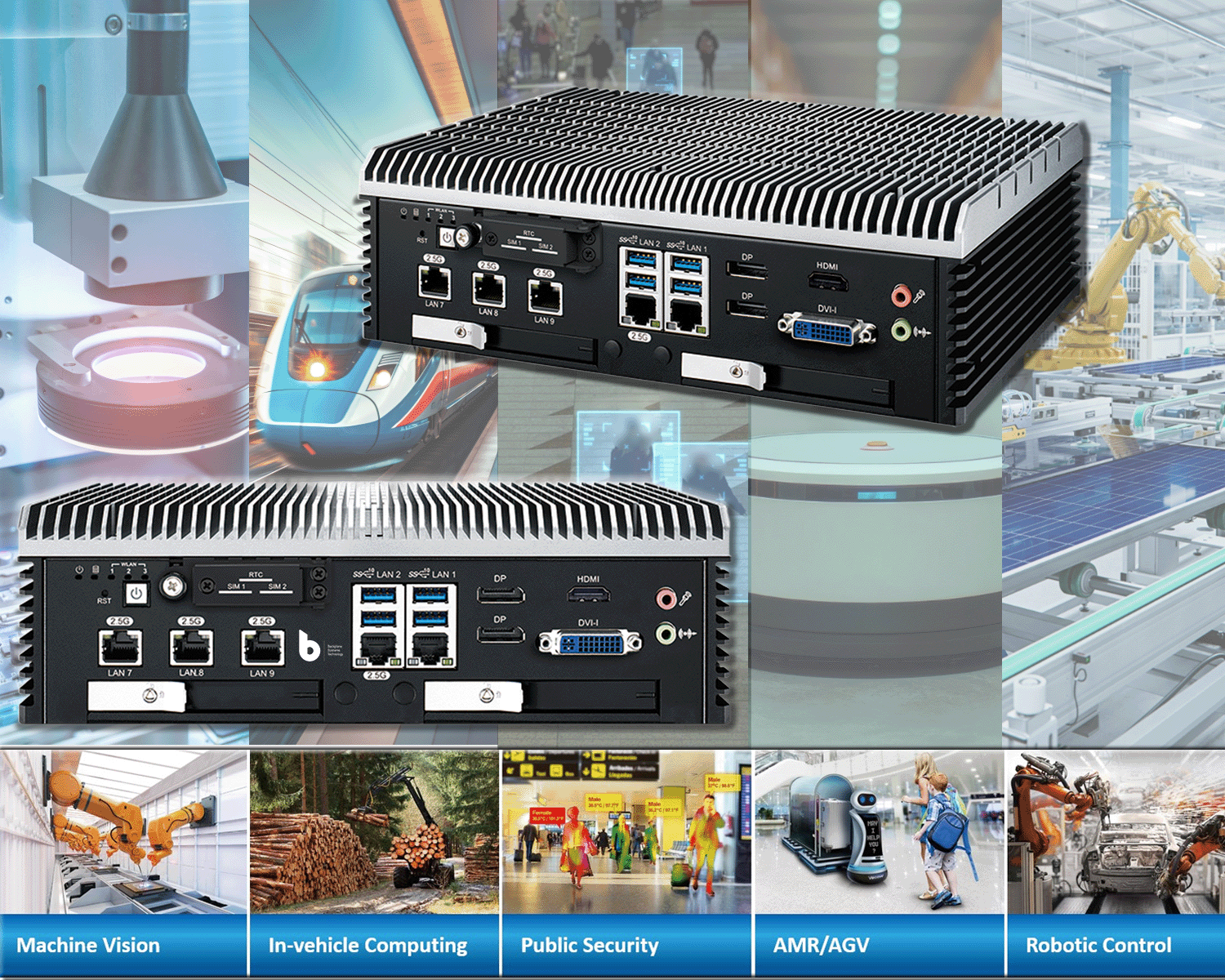

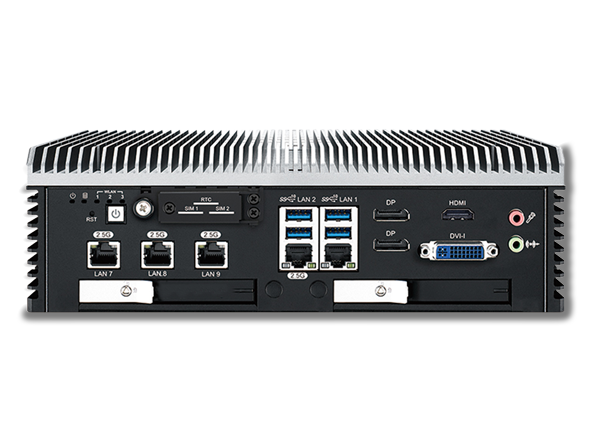

Backplane Systems Technology is pleased to present Vecow’s ECX-3000 Series. Vecow’s ECX-3000 Series is an advanced workstation-grade Edge AI platform built to tackle intensive computing and rugged deployments. Powered by 14th Gen Intel® Core™ i9/i7/i5/i3 processors (up to 65W TDP), the ECX-3000 delivers high-performance processing for applications demanding real-time decision-making. With up to 8 independent 2.5G LAN ports including 4 PoE+, and Intel® UHD Graphics 770 driven by Xe architecture, it’s ideal for high-throughput vision-based workloads like AMR navigation, machine vision, and multi-camera AI analytics.

Designed for industrial and in-vehicle use, the ECX-3000 supports wide 9V–50V power input, software ignition control, and fanless operation from -40°C to 75°C. This makes it reliable for harsh environments such as autonomous mobile robots (AMRs) in logistics, traffic monitoring, or AI-driven smart surveillance systems.

Integrated M.2 SSD trays, rich I/O including 6 USB 3.2 Gen 2, 16 isolated DIO, and 4 COM ports provide flexibility for robotics control and time-sensitive networking (TSN) use in factory automation or transport. Certified with Intel® ESDQ, and compatible with OpenVINO™ toolkit, it supports AI model deployment and real-time inference at the edge—transforming industries from public security to intelligent transportation with scalable, responsive, and rugged edge AI computing.

🔹 Model 1: ECX-3000

Ordering Information:

Model	LAN Ports	PoE+ Ports	SSD Trays	USB 3.2 Gen2 Ports	Isolated DIO	Notes
ECX-3000-PoES	5 × 2.5G	4	4	6	16	Standard model with 5 LAN ports, including 4 PoE+ ports.
ECX-3025R	8 × 2.5G	4	2	6	16	Enhanced model with 8 LAN ports, including 4 PoE+ ports.
ECX-3000-PoER	5 × 2.5G	4	4	6	16	Similar to ECX-3000-PoES with rugged enhancements.
ECX-3000-PoE	5 × 2.5G	4	4	6	16	Base model with PoE+ support.
ECX-3071XR	2 × 10G	5 × 2.5G	4	6	16	High-speed model with additional 10G LAN ports.
ECX-3071X	2 × 10G	5 × 2.5G	4	6	16	Similar to ECX-3071XR without rugged enhancements.

🔹 Model 2: ECX-3000 PEG Series

Ordering Information:

Model	PCIe Slots	LAN Ports	PoE+ Ports	SSD Trays	USB 3.2 Gen2 Ports	Isolated DIO	Notes
ECX-3800 PEG	4	2 × 2.5G + 2 × 10G	4	4	6	32	High-performance model with expanded PCIe slots and 10G LAN support.
ECX-3600 PEG	3	2 × 2.5G + 1 × 10G	4	4	6	32	Mid-range model with balanced features.
ECX-3400 PEG	2	2 × 2.5G	4	4	6	32	Compact model with essential features.
ECX-3200MX PEG	1	4 × M12 2.5G	4	2	6	32	Rugged model with M12 connectors for industrial applications.
ECX-3200 PEG	1	4 × 2.5G	4	2	6	32	Entry-level model with basic expansion capabilities.
ECX-3100 PEG	1	2 × 1G	0	2	6	16	Basic model suitable for less demanding applications.

🔹 Vecow ECX-3000 AI Series

Model	LAN Ports	PoE+ Ports	SSD Trays	AI Accelerator	Notes
ECX-3000-2G AI	1 × 2.5G	0	4 × M.2	Hailo-8™	Compact model with single LAN port, suitable for applications with minimal networking requirements.
ECX-3000-2R AI	1 × 2.5G	0	2 × 2.5″ SATA	Hailo-8™	Features 2.5″ SATA SSD trays for applications requiring traditional storage solutions.
ECX-3000-4G AI	3 × 2.5G	0	4 × M.2	Hailo-8™	Offers multiple LAN ports for enhanced connectivity in network-intensive applications.
ECX-3000-4R AI	3 × 2.5G + 1 × 1G	0	2 × 2.5″ SATA	Hailo-8™	Combines multiple LAN ports with traditional storage options for versatile deployments.
ECX-3000-PoE AI	4 × 2.5G PoE+ + 1 × 1G	4	2 × 2.5″ SATA	Hailo-8™	Integrates PoE+ ports to power connected devices, ideal for surveillance and IoT applications.
ECX-3000-PoES AI	4 × 2.5G PoE+ + 1 × 1G	4	4 × M.2	Hailo-8™	Offers PoE+ support with M.2 SSD trays for high-speed storage in edge AI applications.
ECX-3000-PoER AI	4 × 2.5G PoE+ + 1 × 1G	4	2 × 2.5″ SATA	Hailo-8™	Rugged model designed for harsh environments, combining PoE+ support with traditional storage.
