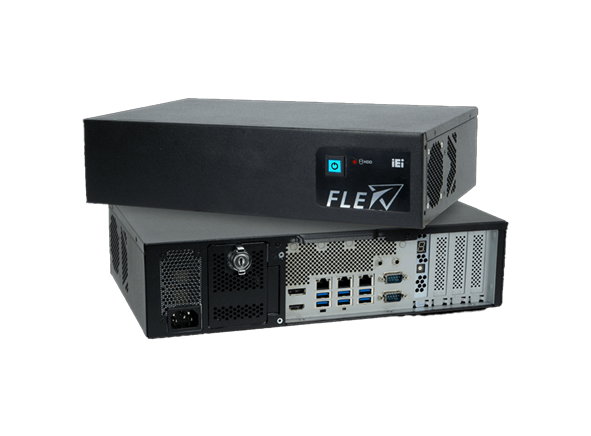

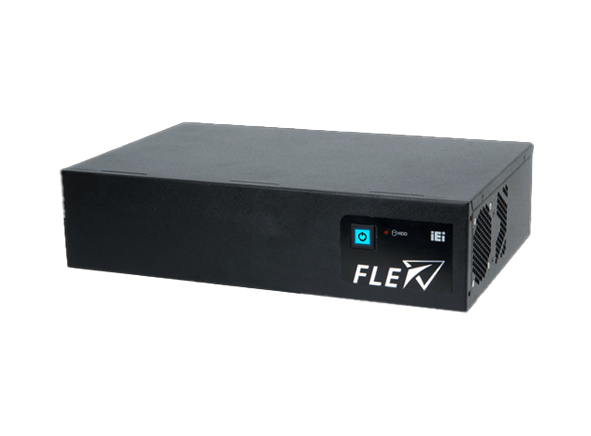

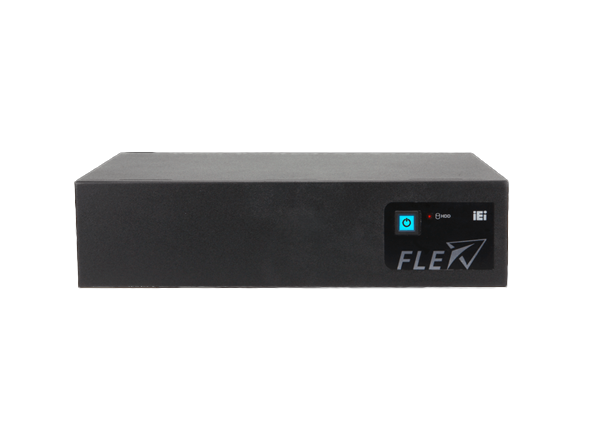

FLEX-BX210-Q470

2U Modular PC with 10/11 th Generation LGA1200 Intel® Core™ i7/i5/i3, Pentium® Processor



KEY FEATURES:

Supported CPUs:

  • Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
  • Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
  • Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
  • Four hot-swappable HDD/SSD bays with RAID 0/1/5/10 support
  • Equipped with PCIe 3.0 x4 slots and PCIe 3.0 x8 slots
  • 2 2280 PCIe Gen 3 x4 supporting NVMe
  • Support IEI Mustang accelerator cards

Backplane Systems Technology is proud to introduce iEi’s FLEX-BX210-Q470. This 2U rackmount computer is designed to provide cutting-edge processing technology for AI functions at the edge. Powered by 10th or 11th Gen Intel® Core™ processors, the FLEX-BX210-Q470 supports up to 10-core, 20-thread Core i9 CPU and 16GB dual-channel DDR4 memory. With high-end PCIe slots for AI accelerators and M.2 slot for NVMe storage, the FLEX-BX210-Q470 is capable of processing large volumes of complex data to drive AI functions at the edge such as face identification, vehicle recognition, and traffic analysis.

The FLEX-BX210-Q470 is also equipped with four SSD bays offering RAID 0, 1, 5 & 10 functions to ensure the security of data and efficiency of performance in handling AI computation and edge computing. The FLEX-BX210-Q470 is an AI hardware-ready system ideal for machine learning inference to help users get faster, deeper insights into their customers and business.

To sustain low internal chassis temperature for CPU, PSU, and add-on cards for better system reliability, IEI’s FLEX series features a unique ventilation design equipped with one CPU fan and three system cooling fans. The FLEX-BX210-Q470 is designed with the best thermal solution to handle the heat and noise produced by heavy workload AI systems.

In summary, the FLEX-BX210-Q470 is a powerful and reliable 2U rackmount computer that provides the necessary processing power and storage for AI functions at the edge. It is an excellent option for businesses that require a high-performance computing system for their AI applications.

Ordering Information

FLEX-BX210-Q470-i9D-R20 2U Modular box PC, Intel® 10th Generation Core™ i9-10900TE 1.8GHz (up to 4.5GHz, 10-core, TDP 35W), 16GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i7D-R20 2U Modular box PC, Intel® 10th Generation Core™ i7-10700TE 2.0GHz (up to 4.4GHz, 8-core, TDP 35W), 16GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i5C-R20 2U Modular box PC, Intel® 10th Generation Core™ i5-10500TE 2.3GHz (up to 3.7GHz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i3C-R20 2U Modular box PC, Intel® 10th Generation Core™ i3-10320 3.8GHz (up to 4.6GHz, 4-core, TDP 65W), 8GB DDR4 pre-installed memory,TPM 2.0, 350W PSU,R20
FLEX-BX210-Q470/35-R20 Barebone, 2U AI Modular BOX PC, Intel® COMET Lake, Q470 chipset, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, w/o CPU, 350W PSU, R20
