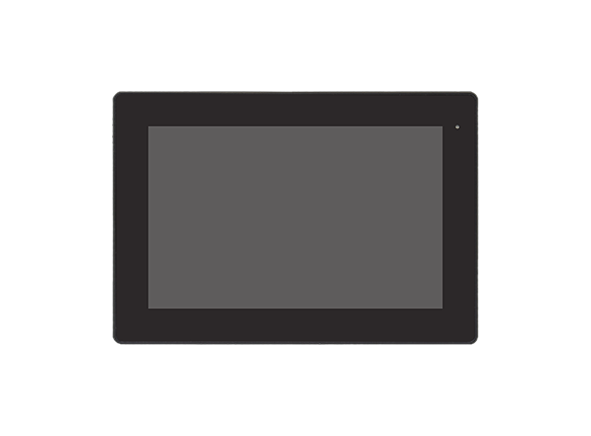

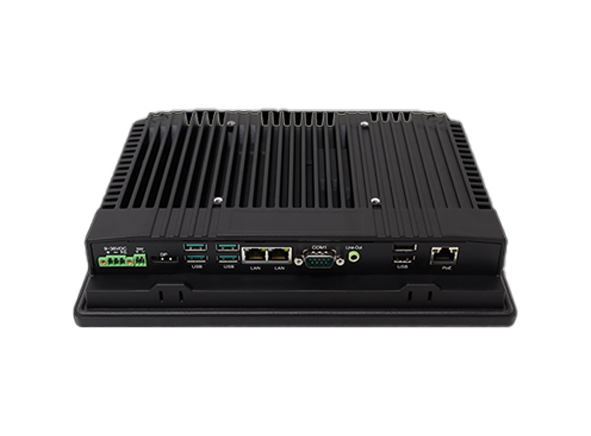

Backplane Systems Technology is excited to present Aplex’s AUHMI-910CP 10.1″ Fanless Industrial Panel PC, a modular device that delivers powerful performance with its 11th generation Intel Tiger Lake Core i3 and i5 processors. Designed for use in a wide range of environments, the AUHMI-910CP offers several customization options, including high brightness 1000 nits “sunlight readable” screens, optional AG/AR coating, optical bonding, and automated dimming.

The device features a flat front panel touch screen with an IP66 front bezel and a fanless design that makes it suitable for rugged applications, such as industrial, human-machine interface, factory automation, and hazardous areas. With two DDR4 slots that support up to 64GB memory, a projected capacitive touch, and an aluminium chassis, the AUHMI-910CPprovides a compact and durable solution for industrial applications.

Additional features include wall-mounting, embedded, small, SCADA, VESA mounting, waterproof front panel, IP66, and Windows 10 IoT Enterprise support. The device also supports TPM2.0 hardware security, expansion via full-size mini-PCIe and M.2 slots, and high brightness of 1000 nits (optional).

With multiple internet connectivity platforms, such as WiFi 6, 5G, LTE, Bluetooth, and Giga Byte LAN, the AUHMI-910CP provides reliable connectivity. It also offers an optional backup battery for extended remote working and controlled shutdown. The device has a standard operating temperature range of 0°C to 50°C, and optional wide temperature (-20°C to +60°C) versions are available.
