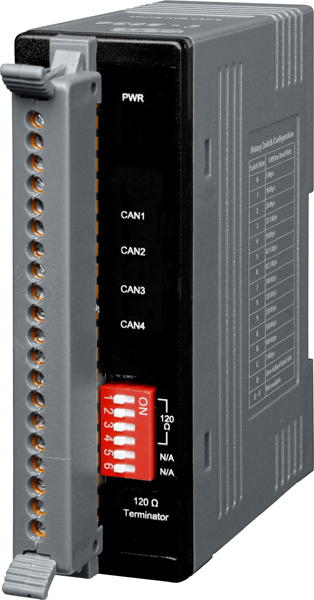

The I-2534 / I-5534-M is one kind of CAN bus switch. There are four independent CAN channels which offer a flexible design of the start or tree network topology. This new topology could resolve the complex CAN bus application, like industrial machinery, building automation, vehicle automation, and etc. Furthermore the I-2534 / I-5534-M integrates and exchanges data between different CAN network which has different baud rate. It helps users to extend the CAN network system. The I-2534 / I-5534-M could increase the maximum CAN node count in a CAN network by splitting the CAN network into several subnets. In additional, the user-defined CAN baud rate and CAN filter configuration are also supported.

See the PDF Datasheet for full product specifications

  • 4 CAN communication ports
  • Compatible with CAN specification 2.0A and 2.0B
  • Fully compatible with the ISO 11898-2 standard
  • Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
  • CAN bus filter is configurable
  • 100 data frames buffer for each CAN channel
  • Max data flow up to 2500 fps for all CAN channel
  • Selectable baud rate by rotary switch
  • Selectable 120Ω terminator resistor by DIP switch
  • LED for CAN reception and transmission
  • Support CAN network with star or tree topology
  • Extending the CAN bus distance to expand the CAN network size
  • Integrating different CAN network with different baud rate
  • I-2534 is casing with Flame-Resistant plastic case
  • I-5534-M is casing with Aluminum metallic case
  • Utility tool for CAN filter, route path, user-defined baud rate and  CAN-ID mapping (v1.10 firmware) configuration
  • Max. CAN-ID mapping data up to 32 for each CAN channel. (v1.10 firmware)

I-2534 CR:  Industrial 4-port CAN bus Switch

I-5534-M:  Industrial 4-port CAN bus Switch with Metal casing
