I-7565-H2

SKU 3570

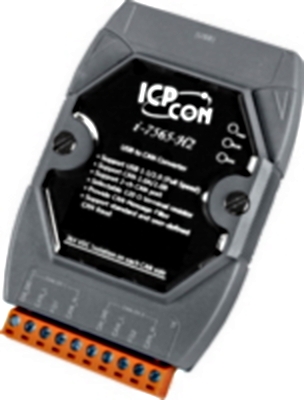

I-7565-H1 and I-7565-H2 are the high performance intelligent USB to CAN converters with one and two CAN channels separately. They provide faster CAN bus communication performance than I-7565. Both I-7565-H1 and I-7565-H2 support CAN2.0A/2.0B protocol and different baud rates from 5 Kbps to 1 Mbps. The important feature of I-7565-H1/H2 is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565-H1/H2 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN bus network easier and quicker by applying I-7565-H1/H2. The application fields can be CAN bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.

  • RoHS Design
  • Fully compliant with USB 1.1/2.0(Full Speed)
  • Fully compatible with the ISO 11898-2 standard
  • Support both CAN2.0A and CAN2.0B
  • No external power supply (powered by USB)
  • Integrated with one or two CAN bus channels
  • Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
  • Support CAN bus acceptance filter configuration
  • Time-stamp of CAN message with at least ±1ms precision
  • Support firmware update via USB
  • Provide utility tool for users module setting and CAN bus communication testing conveniently
  • Provide API library for users’ program development easily
  • Provide “Hardware Serial Number” to protect users’ program
    (For FW v1.04 and libary v1.07 or newer) (NEW)
  • Provide “Listen Only Mode” function
    (For FW v1.05 and Utility v1.09 or newer)
    (NEW)
  • Provide “CAN Error Frame” Information
    (For FW v1.07 or newer) (NEW)
  • Provide “Adjustable Bit-Timing of CAN Baud (Tseg2)” function
    (For FW v1.07 or newer) (NEW)
  • Increase HWSendTimer Number from 1 set to 5 sets and add “AddMode” and ”AddVal” parameter for HWSendTimer
    (For FW v1.05 or newer) (NEW)
  • Add “User Defined ISR” interrupt function
    (For API v1.08 or newer) (NEW)
  • Add Driver Signature Certificate for Win7 x64 platform in driver v1.2
  • Provide PWR / RUN / ERR indication LED
  • Built-in jumper to select 120 ohm terminal resister
  • Max data flow for CAN Channel: 3000 fps ( depends on users’ PC hardware performance )
  • The CAN buffer is 256 data frames for I-7565-H1 and 128 data frames in each CAN port for I-7565-H2.
  • Watchdog inside
  • Driver supported for Windows 2000/XP, Win7(32 & 64 bit), Linux and WinCE (available soon)

Note: We have verified to drive 100 CAN nodes at the same time via one CAN port of I-7565-H1/H2.

I-7565-H2 CR: High Performance Intelligent USB to 2-port CAN bus converter (RoHS)
Include Cable: CA-USB18(1.8M Cable)x1
