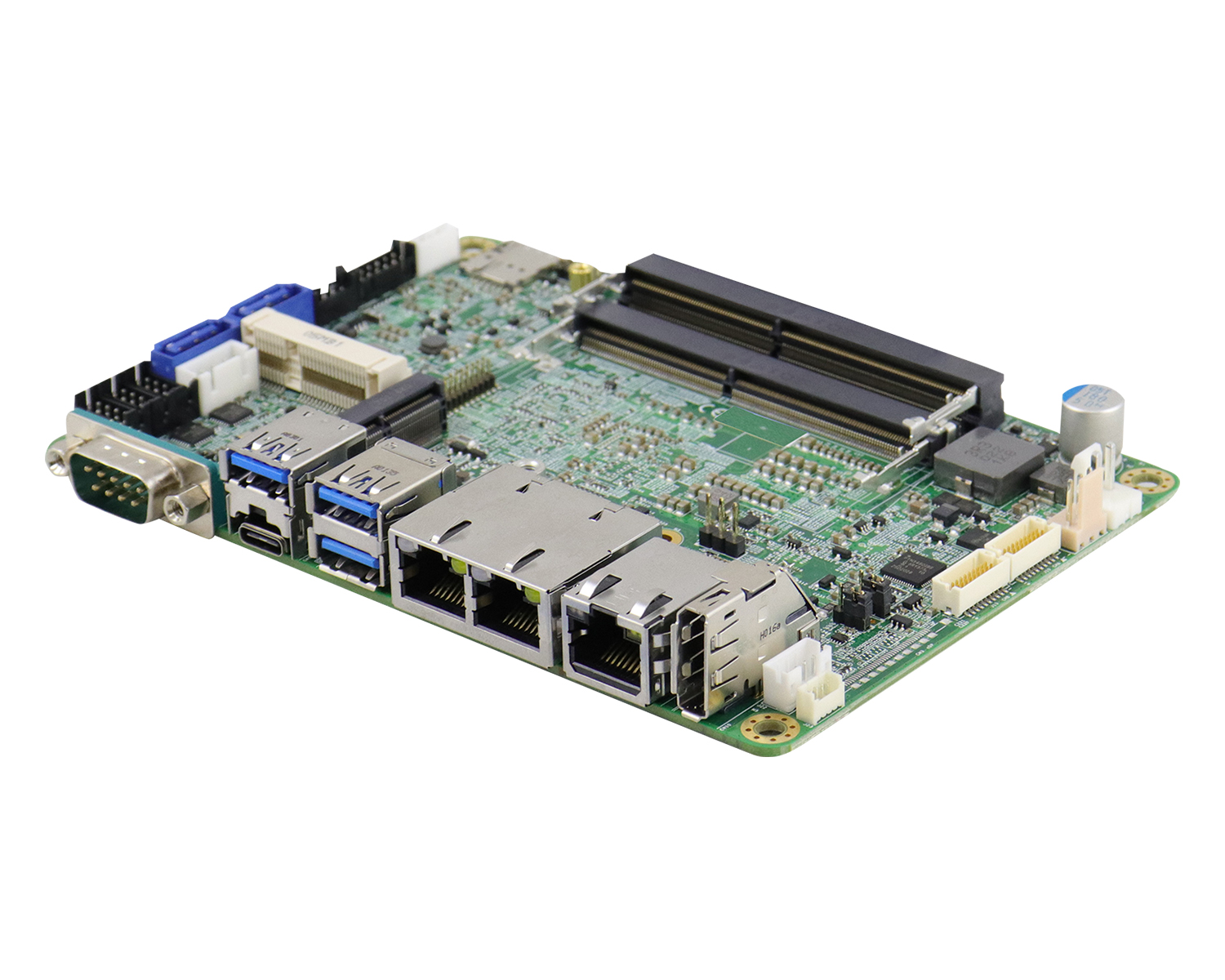

IB836

3.5-inch single board computer powered by robust Intel® Atom® x6000 Series (formerly Elkhart Lake) processors.

Key Features:

  • Onboard Intel® Atom® x6000 Series processor
  • 2x DDR4-3200 SO-DIMM, Max.32GB, supports IBECC
  • Supports 2x DisplayPort (DP and Type-C), eDP or 24-bit dual-channel LVDS
  • 3x Intel® PCI-E GbE LAN
  • 2x USB 2.0, 4x USB 3.1, 2x SATA III
  • 1x M.2 sockets (E-Key), 1x Mini PCI-E slot (Full-size)
  • Watchdog timer, Digital I/O, TPM (2.0), mSATA (Share with SATA port)
  • Wide-range operating temperature from -40°C to 85°C
IB836F-6425E Intel® Atom® x6425E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), LVDS,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
IB836FE-6425E Intel® Atom® x6425E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), eDP,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
IB836F-6413E Intel® Atom® x6413E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), LVDS(24-bit LVDS Dual-channel), mSATA, M.2, EuP/ErP,9V~36V DC-in, wide temp support
IB836FE-6413E Intel® Atom® x6413E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), eDP,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
IB836F-6211E Intel® Atom® x6211E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), LVDS,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
IB836FE-6211E Intel® Atom® x6211E, 3.5-inch Disk Size SBC w/ 3x GbE LAN, 2x DisplayPort (DP connector& Type-C), eDP,mSATA, M.2, EuP/ErP, 9V~36V DC-in, wide temp support
HSIB836-X-A Heatsink for IB836
HSIB836-X-1 Heat spreader for IB836
IB76A-2 Cable kit w/ USB, COM, Power, SATA + Power
