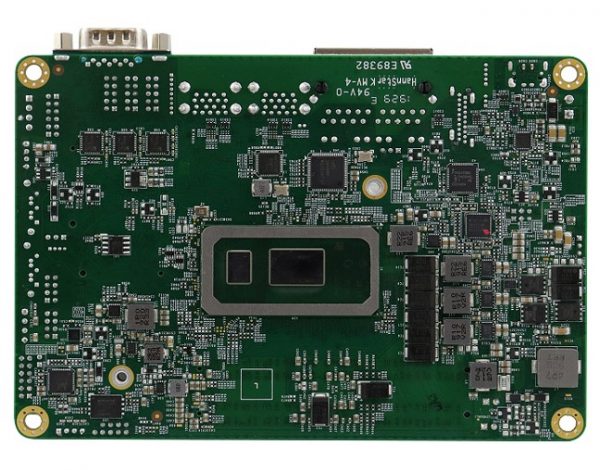

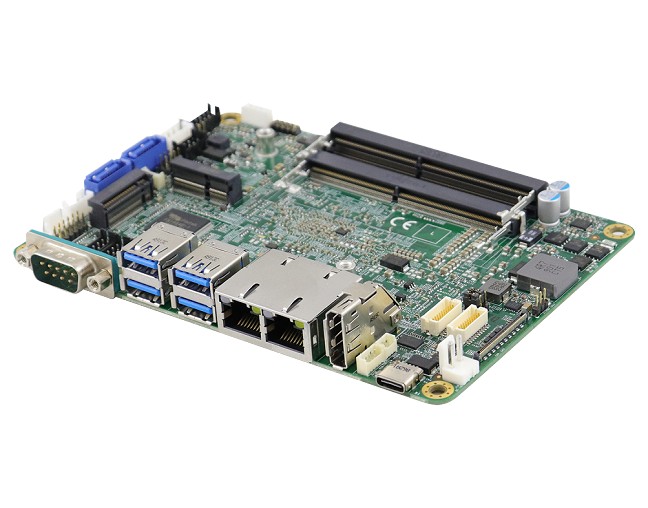

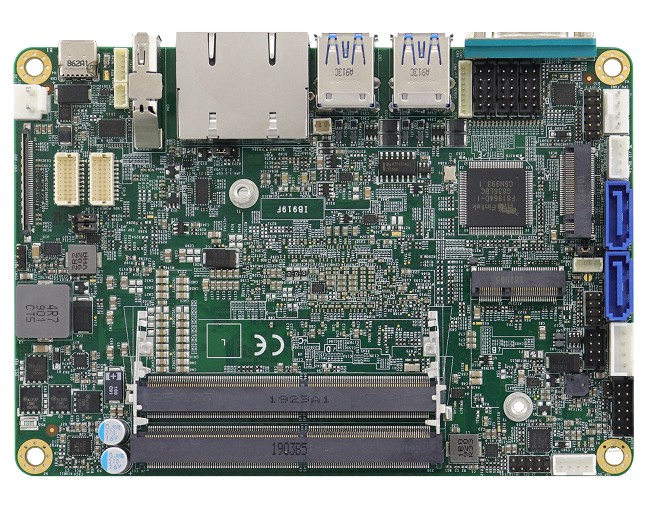

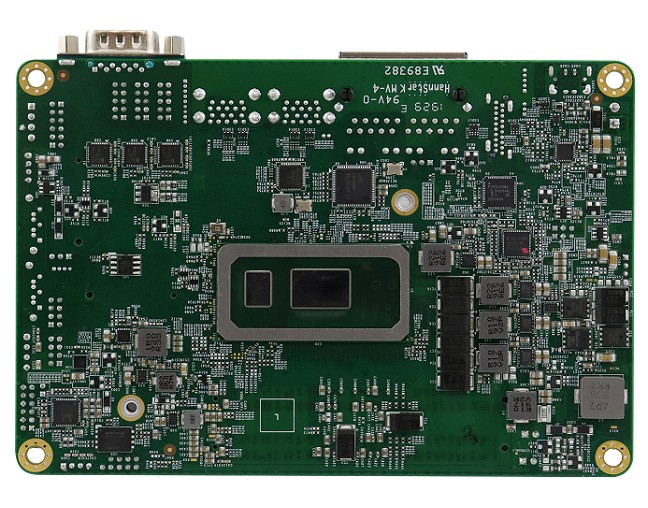

IB919

The IB919 3.5-inch single board computer is based on 8th Generation Intel® Core™ i7/i5/i3 and Celeron® 4000 processors (codenamed Whiskey Lake-U) built on a further refined 14nm++ manufacturing process, offering greater computing and graphics performance than the previous generation. IBASE expands its portfolio of long-term available products with the launch of the IB919 3.5-inch SBC equipped with USB Type-C, 9V~24V wide-range DC input and optimized Thermal Design Power (TDP) of 15W that allows designers to configure systems with performance and low-power requirements. With a 15-year life cycle, the guaranteed availability ideally fits customer demands for their current and upcoming programs in smart retail, transportation, healthcare, and smart factory applications even in large field deployments.

Onboard 8th Gen Intel® Core™ i7/i5/i3/ Celeron® processor
2x DDR4-2400 SO-DIMM, Max.32GB, Non-ECC

2x DisplayPort (DP connector & Type C), eDP or 24-bit dual-channel LVDS

2x Intel® PCI-E GbE LAN

Watchdog timer, Digital I/O, TPM (2.0)

2x USB 2.0, 4x USB3.1 (Type A), 1x USB Type-C, 2x SATA III

2x M.2 sockets (M/E-Key)

The IB919 comes in two series, the IB919AF (Core™ i7-8665UE, i5-8365UE) and IB919EF (i3-8145UE, Celeron 4305UE), both of which feature up to 32GB DDR4-2400 memory in dual channel and dual Intel Gigabit Ethernet. The board drives up to three independent displays with two DisplayPort (DP & Type C) and eDP or 24-bit dual-channel LVDS interface. Peripheral and external connections are made with a wide selection of interface via two M.2 slots (M2280 & E2230) for NVMe drives and CNVi wireless connectivity, four COM, two SATA III, four USB 3.1 Gen2 (10Gb/s), two USB 2.0 and a USB Type-C connector.

The IB919 provides remote system management with iAMT (11.6), enhanced systems security using a Trusted Platform Module (TPM) chip and extended operating temperature range of 0°C to 60°C with optional thermal solutions and cable kits. It runs on both Windows 10 and Linux Ubuntu operating systems.

IB919AF-8665: 3.5″ Intel® Core i7-8665UE (1.7GHz/4.4GHz) onboard, w/ I211AT GbE LAN + I219LM GbE LAN, USB Type C (USB 3.1+DP), VGA (DispalyPort + DP or LVDS), 2x SATA III, 4x COM, 2x M.2 (M2280 & E2230), DC-in (9V~24V), Support iAMT 11.0, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS)
IB919AF-8365: 3.5″ Intel® Core i5-8365UE (1.6GHz/4.1GHz) onboard, w/ I211AT GbE LAN + I219LM GbE LAN, USB Type C (USB 3.1+DP), VGA (DispalyPort + DP or LVDS), 2x SATA III, 4x COM, 2x M.2 (M2280 & E2230), DC-in (9V~24V), Support iAMT 11.0, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS)
IB919EF-8145: 3.5″ Intel® Core i3-8145UE (2.2GHz/3.9GHz) onboard, w/ I211AT GbE LAN + I219V GbE LAN, USB Type C (USB 3.1+DP), VGA (DispalyPort + DP or LVDS), 2x SATA III, 4x COM, 2x M.2 (M2280 & E2230), DC-in (9V~24V), EuP/ErP, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS)
IB919EF-4305: 3.5″ Intel® Celeron® 4305UE (2.0GHz) onboard, w/ 211AT GbE LAN + I219V GbE LAN, USB Type C (USB 3.1+DP), VGA (DispalyPort + DP or LVDS), 2x SATA III, 4x COM, 2x M.2 (M2280 & E2230), DC-in ( 9V~24V), EuP/ErP, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS)

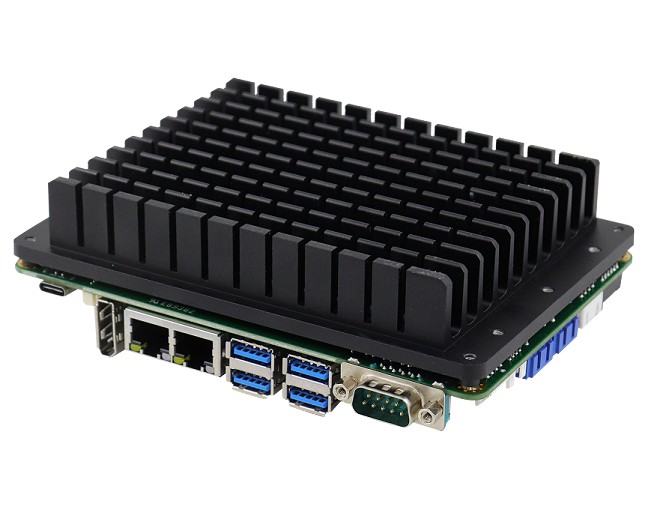

HSIB919-A: Heatsink for IB919
IB76A-1: Cable Kit w/USB, COM, Power cable, SATA+Power cable for IB919 series
