IGT-124 is an x86-based industrial-grade IoT gateway that accepts wide DC voltage input range from 8 to 35VDC and supports wide operating temperature from -25°C to 70°C. As a member of Neousys IGT series, IGT-124 is shipped as a complete system with pre-installed Intel® Atom™ Bay Trail, DDR3L RAM, data storage capacity and Ubuntu operating system.

  • Intel® Atom™ E3826 1.46GHz dual-core processor
  • Rugged, wide temperature range from -25°C to 70°C fanless operation
  • Two Gigabit Ethernet LAN ports
  • Up to two RS-232/422/485 ports and two RS-232 ports
  • Compact design with 150 mm x 100 mm footprint

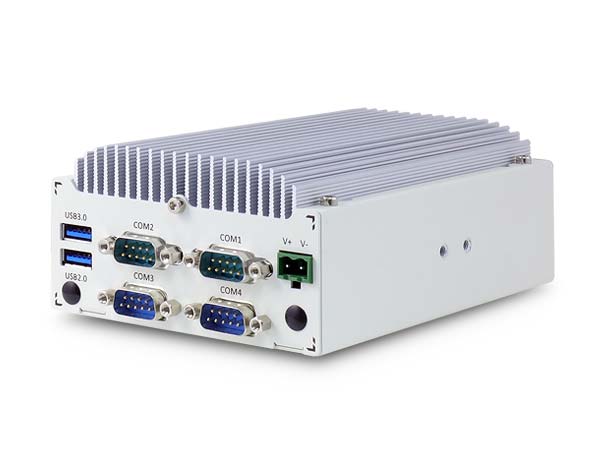

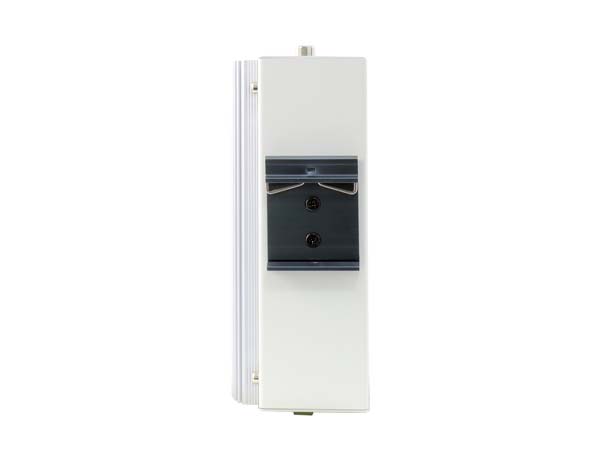

To acquire data, IGT-124 features 4 COM, 4 USB and 2 Gigabit Ethernet ports to connect to a variety of industrial devices. It also has a DVI-I connector for video output, allowing it to display dashboard statistics or aid in maintenance, if necessary. For ease of deployment, IGT-124 can choose between two mounting options, wall or DIN-rail mounting. Of the two, the DIN -rail kit provides a rugged clamping force to resist vibration and shock during operation. Communication wise, IGT-124 provides a PCIe mini socket for WiFi or LTE modules. Neousys offers an LTE connectivity solution that is pre-certified to operate on AT&T and Verizon networks.

Besides the standard hardware design, Neousys also provides a highly customizable service with IGT-124. Customizations such as CIS branding, colour bands on the chassis, preloaded IIoT software or customize a tailor-made OS image. This service not only offers greater capability and compatibility for deployment but also a more personalized solution matching your company’s image and specific needs.

As with the nature of industrial IoT applications, the gateway will be expected to and is more than capable of operating 24/7 in extreme or harsh environments for fragmented applications. The reliable hardware design and open-source software development environment make IGT-124 an effective and quick time-to-market solution that requires minimum human intervention for a variety of industrial IoT applications.

IGT-124: Industrial grade x86-based IIoT Gateway with 2 Gigabit Ethernet LAN ports, 4 COM ports, 4 USB ports

Optional Accessories
PA-60W-OW: 60W AC/DC power adapter with 12V, 5A DC output, cord end terminals for terminal block. operating temperature: -30 to 60 °C.

Optional Cellular Module
NSIO-LTE-7455: Cat. 6 LTE embedded socket modem
