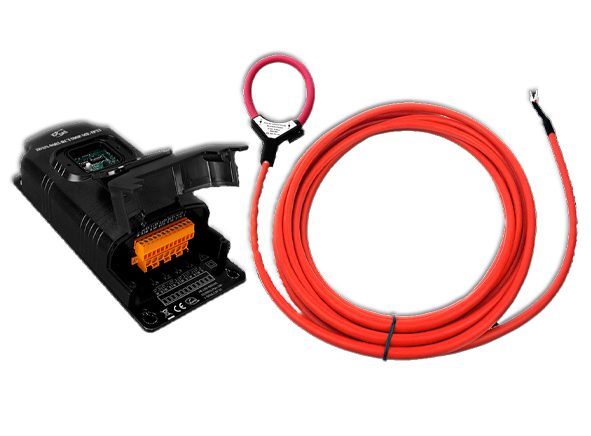

iWSN-9603-RCT500P-ME-IP33

iWSN Wireless 3-phase 2-loop power meter



KEY FEATURES:

  • 2-loop 3-phase or 4-loop single-phase AC circuits measurement
  • Provides 6 500A Rogowski current transformers (CT)
  • 3P4W, 3P3W, 3P3W 2CT, 1P3W or 1P2W wiring types
  • Bi-direction kWh measurement
  • True RMS calculations for voltage and current signals
  • Powers by the measured voltage cable; no extra power wiring is needed
  • Built-in 2A Fuse to keep the main circuit safe
  • Timestamp for each measured data by the built-in RTC
  • 3-minute history data cache for supplement
  • Uses 433MHz radio frequency and provides max. 64 wireless sub-network.
  • IP33 protection to prevent from circuit short by fire sprinkler system
  • Connector cover to avoid the exposed connector and electric shock

Backplane Systems Technology is proud to introduce ICP DAS iWSN-9603-RCT500P-ME-IP33. The ICP DAS iWSN-9603-RCT500P-ME-IP33 is an advanced wireless 3-phase 2-loop power meter designed to enhance power efficiency and streamline power monitoring in industrial environments. This device is equipped to measure two 3-phase or four single-phase AC circuits, providing six 500A Rogowski current transformers (CTs) for accurate current measurement. It supports various wiring types including 3P4W, 3P3W, 3P3W 2CT, 1P3W, and 1P2W, ensuring versatility for different setups.

One of the standout features is its ability to measure bi-directional kWh and perform true RMS calculations for both voltage and current signals, which guarantees precise energy consumption data. The iWSN-9603-RCT500P-ME-IP33 is powered directly by the measured voltage cable, eliminating the need for additional power wiring and simplifying installation. Safety is enhanced with a built-in 2A fuse to protect the main circuit.

The device incorporates a built-in real-time clock (RTC) for timestamping each measured data point and maintains a 3-minute history data cache for data integrity. Operating on a 433MHz radio frequency, it supports up to 64 wireless sub-networks, ensuring reliable communication even in crowded or shielded industrial spaces.

Designed with IP33 protection, the iWSN-9603-RCT500P-ME-IP33 is safeguarded against circuit shorts caused by fire sprinkler systems, and a connector cover prevents accidental electric shock. Its RED, RoHS, and WEEE compliance underline its adherence to environmental and safety standards.

Ideal for applications such as machine and process power efficiency improvement, power information administration, carbon emission calculation, predictive maintenance, and big data analysis of power consumption, the iWSN-9603-RCT500P-ME-IP33 offers a robust solution for modern industrial power management needs.



Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
iWSN-9603-RCT500P-ME-IP33     CR  iWSN Wireless 3-phase 2-loop power meter, includes 500A Rogowski CT (Inside diameter 55 mm; wire lead 4 m) x 6 (RoHS)
