KINO-DQM871

SKU 4210

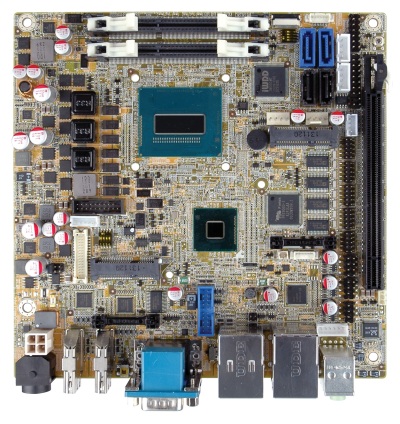

The KINO-DQM871-i1 is a Mini-ITX SBC with a 4th generation 22nm Intel® Core™ or Celeron® processor and Intel® QM87 Express Chipset. Storage on the board is handled by two SATA 6Gb/s ports, two SATA 3Gb/s ports and one PCIe Mini socket.

The KINO-DQM871-i1 features Intelligent Platform Management Interface (IPMI) that helps lower the overall costs of server management by enabling users to maximize IT resource, save time and manage multiple systems. The KINO-DQM871-i1 supports IPMI 2.0 through the optional iRIS-1010 module.

  • 4th generation Intel® mobile Core™ i7/i5/i3 or Celeron® on-board processor
  • DDR3 1066/1333/1600MHz dual-channel SDRAM
  • HDMI 1.4a compliant, triple independent display supported
  • 3D micro-architecture enhancements support DX11.1, OCL 1.2 and OGL3.2
  • Rich media acceleration for hardware decode and encode acceleration
  • Intel® GbE LAN with Intel® AMT 9.0 support
  • High speed I/O interface for PCIe Gen 3.0 add-on card, USB 3.0 and SATA 6Gb/s supported
  • Supports dual PCIe Mini expansion for PCIe Mini device and mSATA
  • IEI Jumper-less function

KINO-DQM871-i1-i7-R10: Mini-ITX SBC supports Intel® 22nm mobile Core™ i7-4700EQ on-board processor, HDMI/VGA/LVDS/DP, AMT 9.0, dual Intel® PCIe GbE, USB 3.1 Gen 1 (5Gb/s), SATA 6Gb/s, iRIS-1010, audio and RoHS
KINO-DQM871-i1-i5E-R10: Mini-ITX SBC supports Intel® 22nm mobile Core™ i5-4402E on-board processor, HDMI / VGA / LVDS / DP, dual Intel® PCIe GbE, AMT 9.0, USB 3.1 Gen 1 (5Gb/s), SATA 6Gb/s, iRIS-1010, audio and RoHS
