MPT-3000V

SKU 4779

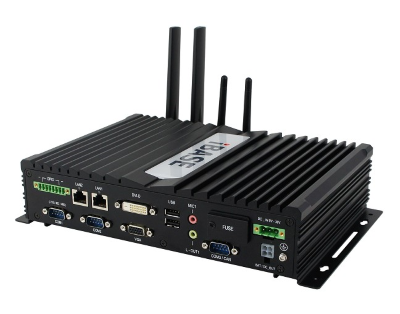

The MPT-3000V is an E-Mark certified in-vehicle fanless computer system designed to meet the ITS market demand for IoT devices. It uses a wide-range voltage GPIO interface and provide network stability, supporting dual WAN card, redundant wireless communication, 3G/4G/LTE mPCIe modules with M.2 interface and two separate SIM slots. In addition to the adjustable tri-axial G-sensor with shock protection, it offers a wide-range 12V~36V DC power input and a wide-range -40°C to 70°C operating temperature, allowing it run in demanding transportation conditions.

  • Fanless box PC for in-vehicle application
  • Dual SIM sockets support WWAN redundancy
  • Removable 2.5” device bay and CFast socket
  • Rich I/O interfaces for wireless, SSD, GPS, WWAN and add-on card expansion
  • Fully car battery power control
  • Wide-range voltage GPIO interface
  • Optional CAN 2.0B/ OBD-II function (SAE J1939)

MPT-3000VSM: MPT-3000V with MBT-3001V (Intel® E3845) w/ 2x 2GB DDR3L-1333, SSD bay, No PSU, No storage (RoHS)

Options

LTE-ANT-INT-1: 20CM 4G/3G WWAN antenna cable from M.2 to SMA Jack

LTE-ANT-INT-2: 20CM 4G/3G WWAN antenna cable from mPCIe to SMA Jack

WLAN-ANT-INT-1: 20CM WLAN antenna cable from M.2 to SMA Jack
