Backplane Systems Technology is proud to introduce the MPT-7100R, a next-generation railway computer system built for the future of intelligent transportation.
Certified to EN50155 (2021) and EN45545-2 standards, the MPT-7100R is engineered to deliver railway-grade reliability, safety, and fire protection for mission-critical rolling stock applications. Powered by the latest 13th Gen Intel® Core™ U-series processor, it provides exceptional computing performance for real-time data processing, fleet monitoring, and passenger information systems.

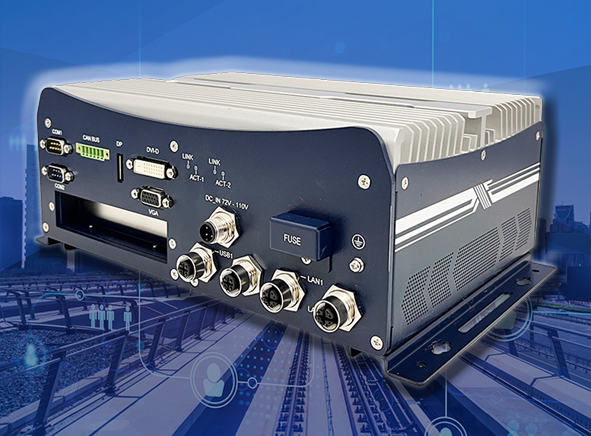

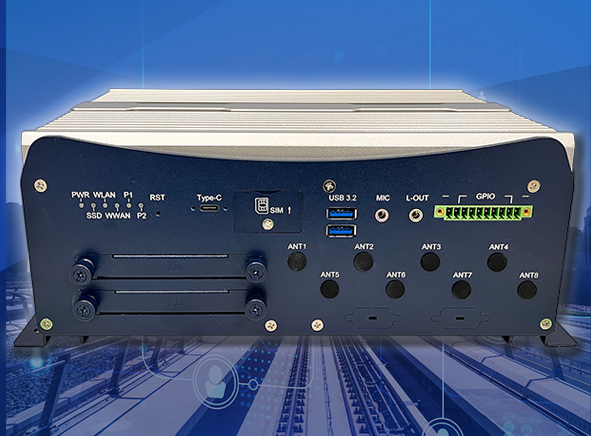

Designed with durability at its core, the MPT-7100R features a compact, fanless, wide-temperature architecture capable of operating from -40°C to +70°C. Its rugged M12 connectors secure dual GbE, USB, and power interfaces against vibration and shock, while dual SIM sockets enable WWAN redundancy to ensure continuous connectivity across rail networks.

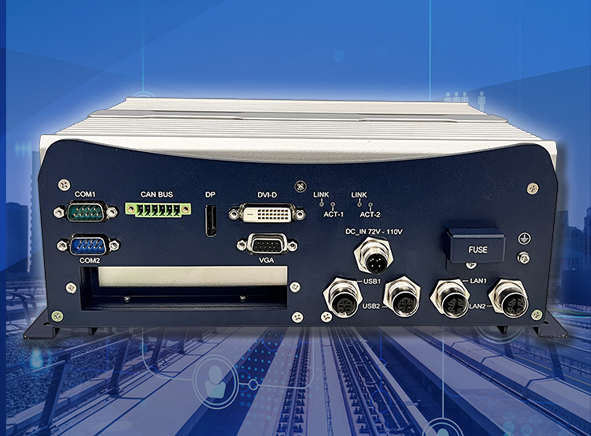

The system further supports onboard isolated CAN 2.0A/2.0B / CAN-FD interfaces, ignition power control, and a wide-range GPIO interface, making it ideal for seamless integration with existing railway infrastructure. With flexible expansion options including PCIe, M.2, and Mini PCIe slots, the MPT-7100R is scalable to meet evolving demands such as AI acceleration, advanced communication, and sensor integration.
Compact yet powerful, the MPT-7100R sets a new standard in intelligent transportation—delivering reliable performance in the toughest rail environments.
