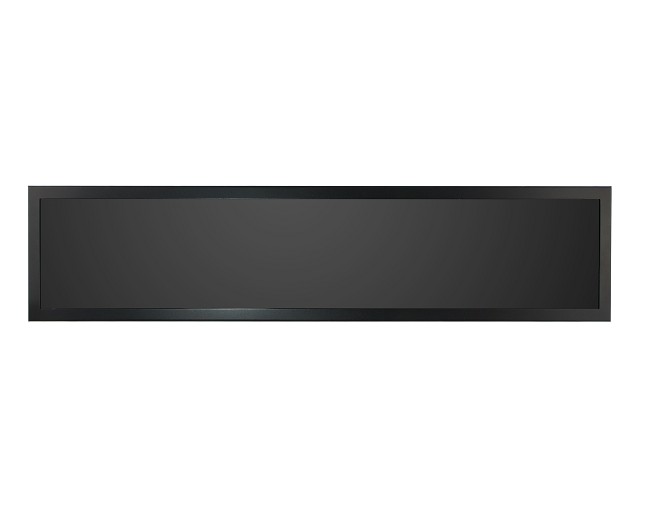

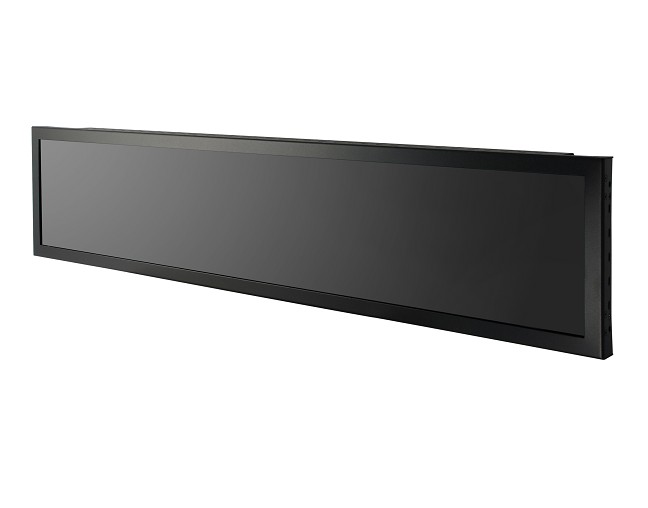

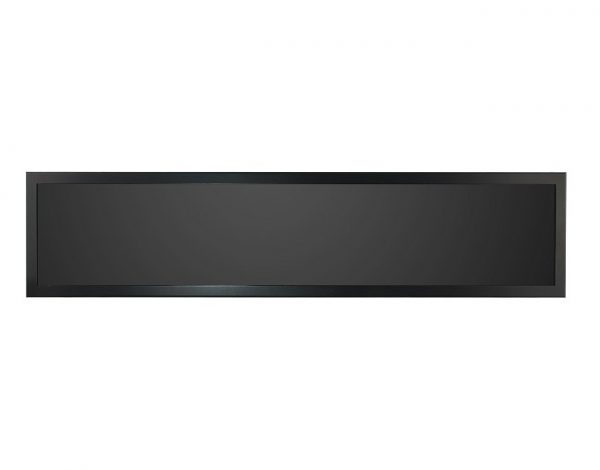

MRD-028-NRA

MRD-028-NRA is a transportation fanless embedded system designed with all-in-one bar type displayer. It comes with the Intel® Pentium® N4200 QC processor and the Intel® I210AT Ethernet controller, features HDMI, DisplayPort, RS-232/422/485 COM and USB 3.0 ports, and supports two DDR3L-1866 slots. Besides, the device passes the vibration protection compliance tests for the capability of sustaining the vibrations and shock in the railway operational environment.

  • 6” colour TFT active matrix, wide LCD with optimum resolution: 1920 x 360 & 1000 nits brightness
  • Intel® Pentium® N4200 1.1~1.25GHz Processor with Intel® HD Graphics (Gen9, 18 EUs)
  • 2x DDR3L 1866 SO-DIMM, Dual channel, Max. 8GB
  • 1x HDMI 1.4b, 1x DP 1.2
  • 2x RJ45 for Gigabit LAN
  • 1x M.2 B key(3042) for storage or 4G LTE options
  • Ruggedized, fanless and compact design

MRD-028-NRA: 27.6” All-in-one Resizing Panel PC with Intel® Pentium® QC N4200 (1.1GHz~2.5GHz, 2MB cache), 2GB DDR3L-1866 SO-DIMM, 64GB mSATA
