NRU-51V+

Rugged NVIDIA® Jetson Orin™ NX/ Xavier™ NX GMSL2 Camera Sensor Hub for Autonomous Vehicles and Teleoperation

Key Features:

  • Powered by NVIDIA® Jetson Orin™ NX or Xavier™ NX SOM bundled with JetPack 5.1.1
  • Rugged -25°C to 60°C fanless operation

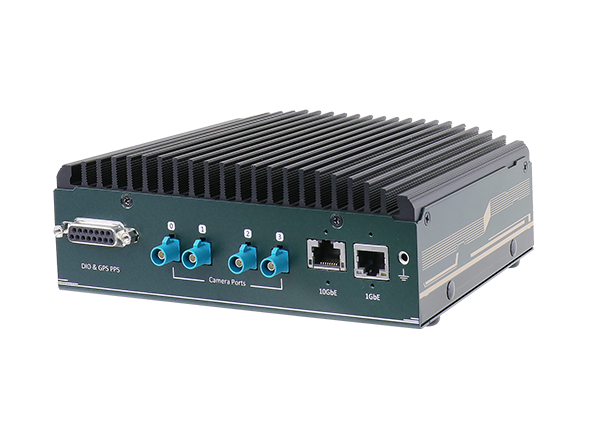

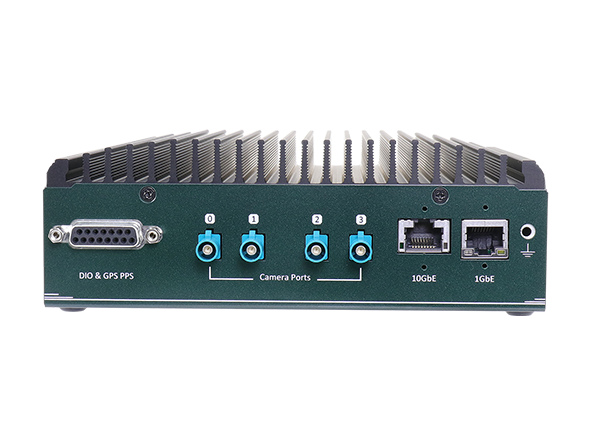

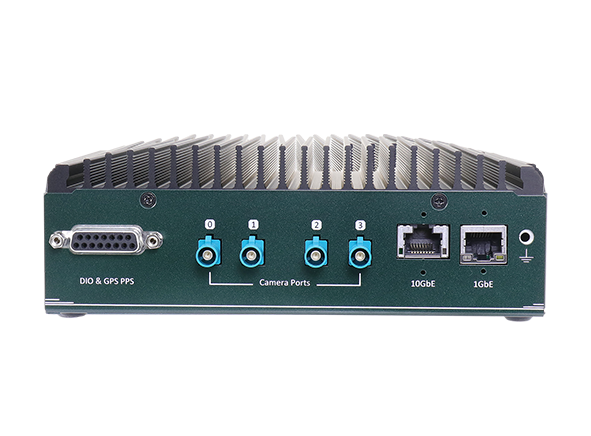

  • Support 4x GMSL2 automotive cameras via FAKRA Z connectors
  • 1x 10GBASE-T 10Gb and 1x 1GBASE-T 1Gb Ethernet port
  • 2x mini-PCIe sockets for WiFi/ GNSS/ NVMe/ CAN modules
  • 1x M.2 3042/ 3052 B key socket for 4G/ 5G mobile communication

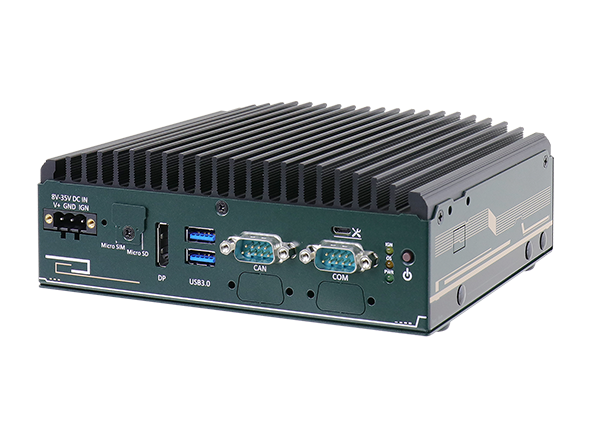

  • 1x isolated CAN 2.0, 1x configurable RS232/ 422/ 485 port, and 1x GPS PPS input
  • 8V to 35V wide-range DC input with built-in ignition power control

Backplane Systems Technology is pleased to present Neousys NRU-51V+. Neousys Technology’s NRU-51V+ emerges as a groundbreaking solution in the realm of autonomous vehicles and teleoperation, leveraging the robust NVIDIA® Jetson Orin™ NX or Xavier™ NX SOM. With JetPack 5.1.1 integration, this rugged sensor hub ensures consistent performance in extreme temperatures, ranging from -25°C to 60°C, without the need for a fan.

The NRU-51V+ is particularly adept at handling complex visual tasks, supporting up to four GMSL2 automotive cameras. These cameras, connected via FAKRA Z connectors, boast features like IP67 waterproofing, high dynamic range (HDR), and auto white balance, making them ideal for diverse lighting conditions. The device’s unique synchronization mechanism allows for near-simultaneous image capture from all cameras, crucial for precision in applications like Advanced Driver-Assistance Systems (ADAS) and autonomous navigation.

Beyond its camera capabilities, the NRU-51V+ offers a wealth of connectivity options. It includes a 10Gb Ethernet port, two mini-PCIe sockets for various modules, and an M.2 socket for 4G/5G communication. This versatility extends to its isolated CAN 2.0 and configurable RS232/422/485 port, along with GPS PPS input.

Powered by NVIDIA’s efficient Jetson Orin NX™ SOM, the NRU-51V+ delivers an impressive 100 TOPS inference performance within a 25W power envelope. This allows for real-time object detection and region-of-interest (ROI) processing directly on the unit. For teleoperation, its H.264/265 video codec efficiently streams live footage from the GMSL2 cameras over 5G networks, minimizing latency.

In essence, the NRU-51V+ is more than just an edge AI computer. It’s a versatile, high-performance sensor hub and perception unit, essential for ADAS, autonomous robots, and teleoperated vehicles, combining advanced vision capabilities and multiple I/O interfaces for comprehensive connectivity and control.



Ordering Information

NRU-51V+-JON8

Rugged NVIDIA® Jetson Orin™ NX(8GB) GMSL2 Camera Sensor Hub with 128GB M.2 2242 M NVMe

NRU-51V+-JON16

Rugged NVIDIA® Jetson Orin™ NX(16GB) GMSL2 Camera Sensor Hub with 128GB M.2 2242 M NVMe

NRU-51V-NX8

Rugged NVIDIA® Jetson Xavier™ NX(8GB) GMSL2 Camera Sensor Hub

NRU-51V-NX16

Rugged NVIDIA® Jetson Xavier™ NX(16GB) GMSL2 Camera Sensor Hub

Optional Accessories

AC-IMX390-H60

Sony IMX390 CMOS sensor camera; 1920×1080 @30fps; LFM; HFOV 63.9°; IP67+IP69K; -40°C to 85°C operating temperature; male FAKRA connector; active alignment; without lens cap

AC-IMX390-H120

Sony IMX390 CMOS sensor camera; 1920×1080 @30fps; LFM; HFOV 120.6°; IP67+IP69K; -40°C to 85°C operating temperature; male FAKRA connector; active alignment; without lens cap

AC-IMX390-H190

Sony IMX390 CMOS sensor camera; 1920×1080 @30fps; LFM; HFOV 186°; IP67+IP69K; -40°C to 85°C operating temperature; male FAKRA connector; active alignment; without lens cap

AC-AR0233-H60

Onsemi AR0233 CMOS sensor camera; 1920×1080 @30fps; LFM; HFOV 60°; IP67; -40°C to 85°C operating temperature; male FAKRA connector

AC-AR0233-H120

Onsemi AR0233 CMOS sensor camera; 1920×1080 @30fps; LFM; HFOV 118°; IP67; -40°C to 85°C operating temperature; male FAKRA connector

AC-AR0233-H190

Onsemi AR0233 CMOS sensor camera; 1920×1080 @30fps; LFM; HFOV 196°; IP67; -40°C to 85°C operating temperature; male FAKRA connector; without lens cap

AC-AR0233-H60-60FPS

Onsemi AR0233 CMOS sensor camera; 1920×1080 @60fps; LFM; HFOV 60°; IP67; -40°C to 70°C operating temperature; male FAKRA connector

AC-AR0233-H120-60FPS

Onsemi AR0233 CMOS sensor camera; 1920×1080 @60fps; LFM; HFOV 118°; IP67; -40°C to 70°C operating temperature; male FAKRA connector

AC-AR0233-H190-60FPS

Onsemi AR0233 CMOS sensor camera; 1920×1080 @60fps; LFM; HFOV 196°; IP67; -40°C to 70°C operating temperature; male FAKRA connector; without lens cap

PA-60W-OW

60W AC/ DC power adapter 12V/ 5A; cord end terminals for terminal block, operating temperature: -30 to 60°C

PA-120W-OW

120W AC/ DC power adapter 20V/ 6A; 18AWG/ 120cm; cord end terminals for terminal block, operating temperature: -30 to 70°C

Risr-M2M-mPCIe

NGFF M.2 2242 key M to mini-PCIe adapter

Wmkit-NRU-50

Wall mount kit for NRU-50 series, including wall mount brackets and screws

AccsyBx-FAN-NRU-50

Fan kit for NRU-50 series, including 92x92mm fan, fan frame, fan cable cover, and screws

Tpkit-NRU-50

3 pcs of 30x30x2 mm thermal pad for mPCIe modules with the max component height between 1.3 mm and 2.4 mm, and M.2 B key modules with the max component height between 0.7 mm and 2.0 mm

FK-FF-CABLE-7M

7M FAKRA cable for cameras with male FAKRA connector; the waterproof end is black

FK-FF-CABLE-15M

15M FAKRA cable for cameras with male FAKRA connector; the waterproof end has heat shrink tube
