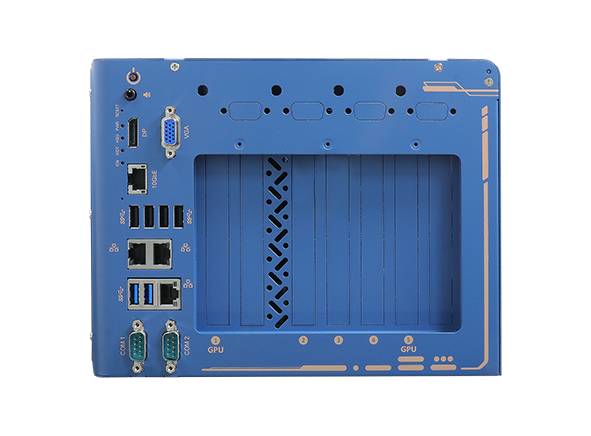

Nuvo-10208GC

Edge AI Platform Supporting Dual 350W NVIDIA® RTX GPU Cards, Intel®13th/ 12th-Gen Core™ CPU with Additional PCIe Slots & 2.5G/1G Ethernet Ports



Key Features:

  • Supports dual NVIDIA RTX™ series 350W GPUs with patent-pending locking mechanism
  • Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
  • Up to 64GB DDR5 4800 with Intel R680E PCH (2x SODIMM)
  • Three x8, Gen3 PCIe slots (x4 signal) for add-on cards
  • 2x 2.5GbE and 1x GbE and 1x optional 10GBASE-T Ethernet
  • 1x internal M.2 NVMe, 2x 2.5″ SATA trays and 1x optional NVMe tray
  • Support 8 to 48V wide-range DC input with ignition power control
  • Rugged, -25°C to 60°C operation

Backplane Systems Technology is pleased to present Neousys Nuvo-10208GC. The Neousys Nuvo-10208GC is a cutting-edge AI platform that epitomizes high performance and rugged reliability. Designed for rigorous applications such as autonomous driving, vision inspection, and surveillance, the platform leverages the prowess of dual NVIDIA RTX™ series 350W GPUs. With the capability to offer up to 97 TFLOPS in FP32, its computing power is undeniable.

Under the hood, it houses an Intel® 13th/12th-Gen CPU, boasting up to 24 cores and 32 threads. This offers a performance jump, with twice the power of Intel’s 10th or 11th Gen platforms. To ensure peak performance even in extreme conditions, the platform incorporates a tested thermal dissipation design. This cools both the CPU and the two GPUs, ensuring optimal system operation even in temperatures ranging from -25°C to 60°C.

Security and stability are paramount, especially with the hefty NVIDIA® RTX™ 40 series GPU. Hence, the Nuvo-10208GC features an innovative, patent-pending GPU locking mechanism, ensuring the GPUs are firmly anchored to the chassis. Additionally, Neousys’ patented damping bracket ensures reliability, especially for in-vehicle applications.

I/O options are plentiful, with 3x 2.5GbE/GbE ports, 6x USB3.2 Gen2 ports, and three PCIe slots for additional function expansions. It also offers optional ports for 10G Ethernet and M.2 2280 NVMe, catering to high-bandwidth and high-speed data needs.

In essence, the Nuvo-10208GC stands out as a rugged edge AI platform, seamlessly melding unprecedented GPU and CPU computing power with rugged design for diverse industrial applications.

Ordering Information

Nuvo-10208GC

Industrial-grade Edge AI Platform supporting dual NVIDIA® RTX series 350W GPU Cards, Intel® 13th/12th-Gen Core™ processor with 3x additional PCIe slots
Optional 10GbE and M.2 2280 M key tray (PCIe Gen4 x4)

Optional Accessories

AccsyBx-FAN-Nuvo10208GC

Fan assembly for Nuvo-10208GC series, 92x92x25 mm

TY-NVMe- Nuvo10208GC

M.2 NVMe 2230/42/60/80 SSD Tray

PA-600W-ENC

600W AC/DC power adapter 24V/25A; cord end terminals for terminal block, operating temperature : -20°C to 70°C.
