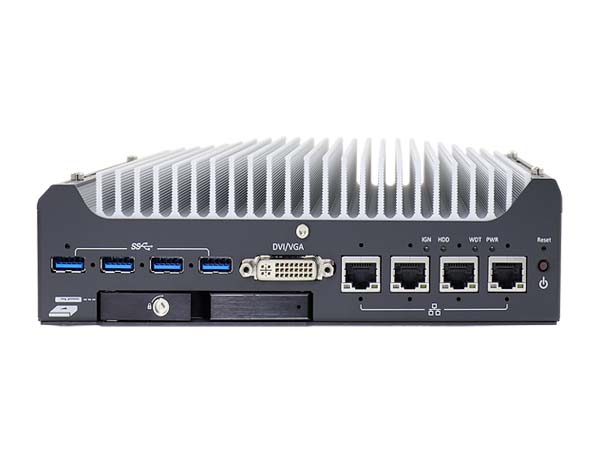

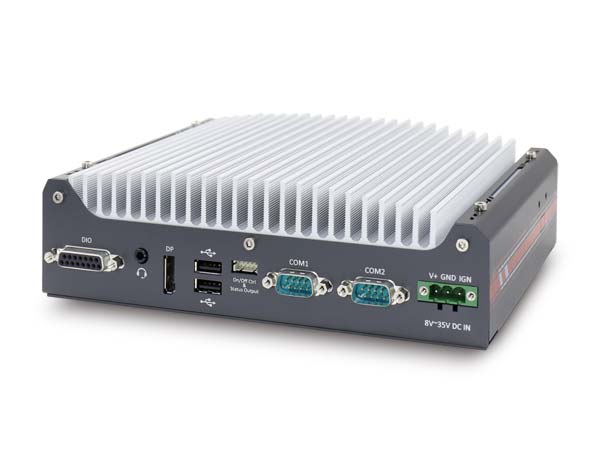

Nuvo-7531

Nuvo-7531 is one of the most compact fanless embedded controller supporting Intel® 9th/ 8th-Gen Core™ CPUs. Measuring just 212 x 165 x 63mm, it comfortably fits into confined spaces. Despite its compact size, Nuvo-7531 does not compromise on performance. Based on Intel® 9th/ 8th Gen Core™ 65W/ 35W CPUs, it can deliver more than 50% extra performance compared to the previous generation. Nuvo-7531 is a compact and powerful fanless embedded controller for a variety of industrial applications.

  • 212 x 165 x 63 mm low-profile design
  • Intel® 9th/ 8th-Gen Core™ 35W/ 65W LGA1151 CPU
  • Rugged, -25°C to 60°C fanless operation
  • 4x GbE and 4x USB3.1 Gen1 with screw-lock
  • 1x hot-swappable HDD tray and 1x M.2 2280 socket for storage
  • 4-CH isolated DI and 4-CH isolated DO
  • DVI-I + DP dual display outputs
  • Optional ignition power control

Ordering Information
Nuvo-7531(Optional ignition power control): Intel® 9th/ 8th -Gen Core™ i7/ i5/ i3 compact fanless computer with 4x GbE , 4x USB 3.1 and a hot-swappable HDD tray

Optional Accessories
PA-120W-OW: 120W AC/ DC power adapter 20V/ 6A; 18AWG/ 120cm; cord end terminals for terminal block, operating temperature : -30 to 70 °C

DINRAIL-31: DIN-rail mounting assembly for Nuvo-7531

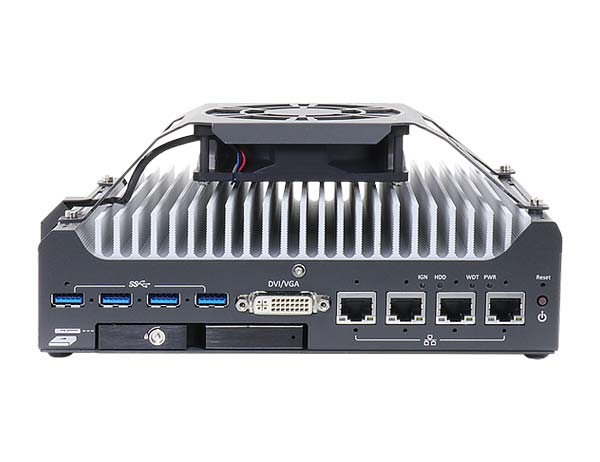

Fan kit: Fan kit with 92mm x 92mm fan for Nuvo-7531 series
