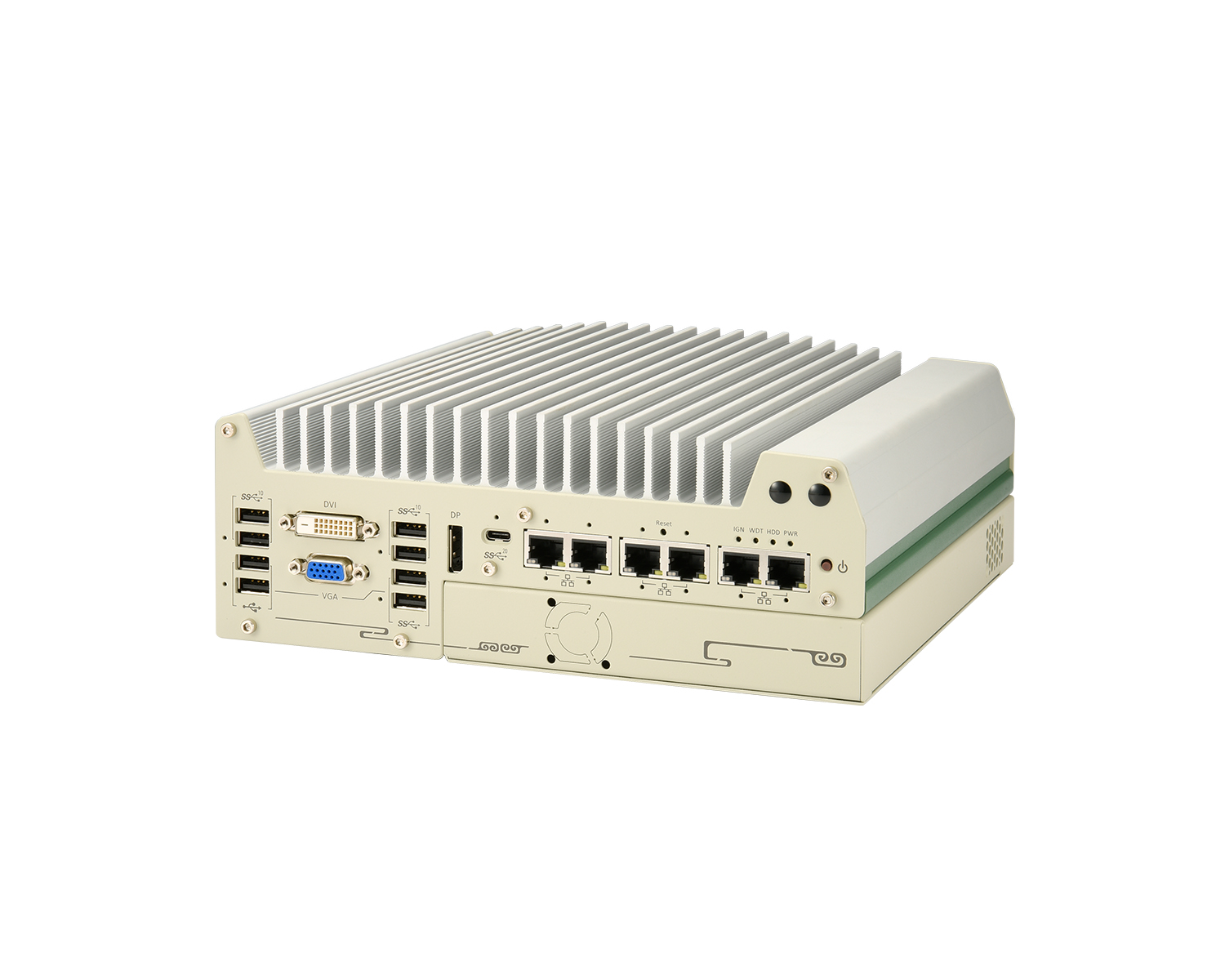

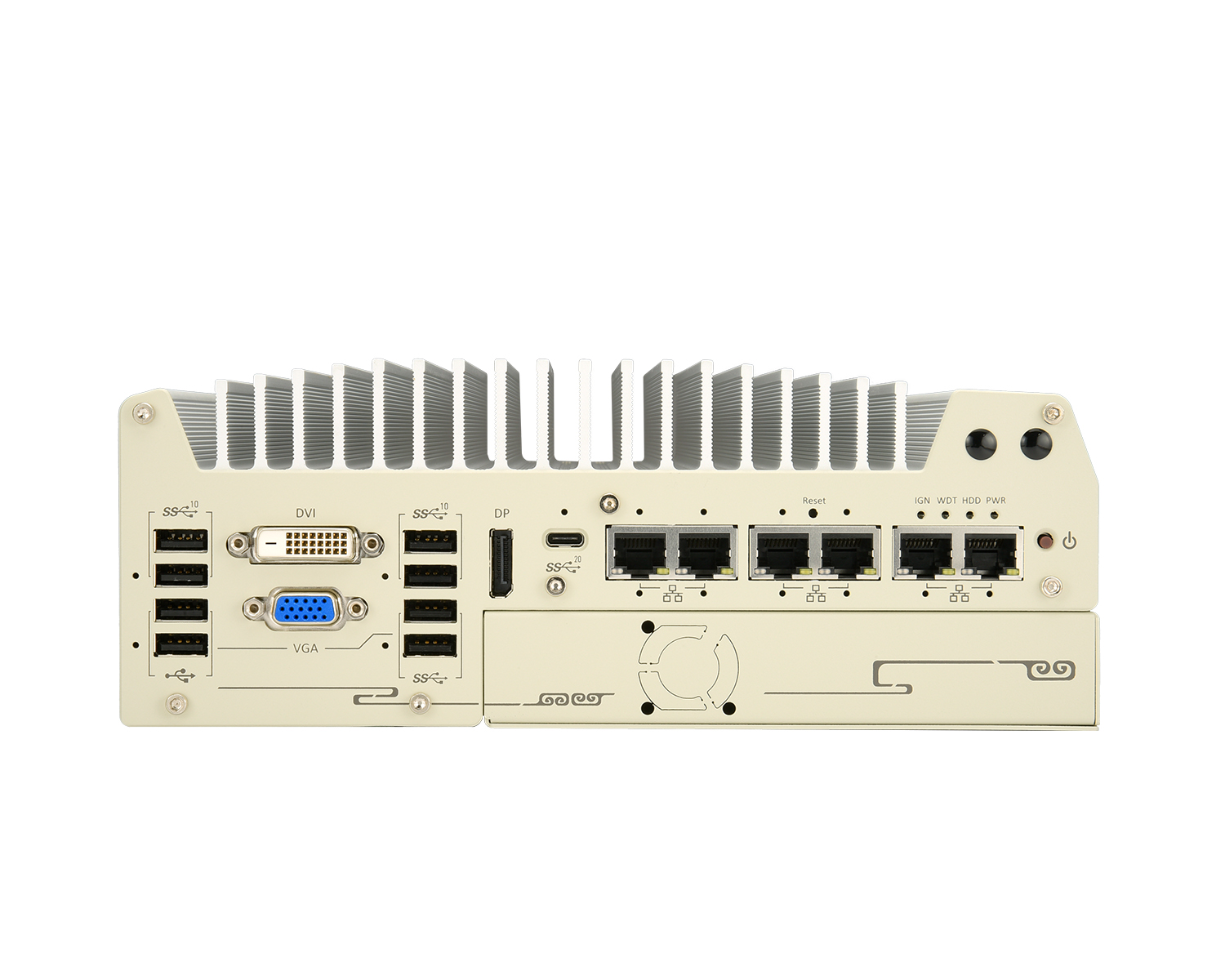

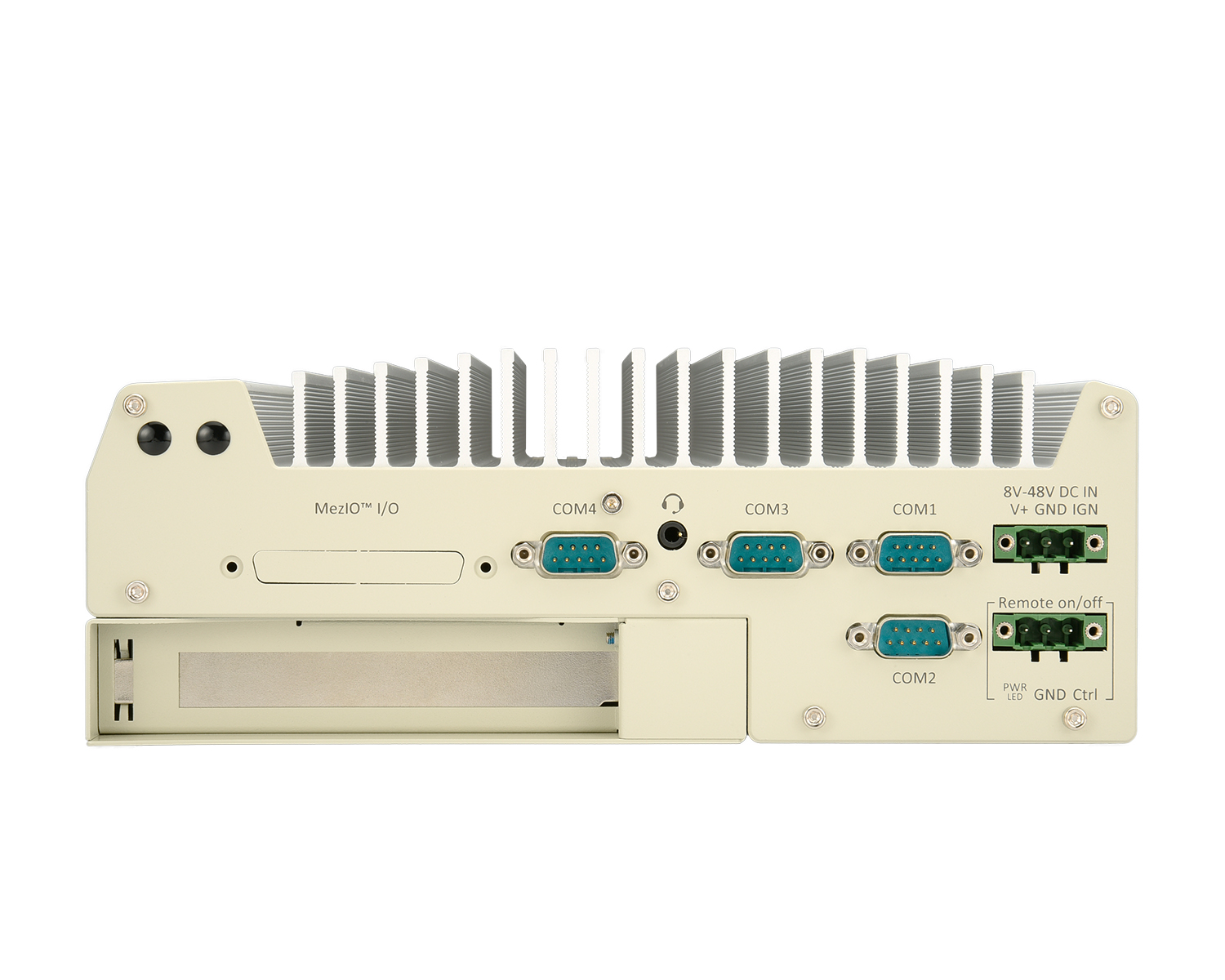

Nuvo-9000 Series

new rugged embedded computer based on the Intel® 12th-Gen Alder Lake platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core™ desktop processor comes with up to 16 cores and 24 threads and presents an incredible boost of computational performance.

Key Features:

  • Supports Intel® 12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
  • Patented Cassette for PCI/PCIe Add-On Card Accommodation
  • Rugged, -25°C to 70°C Fanless Operation
  • Up to 6x GigE Ports with Optional PoE+, Supporting 9.5 KB Jumbo Frame
  • 1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 Gen2x1 Type-A Ports
  • Supports M.2 Gen4x4 NVMe and 2x SATA Ports
  • MezIO™ interface for Easy Function Expansion
  • VGA/ DVI/ DP Triple Independent Display, Supporting 4K2K Resolution

Nuvo-9002E

Intel® 12th-Gen Core™ Rugged Embedded Computer with 2x GbE, USB 3.2 Type-C, single-slot PCIe Cassette & MezIO™ Interface

Nuvo-9002DE

Intel® 12th-Gen Core™ Rugged Embedded Computer with 2x GbE, USB 3.2 Type-C, dual-slot PCIe Cassette & MezIO™ Interface

Nuvo-9002P

Intel® 12th-Gen Core™ Rugged Embedded Computer with 2x GbE, USB 3.2 Type-C, single-slot PCI Cassette & MezIO™ Interface

Nuvo-9006E

Intel® 12th-Gen Core™ Rugged Embedded Computer with 6x GbE, USB 3.2 Type-C, single-slot PCIe Cassette & MezIO™ Interface

Nuvo-9006DE

Intel® 12th-Gen Core™ Rugged Embedded Computer with 6x GbE, USB 3.2 Type-C, dual-slot PCIe Cassette & MezIO™ Interface

Nuvo-9006P

Intel® 12th-Gen Core™ Rugged Embedded Computer with 6x GbE, USB 3.2 Type-C, single-slot PCI Cassette & MezIO™ Interface

Nuvo-9002LP

Intel® 12th-Gen Core™ Rugged Embedded Computer with 2x GbE, USB 3.2 Type-C, MezIO™ Interface & 2.5″ HDD tray

Nuvo-9006LP

Intel® 12th-Gen Core™ Rugged Embedded Computer with 6x GbE, USB 3.2 Type-C, MezIO™ Interface & 2.5″ HDD tray

PoE+ Option

Option of 802.3at PoE+ PSE for GbE port 3~ port 6

Supported MezIO™ Modules

Neousys MezIO™ module offers computer signals, power rails and control signals via a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO and ignition power control.
(Click here for details of compatible MezIO™ modules)

Optional Accessories

DINRAIL-O

DIN-rail mount assembly for Nuvo-9000 series

Dmpbr Nuvo5000_7000

Neousys’ patented damping brackets assembly for Nuvo-9000 Series

PA-160W-OW

160W AC/DC power adapter 20V/8A;18AWGx4C/120cm, cord end terminals for terminal block, operating temperature : -30°C to 70°C.
