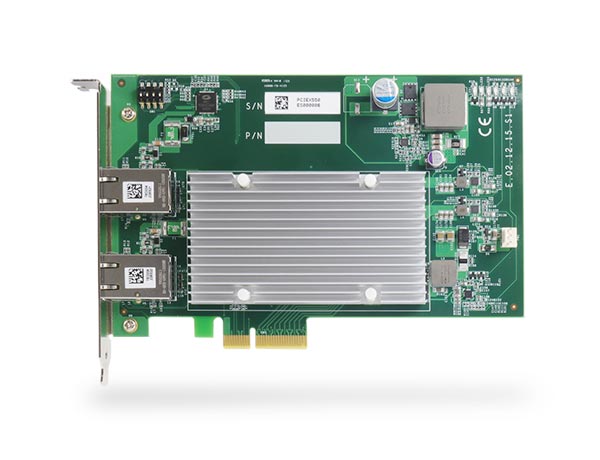

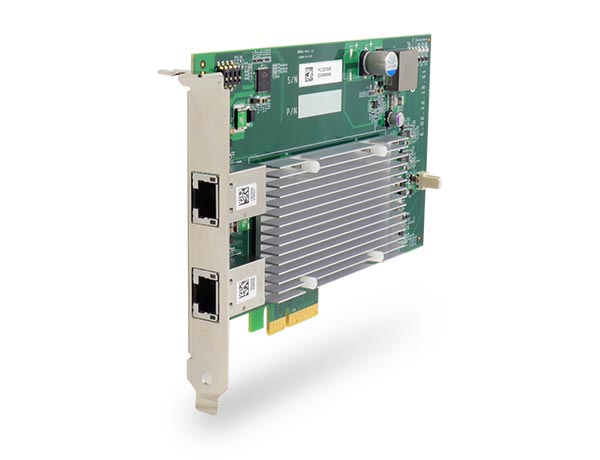

PCIe-PoE550X features 10GbE NIC incorporating Power over Ethernet (PoE+) capability. It features Neousys’ proven 802.3at PoE+ technology and refined power design to ensure optimal signal integrity over 10G PHY and maximal bandwidth. The combination of 10GbE and PoE opens the door to new applications such as high-performance WiFi access points and high-speed/ high-definition industrial cameras over single Ethernet cable.

  • Two 10 GbE ports; Intel® X550-AT2 10 GigE controller
  • Gen3 PCI Express x4 interface
  • Supports 10GbE with CAT-6/ 6a cable (Max. 100 meters)
  • Supports 10GbE 802.3at PoE+ with CAT 6a cable
  • Supports NBASE-T and 1000BASE-T with CAT-5/ 5e cable
  • Compliant with IEEE 802.3at to deliver 25.5W each port
  • Supports 15.5 KB jumbo frame, NIC teaming and IEEE 1588
  • Per-port PoE+ power on/off control via API

PCIe-PoE550X: 2-port 10GbE Network Adapter with IEEE 802.3at PoE+ Capability

PCIe-10G550X: 2-port 10GbE Network Adapter
