PICMG 1.3 Passive Backplane PXE Series

SKU 2558

PICMG 1.3 Passive Backplane Mounting holes compatiable with PCI series backplane

Features

  • PICMG 1.3 Bus Passive Backplane
  • Mounting holes compatible with PCI-14S
  • PCIe to PCI-X Bridge



Ordering Information

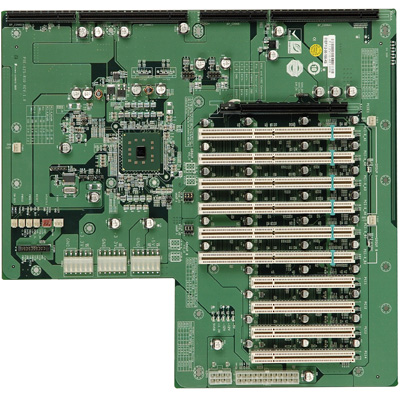

PXE-12S-R10: 12-slot backplane with 1 PCIe x16 slot, 6 PCI-X slots and 4 PCI slots

See the PDF datasheet

PXE-9S2-R10: 9-slot PICMG 1.3 backplane, 1 PCIe x16 w/ x16 slots,  3 PCIe x4 w/ x16 slots, 4 PCI, RoHS

PXE-12S-R10: 12-slot backplane with one PCIe x16 slot, six PCI-X slots and  four PCI slots

PXE-13S-R50: 13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots

PXE-19S-R40: 19-slot backplane with one PCIe x16 slot, one PCIe x1 slot and sixteen PCI slots

PXE-19S2-R10: 19-slot backplane with one PCIe x16 slot, one PCIe x1 slot and sixteen PCI slots
