PICMG 1.3 Server Grade Backplane Series

SKU 2572

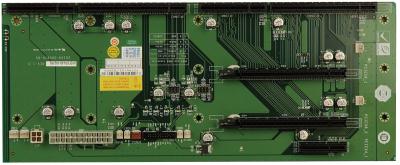

PICMG 1.3 Server Grade Backplane

Features

  • Accommodates PCIe x8 and multiple PCIe x4 add-on cards.
  • Designed for intensive data transfer applications such as server data storage and any application that requires more than one PCIe x4 or four PCIe x1 cards.
  • Multiple PCIe x4 and x1 support provides a more cost effective solution for end-users by reducing the number of systems required.



Ordering Information

SPE-4S-R10: 4-slot PICMG 1.3 backplane with 2 PCIe x16 (x8 signal) and 1 PCIe x4 slots

SPE-6S-R10: 6-slot PICMG 1.3 backplane with 5 PCIe x4 slots

SPE-9S-R10: 9 Slot PICMG 1.3 backplane with 2 PCIe x16

SPXE-9S-R10: 9-slot PICMG 1.3 backplane with 2 PCIe x16 (x8 signal) 2 PCIe x4, 2 PCI-X, and 2 PCI

SPXE-14S-R10: 14-slot PICMG 1.3 backplane with 1 PCIe x16 (x8 signal) and 12 PCIe x1

  • Accommodates PCIe x8 and multiple PCIe x4 add-on cards.
  • Designed for intensive data transfer applications such as server data storage and any application that requires more than one PCIe x4 or four PCIe x1 cards.
  • Multiple PCIe x4 and x1 support provides a more cost effective solution for end-users by reducing the number of systems required.

SPE-4S-R10: 4-slot PICMG 1.3 backplane with 2 PCIe x16 (x8 signal) and 1 PCIe x4 slots

SPE-6S-R10: 6-slot PICMG 1.3 backplane with 5 PCIe x4 slots

SPE-9S-R11: 7-slot PICMG 1.3 backplane with 1 PCIe x16 (x8 signal),  3 PCIe x4, and 3 PCI

SPXE-9S-R11: 7-slot PICMG 1.3 backplane with 1 PCIe x16 (x8 signal), 2 PCIe x4, 2 PCI-X and 2 PCI

SPXE-14S-R10: 14-slot PICMG 1.3 backplane with 1 PCIe x16 (x8 signal) and 12 PCIe x1
