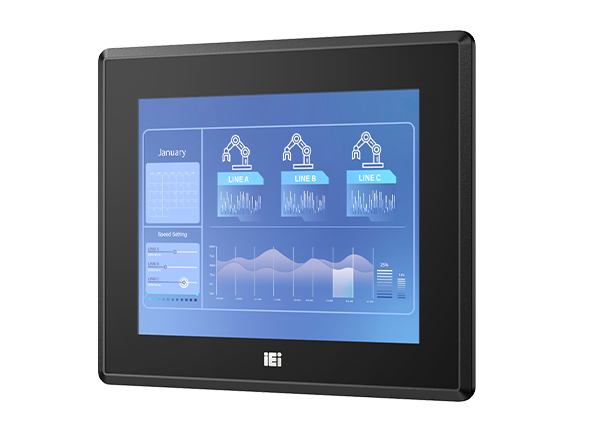

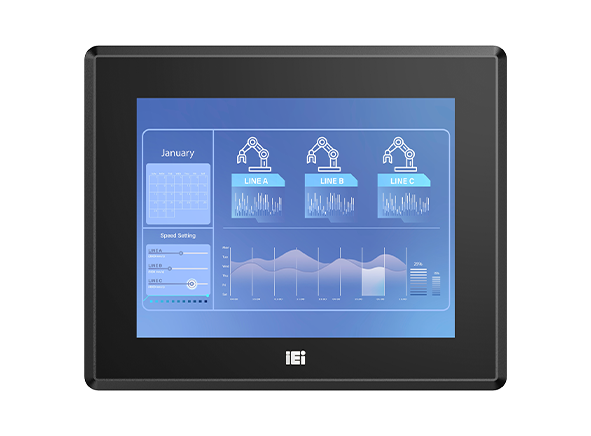

PPC2-C104-ADLP

10.4” Fanless Panel PC with Intel® Alder Lake P Processor



KEY FEATURES:

  • 12th Gen Intel® Core™ Mobile i7/i5/i3 Processors
  • PCAP with USB interface (anti-UV/AG coating)
  • Dual M.2 (M.2 M Key) support
  • Newly Designed Panel Mount Kit
  • Support Gloved and Wet Hand Operation

Backplane Systems Technology is proud to introduce iEi PPC2-C104-ADLP. The PPC2-C104-ADLP by iEi is a breakthrough in fanless panel PC technology, combining the power of 12th Gen Intel® Alder Lake-P Series processors with a sleek, narrow bezel design. This device not only offers superior performance through its asynchronous architecture but also features an anti-glare and anti-UV 10-point touchscreen. The screen’s coatings ensure clarity and longevity, making it ideal for use in bright or outdoor environments.

Designed for versatility, the PPC2-C104-ADLP is compact yet packed with extensive I/O interfaces, catering to various application scenarios. It boasts four UART ports, five USB ports, two 2.5GbE LAN ports, and one HDMI interface, providing ample connectivity options. Further enhancing its capabilities are two M.2 M key expansion slots, supporting 2242 and 2280 sizes for PCIe Gen4 x 4 full-speed signals, ensuring higher bandwidth and faster data transfer rates.

Remarkably, this panel PC is engineered for use in challenging conditions. Its capacitive touchscreen is operable with gloves, offers waterproof functionality, and eliminates false touches caused by water spray. This makes it particularly suited for industrial settings where reliability is crucial. Additionally, the IP65-rated front panel protection underscores its durability, guaranteeing dependable performance in harsh environments. The PPC2-C104-ADLP represents a blend of robust design, exceptional performance, and user-friendly features, setting a new standard for panel PCs in the industry.

Ordering Information

PPC2-C104-ADLP-i7/8G-R10 10.4″ 400cd/m² 800×600 Fanless Panel PC with 12th Generation Intel® Core™ i7-1260P Processor,8GB LPDDR4 on-board, PCAP touch,12V DC,R10
PPC2-C104-ADLP-i5/8G-R10 10.4″ 400cd/m² 800×600 Fanless Panel PC with 12th Generation Intel® Core™ i5-1240P Processor,8GB LPDDR4 on-board, PCAP touch,12V DC,R10
PPC2-C104-ADLP-i3/8G-R10 10.4″ 400cd/m² 800 x 600 Fanless Panel PC with 12th Generation Intel® Core™ i3-1220P on-board Processor,TDP 28W,8GB LPDDR4x on-board, PCAP touch,12V DC,R10
