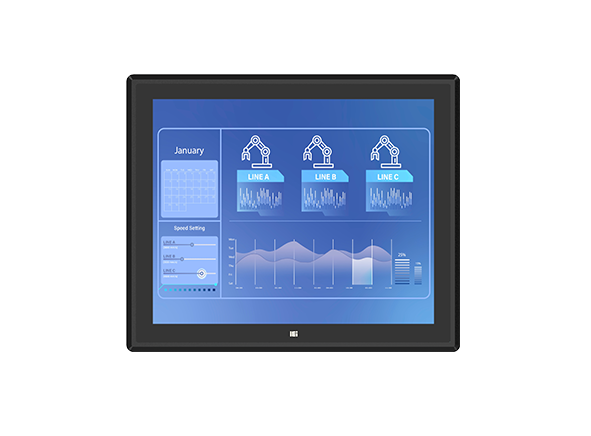

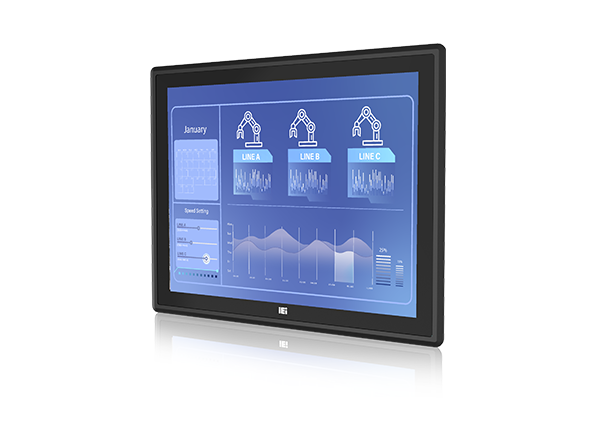

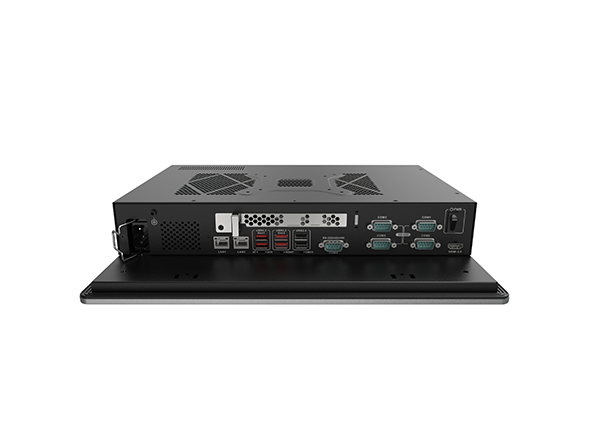

PPC2-C19-ADL

19” High performance Panel PC with 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor



KEY FEATURES:

  • 12th Gen Intel® Processors Platform
  • PCIe Gen4 x16 slot (x16 signal)
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Newly Designed Panel Mount Kit
  • New Graphical BIOS Interface

Backplane Systems Technology is proud to introduce iEi’s PPC2-C19-ADL. The iEi PPC2-C19-ADL is a high-performance panel PC, set to revolutionize heavy industrial operations. Equipped with the 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor, the panel PC supports up to 64GB DDR4 memory, enhancing CPU and graphics performance. Featuring Intel® UHD Graphics 770* driven by Intel® Xe Architecture, the PPC2-C19-ADL offers superior visual display, critical for imaging applications.

What sets the PPC2-C19-ADL apart is its exceptional durability. The ruggedized hardware safeguards the panel PC in challenging environments, while its IP65 projected capacitive touchscreen allows for wet and gloved hand operation. The touchscreen employs glass-glass PCAP technology with industrial-grade controllers, making it ideal for industries such as food processing, chemicals, and beverages.

The PPC2-C19-ADL offers a high degree of computing for AI-heavy industries. This high-performance edge AI heavy industrial panel PC is designed for demanding applications like industrial automation and machine vision. Additionally, it has a broad operating temperature range (-10°C to 60°C) and shock/vibration resistance, making it a reliable choice for harsh environments.

With its newly designed panel mount kit and new graphical BIOS interface, the PPC2-C19-ADL is not only powerful but user-friendly. Its combination of advanced technology and rugged design makes it an unrivaled choice for industrial use.

Ordering Information

PPC2-C19-ADL-P/4G-R10 19″ 350 cd/m² 1280×1024 Panel PC with 12th Intel® Pentium® Gold G7400 Processor (6M Cache, 3.70 GHz),TDP 46W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-C19-ADL-i7/4G-R10 19″ 350 cd/m² 1280×1024 Panel PC with 12th Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz),TDP 65W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-C19-ADL-i5/4G-R10 19″ 350 cd/m² 1280×1024 Panel PC with 12th Intel® Core™ i5-12400 Processor (18M Cache, up to 4.40 GHz),TDP 65W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-C19-ADL-i3/4G-R10 19″ 350 cd/m² 1280×1024 Panel PC with 12th Intel® Core™ i3-12100 Processor (12M Cache, up to 4.30 GHz),TDP 60W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
