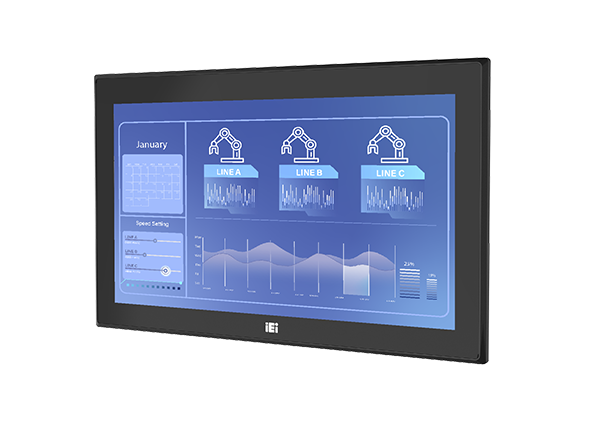

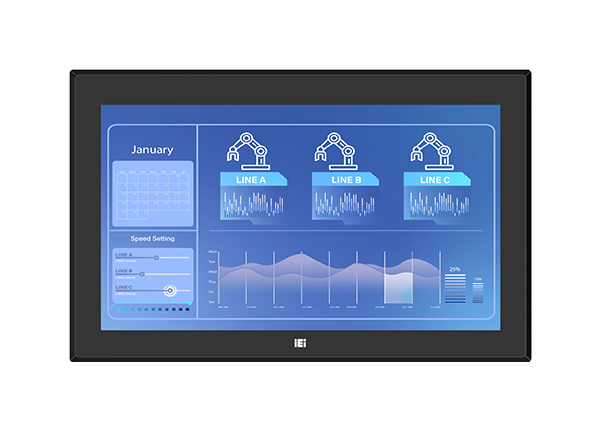

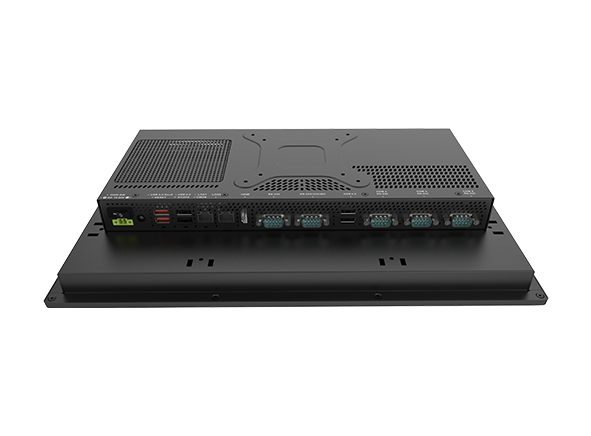

PPC2-CW15-ADL

15.6” High performance Panel PC with 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor



KEY FEATURES:

  • 12th Gen Intel® Processors Platform
  • PCIe Gen4 x16 slot (x16 signal)
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Newly Designed Panel Mount Kit
  • New Graphical BIOS Interface

Backplane Systems Technology is proud to introduce iEi’s PPC2-CW15-ADL. In the world of industrial computing, achieving both durability and performance is crucial. IEI’s PPC2-CW15-ADL showcases this balance, representing the zenith in Panel PC technology. This 15.6” high-performance Panel PC, embedded with the latest 12th Gen Intel® Core™ processors, promises robustness and rapid computations, tailor-made for heavy-duty industrial applications.

Its core strength lies in its integration with the Intel’s 12th Gen platform, including i9/i7/i5/i3 and Pentium® processors. With the capability to support an immense 64GB DDR4 memory, the PPC2-CW15-ADL guarantees swift data processing. The embedded Intel® UHD Graphics 770, with up to 32 EUs, takes graphical representation to the next level, ensuring clear, pixel-perfect displays crucial for imaging applications.

IEI doesn’t just stop at internal power. The Panel PC is fortified with an IP65-rated capacitive touchscreen, boasting anti-glare and anti-UV properties, while also being operational with gloves or even wet hands. Such features make it a formidable device for environments demanding stringent sanitation like food processing units.

To top it off, the novel graphical BIOS interface, PCIe Gen4 x16 slot, and an innovative panel mount kit underline its cutting-edge nature. In essence, IEI’s PPC2-CW15-ADL isn’t just a device, but a statement in the industrial computing domain.

Ordering Information

PPC2-CW15-ADL-i7/4G-R10 15.6″ 400 cd/m² 1920×1080 Panel PC with 12th Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz),TDP 65W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-CW15-ADL-i5/4G-R10 15.6″ 400 cd/m² 1920×1080 Panel PC with 12th Intel® Core™ i5-12400 Processor (18M Cache, up to 4.40 GHz),TDP 65W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-CW15-ADL-i3/4G-R10 15.6″ 400 cd/m² 1920×1080 Panel PC with 12th Intel® Core™ i3-12100 Processor (12M Cache, up to 4.30 GHz),TDP 60W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
PPC2-CW15-ADL-P/4G-R10 15.6″ 400 cd/m² 1920×1080 Panel PC with 12th Intel® Pentium® Gold G7400 Processor (6M Cache, 3.70 GHz),TDP 46W,4GB DDR4,HDMI Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10
  • IEI Integration
