R20IB3S-RKA2ML

SKU 4942

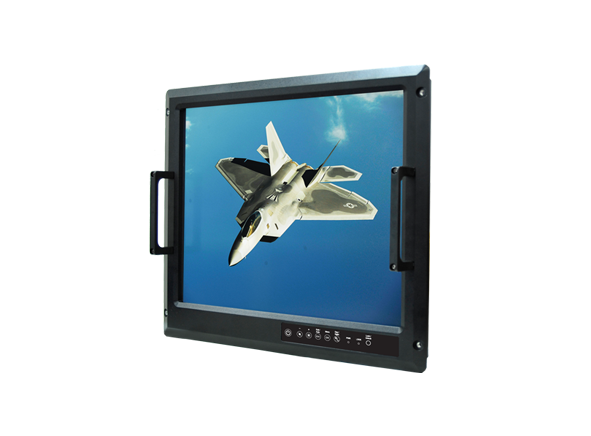

The R20IB3S-RKA2ML is a 20.1” heavy-duty industrial panel PC produced by Winmate. It features:

  • 20.1” LCD (1600 x 1200)
  • Intel® Celeron N2930 2.16GHz Processor
  • Fanless, with Anti-Corrosion Housing
  • Compliant with MIL-STD-810G/F
  • Flush Rack/Rack Mount Mechanical Design (9U)
  • Convenient On-Screen Display Controls
  • AC 110~240V Power Input Default/Isolation DC 9~36V Power Input (Optional)
  • Built-In Light Sensor for Auto Brightness Control
  • Military Grade Power Connector (MIL-DTL-38999/1)

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • 20.1” LCD (1600 x 1200)
  • Intel® Celeron N2930 2.16GHz Processor
  • Fanless, with Anti-Corrosion Housing
  • Compliant with MIL-STD-810G/F
  • Flush Rack/Rack Mount Mechanical Design (9U)
  • Convenient On-Screen Display Controls
  • AC 110~240V Power Input Default/Isolation DC 9~36V Power Input (Optional)
  • Built-in Light Sensor for Auto Brightness Control
  • Military Grade Power Connector (MIL-DTL-38999/1)

With anti-corrosion housing, a standard operating temperature range of 0°C ~ 60°C, optional wide range of -10°C ~ 70°C, and meeting MIL-STD-810F/G vibration, humidity, & transit drop standards, the R20IB3S-RKA2ML panel PC is built to endure.

Within the fanless PC sits a low-power, high-performance Intel® Celeron N2930 2.16GHz processor for consistent operation. Outside sits convenient on-screen display controls, a built-in light sensor for automatic brightness control, military-grade power connector (MIL-DTL-38999/1), and a rack mount mechanical design for easy installation and straightforward use in demanding environments.

Finally, In terms of I/O the R20IB3S-RKA2ML features a standard 1x USB 2.0, 1x USB 3.0, 2x RJ-45, 1x VGA, and optional 1x RS232 to facilitate connectivity. It also supports up to 256GB of storage (mSATA SSD, default 64GB) and 8GB of RAM (SO-DIMM DDR3 1666, default 4GB).

R20IB3S-RKA2ML:  20.1” Industrial Panel PC, with Intel® Celeron N2930 2.16GHz Processor, Anti-Corrosion Housing, and Rack Mountable Design
