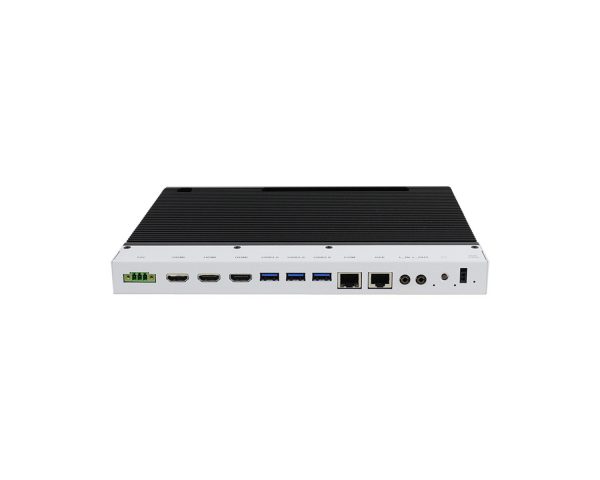

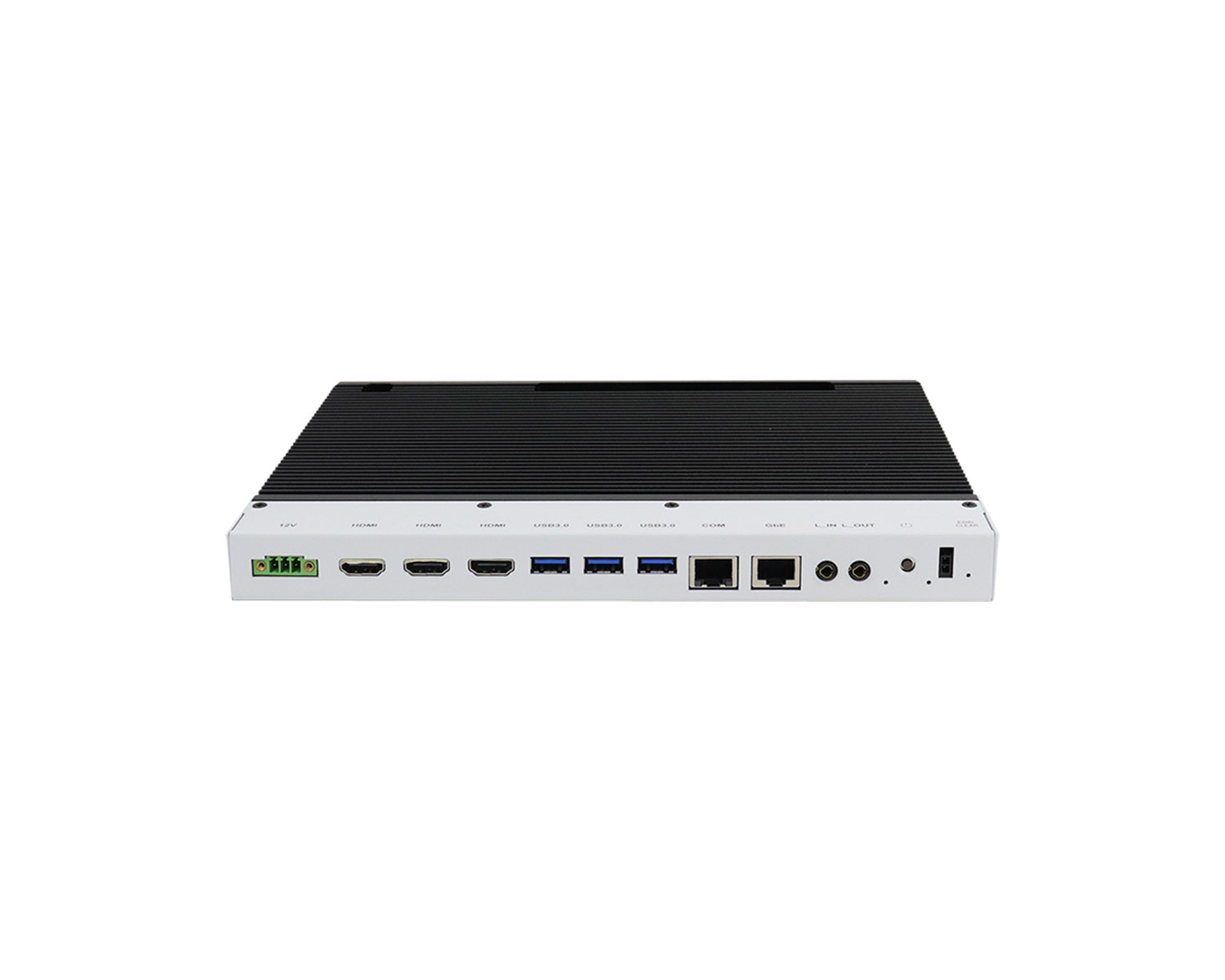

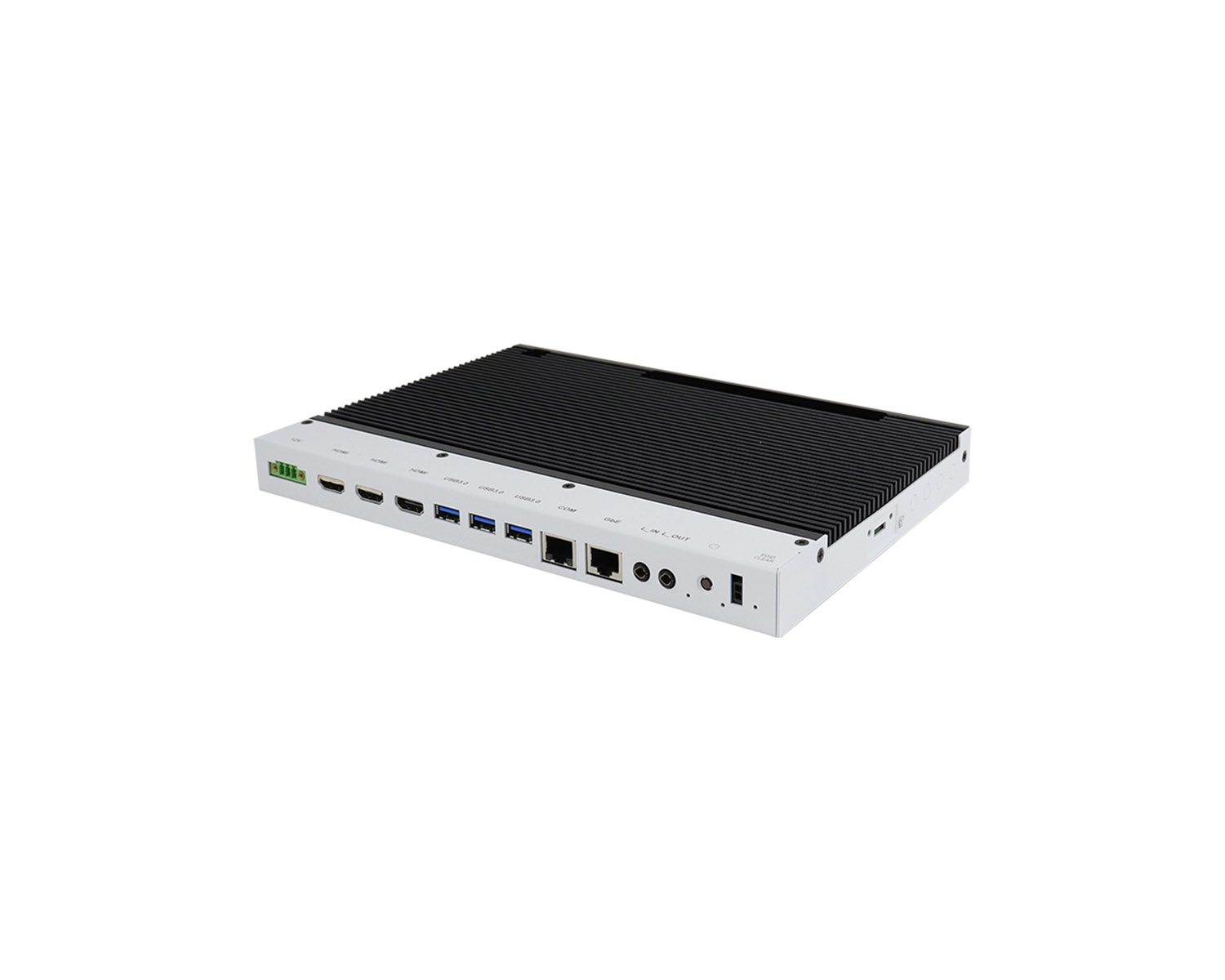

SE-103-N

a compact fanless, outdoor signage player for three HDMI displays and designed with Intel® Atom® x6000/Celeron® processors (formerly Elkhart Lake). Built for smart retail and drive-thru applications, not only does it provide an eye-catching retail experience but also helps increase foot traffic that leads to higher revenue.

Key Features:

  • iSMART Intelligent Energy-Saving & Observer Remote Monitoring Technologies
  • Intel® Atom® x6000/ Pentium® / Celeron® Processors
  • 3x HDMI 2.0b with HDMI-CEC display on/off Control Function
  • Built-in Hardware EDID Emulation with S/W Control Function
  • 2x DDR4-3200 SO-DIMM, Dual channel, Max. 32GB
  • 1x Intel® 2.5GbE LAN
  • 1x M.2 B-Key (3052) for 5G Options
  • 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or Capture Card Options
  • TPM 2.0 and Watchdog Timer
  • Industrial-Grade Robust, Fanless and Compact Design
  • Wide-Range Operating Temperature from -20°C to 70°C
SE-103-N Signage Player with Intel® Atom® x6425E (2.0~3.0GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 3x HDMI 2.0b, 3x USB, 1x LAN, 1x COM (RJ45), 60W power adaptor (Operating temperature -20°C~70°C)
SE-103-N11E Signage Player with Intel® Atom® x6211E (1.3~3.0GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 3x HDMI 2.0b, 3x USB, 1x LAN, 1x COM (RJ45), 60W power adaptor (Operating temperature -20°C~70°C)
SE-103-N13 Signage Player with Intel® Celeron® J6413 (1.8~3.0GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 3x HDMI 2.0b, 3x USB, 1x LAN, 1x COM (RJ45) and 60W power adaptor (Operating temperature 0°C~45°C)
SE-103-N10 Signage Player with Intel® Celeron® N6210 (1.2~2.6GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 3x HDMI 2.0b, 3x USB, 1x LAN, 1x COM (RJ45) and 60W power adaptor (Operating temperature 0°C~45°C)
