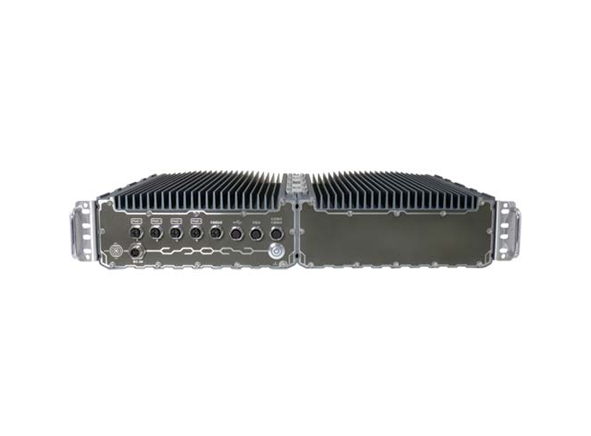

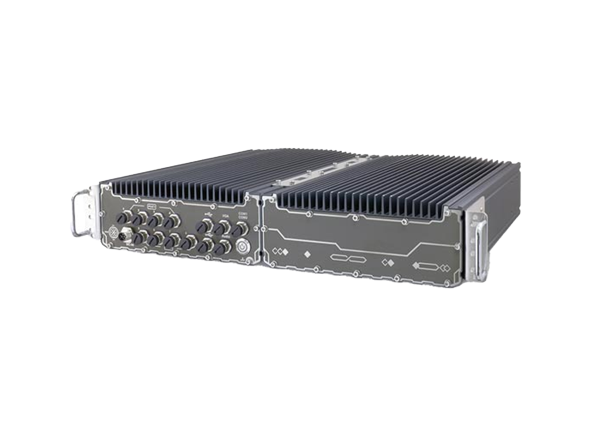

SEMIL-1748GC

IP67 Waterproof GPU Computer Supporting NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200 and Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU with All M12 Connectors

Key Features:

IP67 waterproof GPU computer with NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200

Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU

Patented waterproof 2U 19″ chassis for rack or wall-mount*

Guaranteed non-throttling GPU performance up to 62°C ambient

Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors

VGA, USB 2.0 and COM ports via M12 A-coded connectors

8~48V wide-range DC input with built-in ignition power control

MIL-STD-810G and EN 50155 certified

*R.O.C Patent No. I697759, *CN Patent Pending

Backplane Systems Technology is pleased to present Neousys SEMIL-1700GC. The SEMIL-1700GC series is one of the first inference servers in the world to be IP67-rated, waterproof, and dustproof with NVIDIA® RTX A2000, Tesla T4, or Quadro P2200 pre-installed for the most demanding situations. It marks a new degree of resilience for cutting-edge rugged AI solutions, opening a new chapter in Neousys’ book of breakthroughs. The system provides strong CPU and GPU performances for cutting-edge edge AI applications in a variety of environmental situations when coupled with an Intel® Xeon® E or 9th/ 8th-Gen CoreTM CPU. Neousys’ patented system architecture* is used in the SEMIL-1700GC series, which ensures fanless operation from -40°C to 70°C in a rack- or wall-mountable 2U 19″ enclosure.

In order to provide optimal GPU performance in high-temperature situations, the SEMIL-1700GC series has a clever thermal design to disperse the heat generated by the RTX A2000, Tesla T4, or Quadro P2200 GPU. It offers exceptional durability and watertight construction because of its corrosion-proof stainless steel/aluminium chassis with moulded o-rings and innovative fusion mechanism design. The SEMIL-1700GC series provides a range of I/O connectivities, including 802.3at Gigabit PoE+, VGA, USB, COM ports, and optional 10G Ethernet. All of these I/O connectivities use M12 connections for water-resistant and extremely durable connectivity under shock and vibration environments. Additionally, it supports 2.5″ SATA storage, 8-48V wide-range DC input with ignition power control, M.2 for NVMe SSD, and it complies with EN 50155 and MIL-STD-810G.

Rugged GPU computers’ inference acceleration enabled real-time AI inference applications at the edge, where highly harsh conditions are anticipated. The SEMIL-1700GC series shows previously unimaginable potential for implementing AI in yet-to-be-reached locations by combining potent CPU/ GPU, strong IP67 protection, genuine fanless wide-temperature operation, tough M12 connectors, and conventional 2U 19″ rack.
