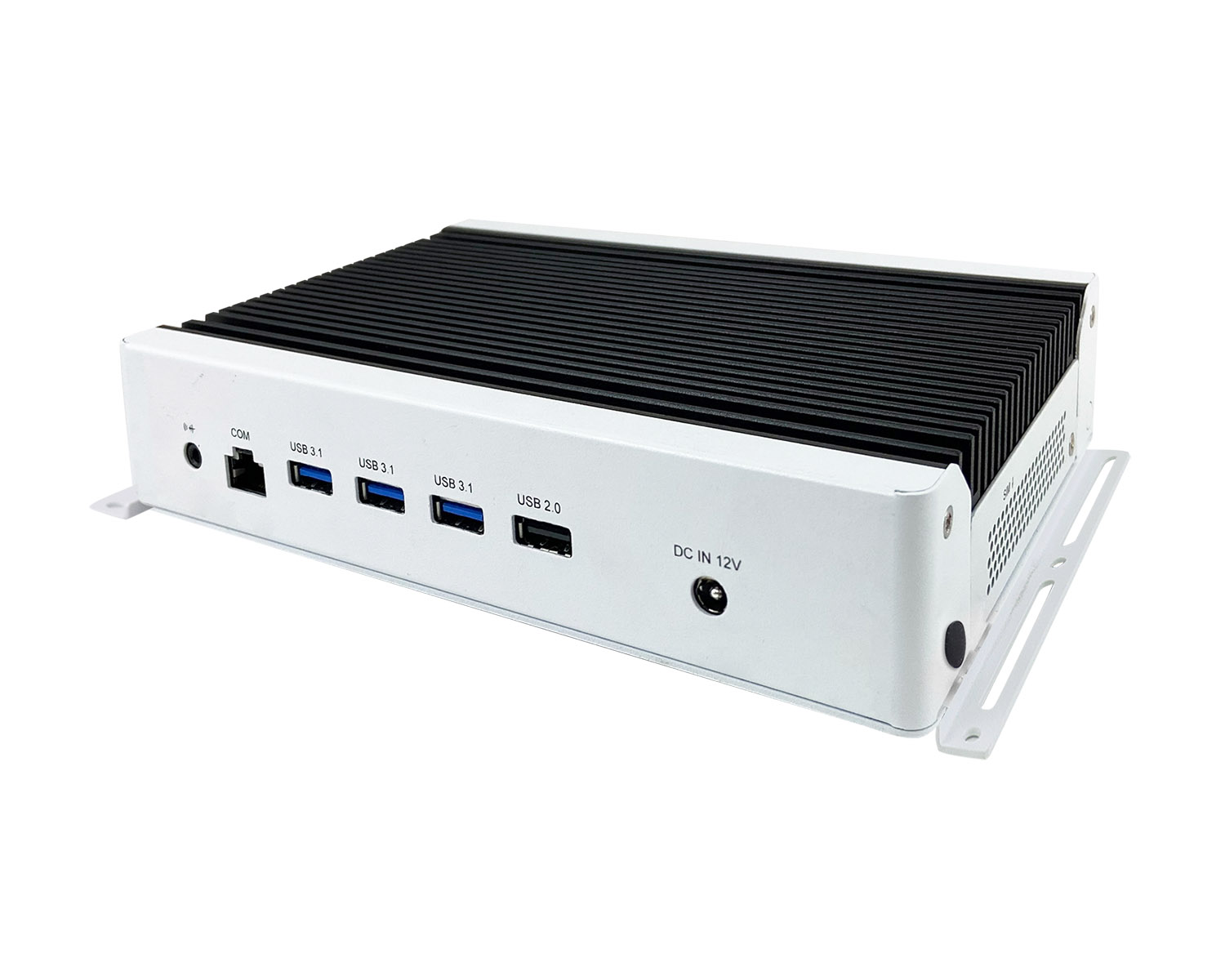

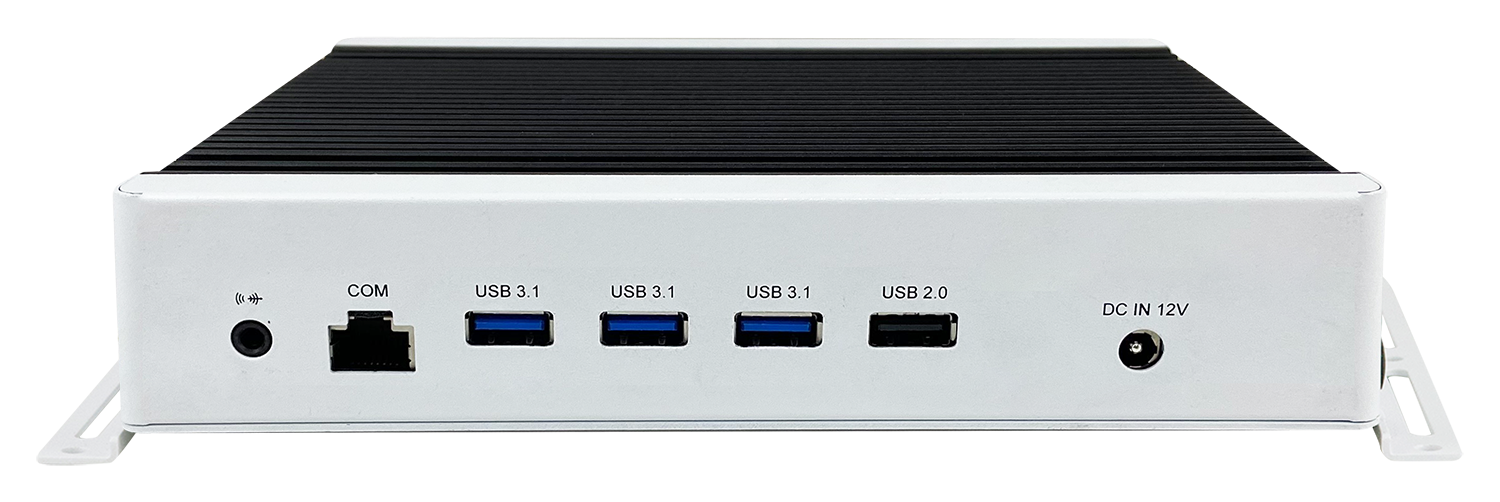

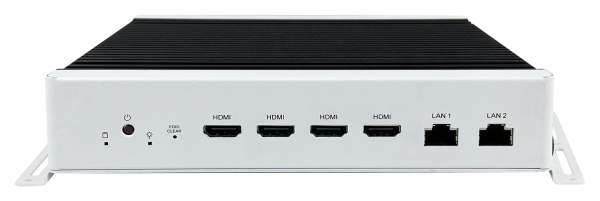

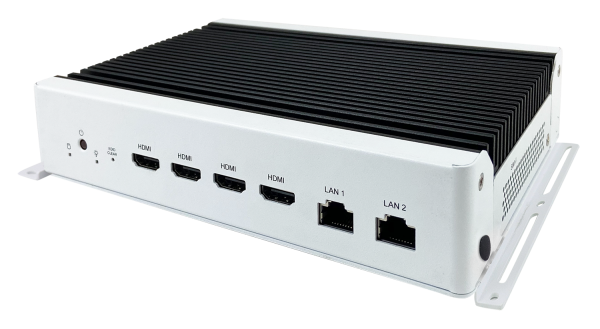

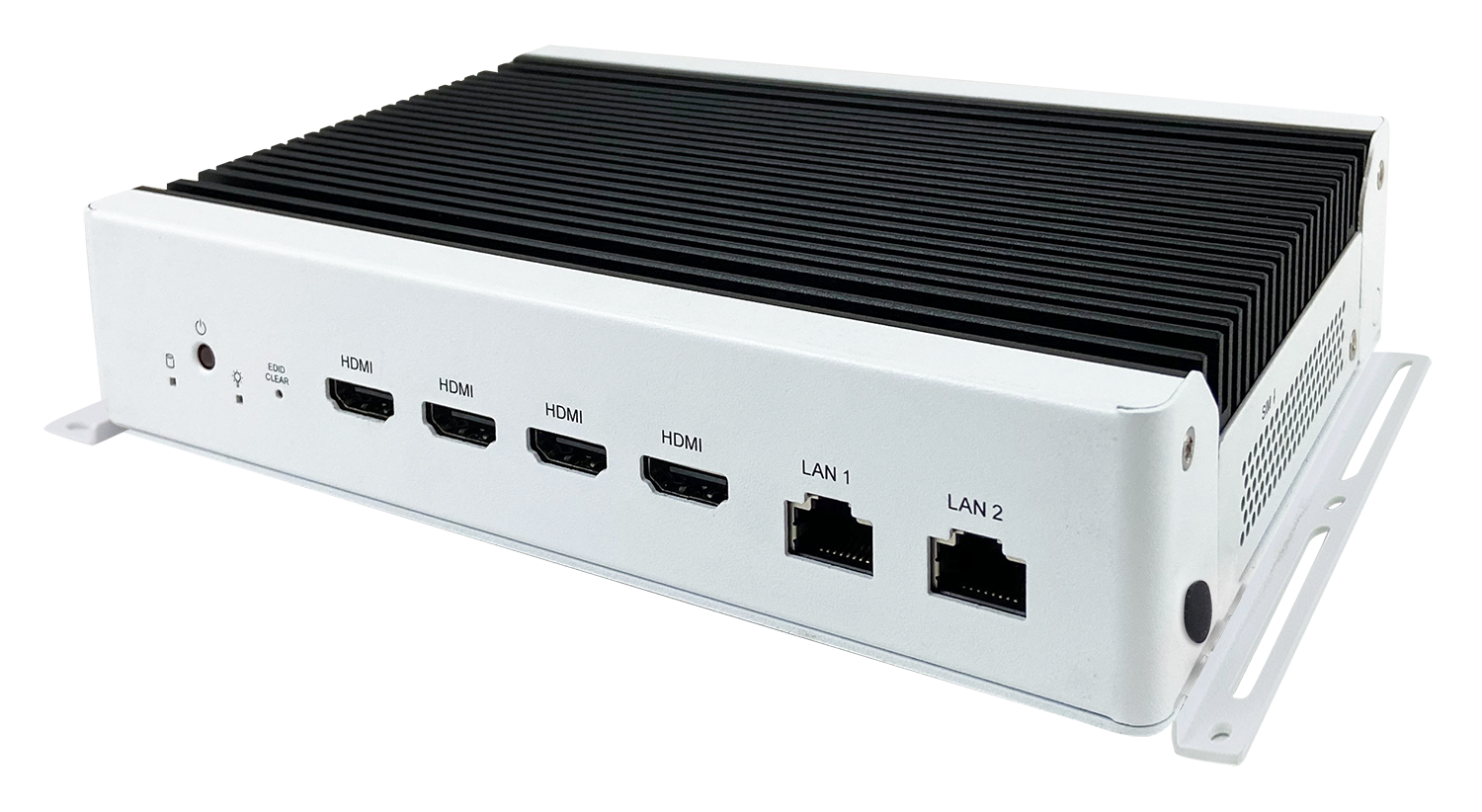

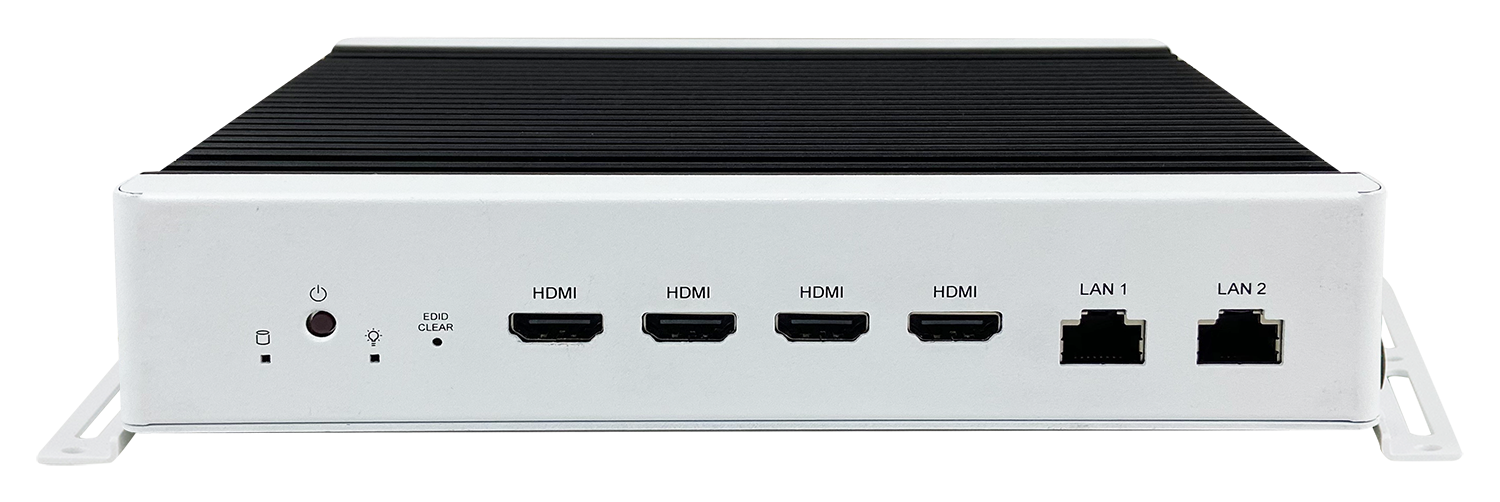

SI-654-N

Fanless 8K digital signage player powered by Intel’s latest 11th Gen Intel® Core™ U-Series processors (formerly Tiger Lake) manufactured with Intel’s 10nm SuperFin transistor that achieves up to 17.5% performance uplift and significantly higher clock speeds at lower power compared to the original 10nm.

Key Features:

  • iSMART Intelligent Energy-Saving Technology with Power on/off Scheduling and Power Resume Functions
  • 11th Gen Intel® Core™ U-Series Processor
  • 4x HDMI 2.0 with Independent Audio Output
  • Built-In Hardware EDID Emulation Function
  • HDMI-CEC and Display Monitoring Functions
  • 2x DDR4-3200 SO-DIMM, Dual Channel, Max. 64GB
  • 1x M.2 B-Key (3042) for 4G LTE
  • 1x M.2 E-key (2230) for WiFi, Bluetooth or Capture Card Options
  • TPM 2.0, vPro and Watchdog Timer
  • Industrial-Grade Robust, fanless and Compact Design
SI-654-N7 Intel® Core™ I7-1185G7E Processor (12M Cache, up to 4.40 GHz), 2x 4GB DDR4 3200 SO-DIMM memory, M.2 128GB and 84W power adaptor, TDP<=15W
SI-654-N5 Intel® Core™ I5-1145G7E Processor (12M Cache, up to 4.40 GHz), 2x 4GB DDR4 3200 SO-DIMM memory, M.2 128GB and 84W power adaptor, TDP<=15W
SI-654-N3 Intel® Core™ I3-1115G4E Processor (12M Cache, up to 4.40 GHz), 2x 4GB DDR4 3200 SO-DIMM memory, M.2 128GB and 84W power adaptor, TDP<=15W
SI-MK3 VESA bracket
