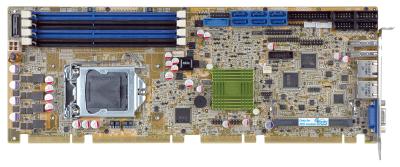

SPCIE-C2260-i2

SKU 4172

Full-size PICMG 1.3 CPU Card supports LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® per Intel® C226, DDR3, VGA, iDP, Dual Intel® PCIe GbE, SATA 6Gb/s, mSATA, PCIe Mini, RS-232, HD Audio, iRIS-2400 and RoHS

See the Product PDF Datasheet for Full Specifications.

  • PICMG 1.3 full-size server grade solution
  • LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
  • Four 240-pin 1600/1333MHz dual-channel DDR3 DIMMs support up to 32GB
  • Supports dual independent display by VGA and iDP interface
  • Supports PCIe Mini devices and mSATA via PCIe Mini socket
  • Intel® PCIe GbE with Intel® AMT 9.0 support
  • Supports RAID function via SATA 6Gb/s
  • TPM V1.2 hardware security function supported by TPM module
  • Stiffener bars
  • IEI jumper-less function
  • Support IPMI 2.0 via iRIS-2400 module

SPCIE-C2260-i2-R10: Full-size PICMG 1.3 CPU card supports LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® per Intel® C226, DDR3, VGA, iDP, Dual Intel® PCIe GbE, SATA 6Gb/s, mSATA, RS-232, PCIe Mini, HD Audio, iRIS-2400 and RoHS
