STC-7000 Series

IP69K Stainless Steel Panel PCs for Washdown Environments

Key Features

* IP69K/IP68 full stainless steel enclosure

* 12th Gen Intel® Core™ i7/i5/i3 P-series processors

* True-flat projected capacitive multi-touch display

* Available in 10.4″, 15″, 15.6″, 17″ and 21.5″ sizes

* M12 connectors for USB, LAN and COM

* Fanless industrial design

* VESA mounting support

* Ideal for food, pharmaceutical and chemical production

* Designed for harsh washdown and hygienic HMI environments

Backplane Systems Technology is proud to introduce the Vecow STC-7000 Series, a rugged range of full stainless steel panel PCs designed for demanding washdown and hygiene-critical industrial environments.

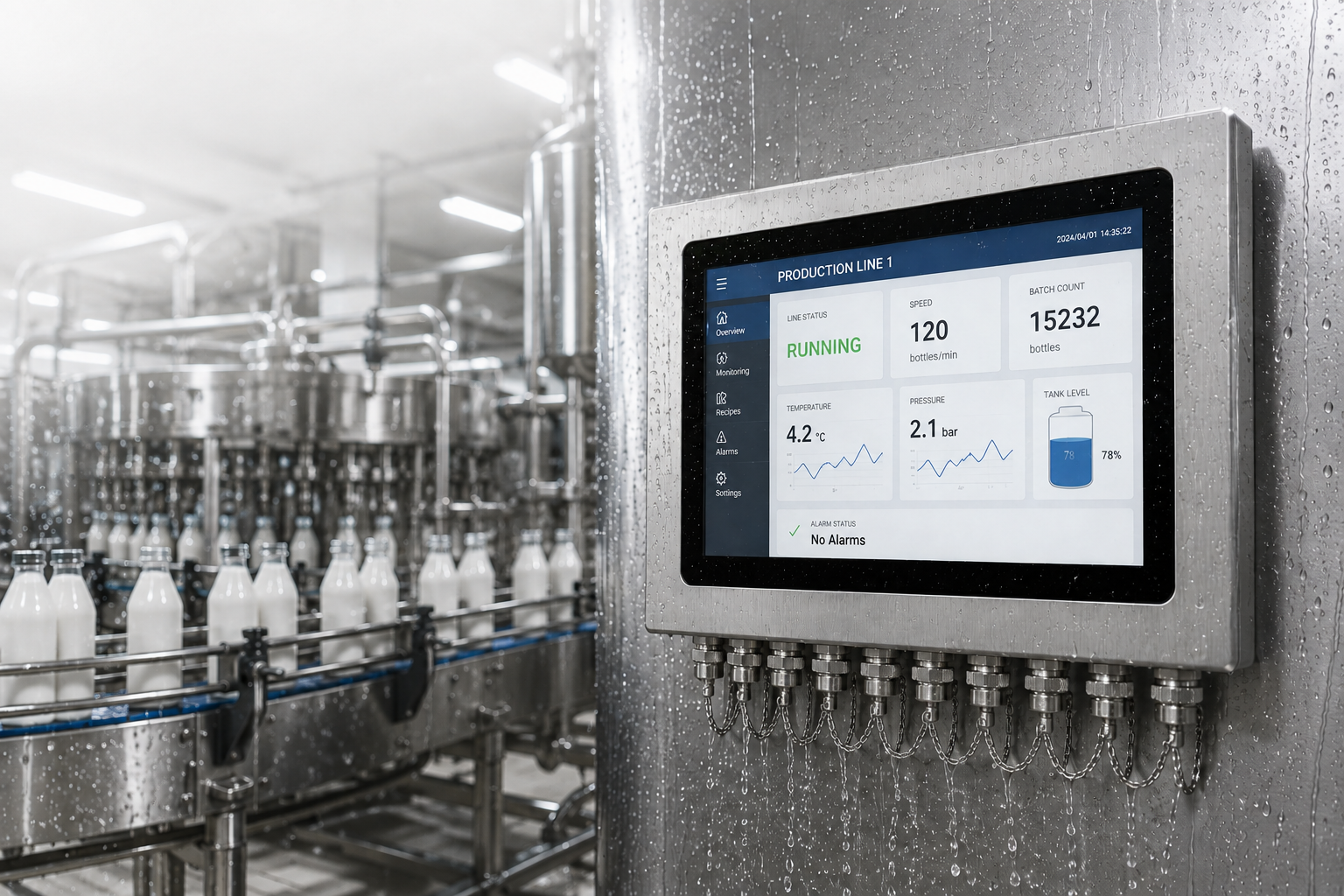

Built for applications where standard operator terminals may be exposed to water, cleaning processes and contaminants, the STC-7000 Series combines IP69K/IP68 protection, fanless operation and a true-flat projected capacitive touchscreen in a sealed stainless steel enclosure. This makes the platform particularly well suited to **food and beverage processing, pharmaceutical production, chemical manufacturing and hygienic industrial HMI applications.

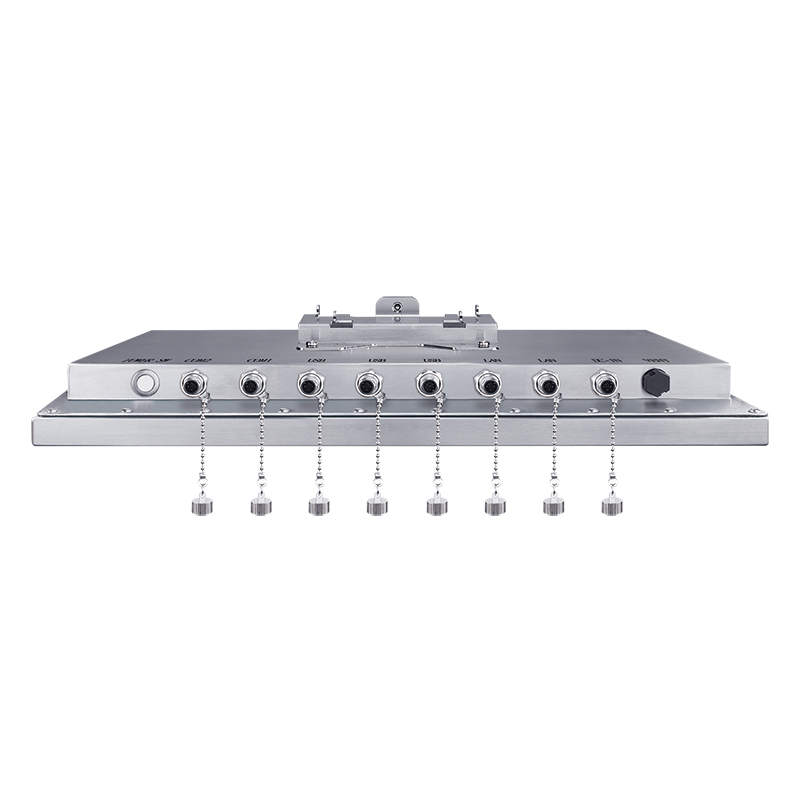

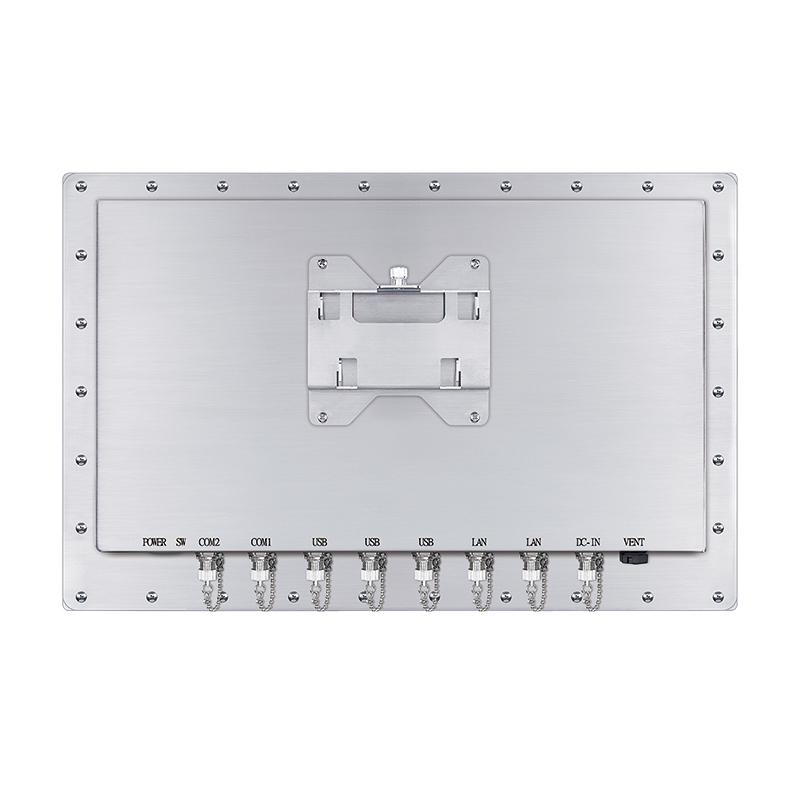

Powered by 12th Gen Intel® Core™ i7/i5/i3 P-series processors, the STC-7000 Series provides the performance required for modern production monitoring, equipment control, recipe management and plant-floor visualisation. Sealed M12 connectors for USB, LAN and COM help maintain reliable connectivity in washdown areas, while VESA mounting provides flexible integration into machinery and production environments.

Available in display sizes from 10.4″ through 21.5″, the STC-7000 Series gives system integrators flexibility to select the right operator interface while maintaining the same rugged stainless steel platform.

For manufacturers looking to modernise operator interfaces in harsh sanitary environments, the Vecow STC-7000 Series delivers reliable industrial computing where cleanability, durability and performance are essential.

Ordering Information

Display Base Model Core i3 Core i5 Core i7
10.4″ STC-7010 STC-7010-1215U STC-7010-1235U STC-7010-1255U
15″ STC-7015 STC-7015-1215U STC-7015-1235U STC-7015-1255U
15.6″ Full HD STC-7015W STC-7015W-1215U STC-7015W-1235U STC-7015W-1255U
17″ STC-7017 STC-7017-1215U STC-7017-1235U STC-7017-1255U
21.5″ Full HD STC-7021W STC-7021W-1215U STC-7021W-1235U STC-7021W-1255U

The 10.4″, 15″, 15.6″, 17″ and 21.5″ variants are all IP69K/IP68 full stainless steel, true-flat PCAP touch, fanless panel PCs. The 15.6″ and 21.5″ models are 1920 × 1080 widescreen; the 17″ is 1280 × 1024; and the 10.4″ and 15″ models are 1024 × 768.

CPU options

  • 1215U — Intel Core i3-1215U
  • 1235U — Intel Core i5-1235U
  • 1255U — Intel Core i7-1255U

All support one DDR4-3200 SO-DIMM up to 32GB, with M.2 Key M storage support plus additional M.2 expansion for wireless communications.

Orderable accessories

  • DDR4 4G_ — Certified 4GB DDR4-3200
  • DDR4 8G_ — Certified 8GB DDR4-3200
  • DDR4 16G_ — Certified 16GB DDR4-3200
  • DDR4 32G_ — Certified 32GB DDR4-3200
  • PWA-80W — 80W, 12V, 100–240VAC power adapter with M12 connector
  • WiFi & Bluetooth — Wireless module with antenna
  • M12 USB Cable — 2m waterproof USB cable
  • M12 LAN Cable — 2m waterproof LAN cable
  • M12 COM Cable — 2m waterproof RS-232 cable.
