ViTAM-9D Series

Key Features:

  • New Generation Stainless Steel Panel PC
  • 12th/13th Gen. Intel Core i3/i5 BGA Type Processor
  • True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure(Grade 316 for Option)
  • IP66/IP69K Rated with M12 Connectors
  • Support Resistive Touch, Projected Capacitive Touch
  • Touch on/off Button on the Side Edge for Hygienic Cleaning
  • Support Ergonomic Versatile Mounting: Yoke Mounting /Space-saving VESA 75 x 75mm Mounting

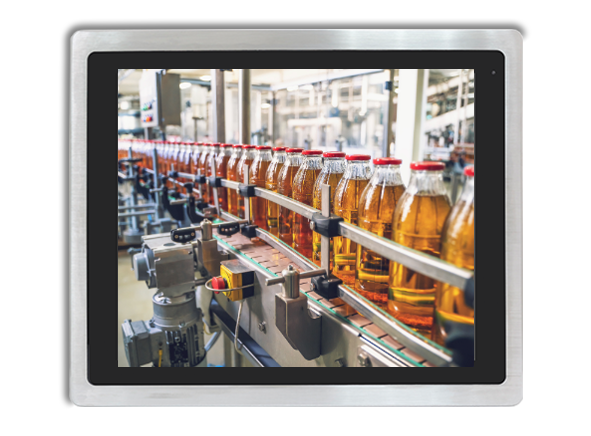

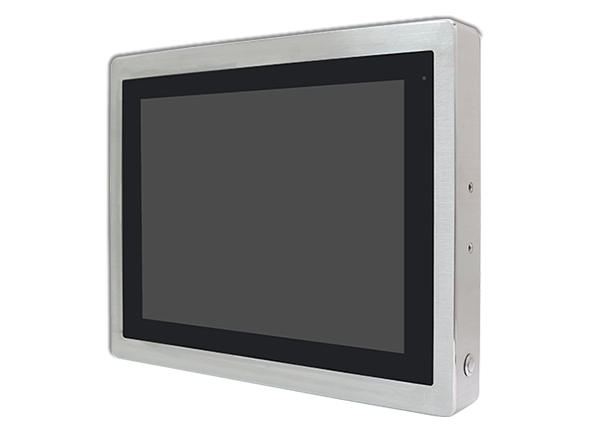

Backplane Systems Technology is pleased to present APLEX’s ViTAM-9D Series — the latest addition to the rugged and hygienic ViTAM stainless steel panel PC lineup. Purpose-built for food, beverage, and other hygiene-sensitive industries, the ViTAM-9D Series combines high computing performance with unmatched durability. Powered by 12th or 13th Gen Intel® Core™ i3/i5 processors, it ensures robust performance for modern industrial applications. Available in multiple screen sizes (15” to 21.5”) with either resistive or projected capacitive touch, the ViTAM-9D is adaptable to a range of operational needs.

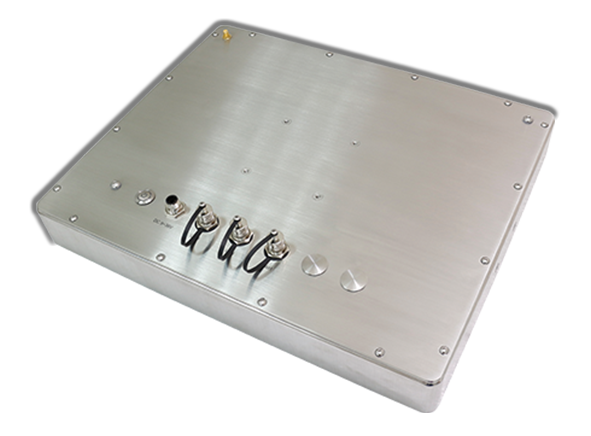

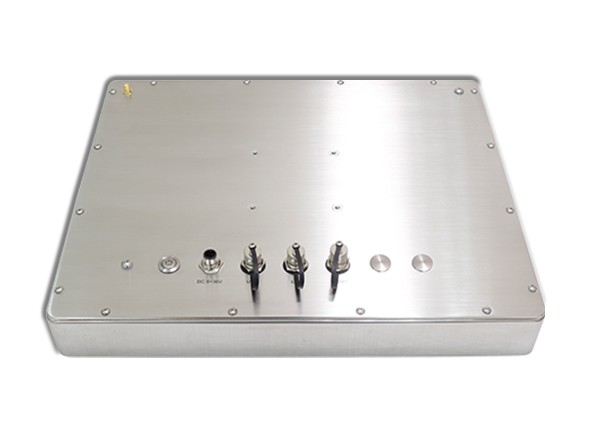

Engineered with SUS304/SUS316 stainless steel and certified with full IP66/IP69K protection, the system withstands daily high-pressure, high-temperature washdowns and resists corrosion, bacteria, and chemical exposure. Connectivity includes M12 connectors, USB, LAN, COM ports, and optional I/O expansion. Wireless communication features like Wi-Fi 6E, Bluetooth 5.3, 5G, and RFID enable clean, contactless use in sanitary environments.

To further optimize usability, the ViTAM-9D supports various mounting options and includes high-brightness LCD options with optical bonding and AG/AR coatings for readability in all lighting conditions. With rugged construction and intelligent design, the ViTAM-9D is a powerful and hygienic solution for food production and other demanding industries.

Ordering Information:

15″ Panel PC – ViTAM-915D Series

  • ViTAM-915DP: 15″ XGA IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-915DR: 15″ XGA IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

  • ViTAM-915DPH: 15″ XGA 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-915DRH: 15″ XGA 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

15.6″ Panel PC – ViTAM-916D Series

  • ViTAM-916DP: 15.6″ WXGA/FHD IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-916DR: 15.6″ WXGA/FHD IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

  • ViTAM-916DPH: 15.6″ WXGA/FHD 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-916DRH: 15.6″ WXGA/FHD 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

17″ Panel PC – ViTAM-917D Series

  • ViTAM-917DP: 17″ SXGA IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-917DR: 17″ SXGA IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

  • ViTAM-917DPH: 17″ SXGA 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-917DRH: 17″ SXGA 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

19″ Panel PC – ViTAM-919D Series

  • ViTAM-919DP: 19″ SXGA IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-919DR: 19″ SXGA IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

  • ViTAM-919DPH: 19″ SXGA 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-919DRH: 19″ SXGA 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

21.5″ Panel PC – ViTAM-921D Series

  • ViTAM-921DP: 21.5″ FHD IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-921DR: 21.5″ FHD IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

  • ViTAM-921DPH: 21.5″ FHD 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter.

  • ViTAM-921DRH: 21.5″ FHD 1000nits IP66/IP69K stainless steel panel PC, Intel 12th/13th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter.

  • APLEX
