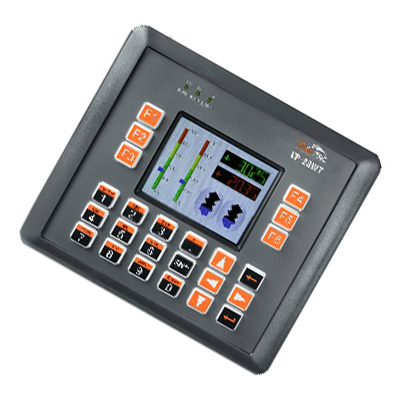

VP-25W7/VP-23W7

SKU 2868

It is equipped with a PXA270 CPU (520 MHz) running Windows CE .NET 5.0 operating system, a 3.5″/5.7″ TFT LCD, a rubber keypad, 3 I/O slots and various connectivity including USB, Ethernet and RS-232/485. Its operating system, Windows CE .NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. Running Windows CE .NET 5.0 in the ViewPAC gives it the ability to run ISaGRAF and PC-based control software such as Visual Basic .NET, Visual C#, Visual C++, SCADA software, etc.

Software Features

  • Windows CE.NET 5.0
  • ISaGRAF Ver.3 SoftLogic Inside
  • Support IEC 61131-3
  • Standard Support Web HMI function
  • Accepts max. 1 MB ISaGRAF code size

Hardware Features

  • PXA270 CPU (32-bit & 520 MHz)
  • Audio with Microphone-In and Earphone-Out
  • 128 MB SDRAM & 96 MB Flash
  • 3 I/O Expansion Slots (support High Profile I/O Modules)
  • IP65 Compliant Front Panel
  • 10/100M Ethernet Port (Default: One)
  • Rubber Keypad
  • 2 Serial Ports (RS-232, RS-485)
  • 3.5″/5.7″ TFT LCD (5.7″ LCD is with Touch Panel)

VP-23W7-EN CR : ISaGRAF based ViewPAC with 3.5″ LCD (OS: English) (RoHS)

VP-25W7-EN CR:  ISaGRAF based ViewPAC with 5.7″ LCD (OS: English) (RoHS)

VP-23W7-TC CR : ISaGRAF based ViewPAC with 3.5″ LCD (OS: Traditional Chinese) (RoHS)

VP-25W7-TC CR : ISaGRAF based ViewPAC with 5.7″ LCD (OS: Traditional Chinese) (RoHS)

VP-23W7-SC CR : ISaGRAF based ViewPAC with 3.5″ LCD (OS: Simplified Chinese) (RoHS)

VP-25W7-SC CR : ISaGRAF based ViewPAC with 5.7″ LCD (OS: Simplified Chinese) (RoHS)

VP-GUP-17000 : Upgrade the VP-2xW1 to become VP-2xW7 (or Upgrade the VP-2xW9 to become VP-2xW6)
