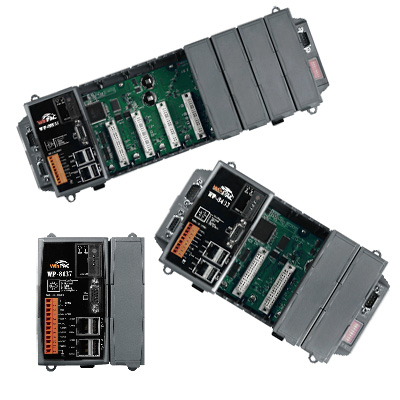

WinPAC-8xx7 Series

SKU 2857

WinPAC-8xx7 Series is the new generation WinCE 5.0 based ISaGRAF PAC (Programmable Automation Controller) of ICP DAS. WP-8xx7 is equipped with a PXA270 CPU (520 MHz) running Windows CE 5.0 Operating System, various connectivity including 10/100 Base-TX Dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA,
1 or 2 USB ports, and 1/4/8 slots for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K series), etc.

  • Windows CE.NET 5.0
  • Hard Real-Time Capability
  • Fast Boot Speed
  • ISaGRAF Ver.3 SoftLogic Inside
  • Support IEC 61131-3 Standard
  • Support Web HMI function
  • Accepts max. 1 MB ISaGRAF code size
  • PXA270 CPU (32-bit & 520 MHz)
  • VGA: Max. 1024×768 (for WP-8×37); Max. 800×600 (for WP-8×47)
  • 128 MB SDRAM & 128 MB Flash (for WP-8×37)
  • 128 MB SDRAM & 96 MB Flash (for WP-8×47)
  • USB: 2x (for WP-8×37); 1x (for WP-8×47)
  • 1/4/8 I/O Slots
  • Dual 10/100M Ethernet Ports
  • 64-bit Hardware Serial Number for Software Protection
  • 2/4 Serial Ports (RS-232/485)

WP-8137-EN CR: 1slots Ethernet WinCE 5.0 Based ISaGRAF PAC (OS: English) (RoHS)

WP-8147-EN CR: 1slots Ethernet WinCE 5.0 Based ISaGRAF PAC (OS: English) (RoHS)

WP-8437-EN CR: 4 slots Ethernet WinCE 5.0 Based ISaGRAF PAC (OS: English) (RoHS)

WP-8447-EN CR: 4 slots Ethernet WinCE 5.0 Based ISaGRAF PAC (OS: English) (RoHS)

WP-8837-EN CR: 8 slots Ethernet WinCE 5.0 Based ISaGRAF PAC (OS: English) (RoHS)

WP-8847-EN CR: 8 slots Ethernet WinCE 5.0 Based ISaGRAF PAC (OS: English) (RoHS)

  • ICP DAS
