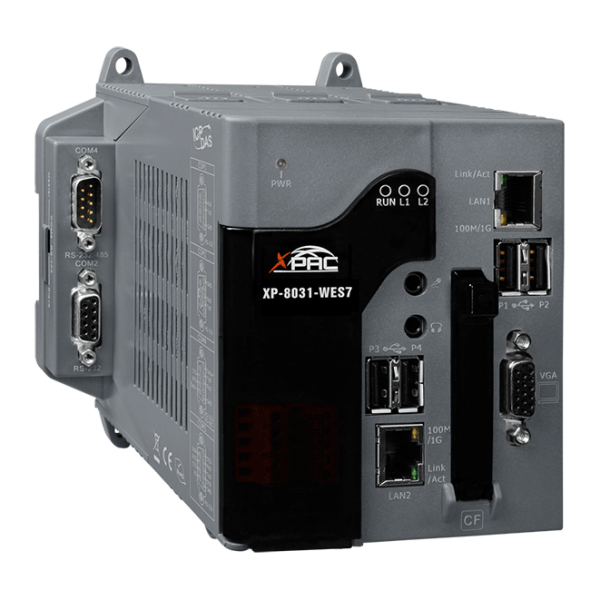

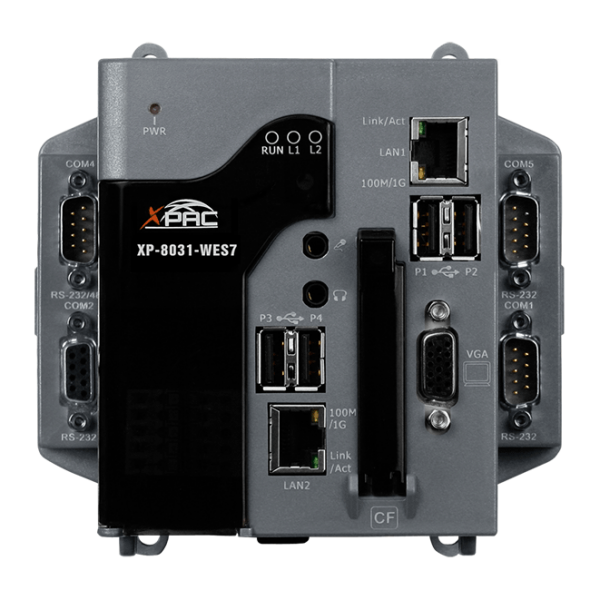

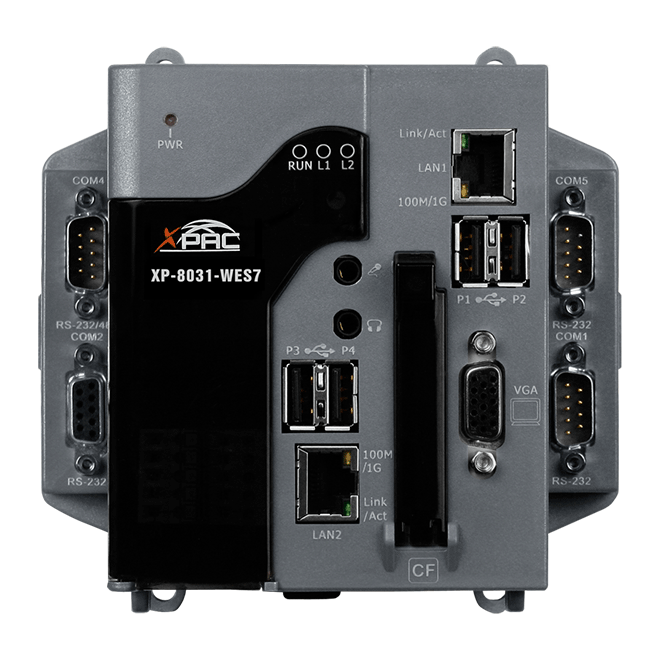

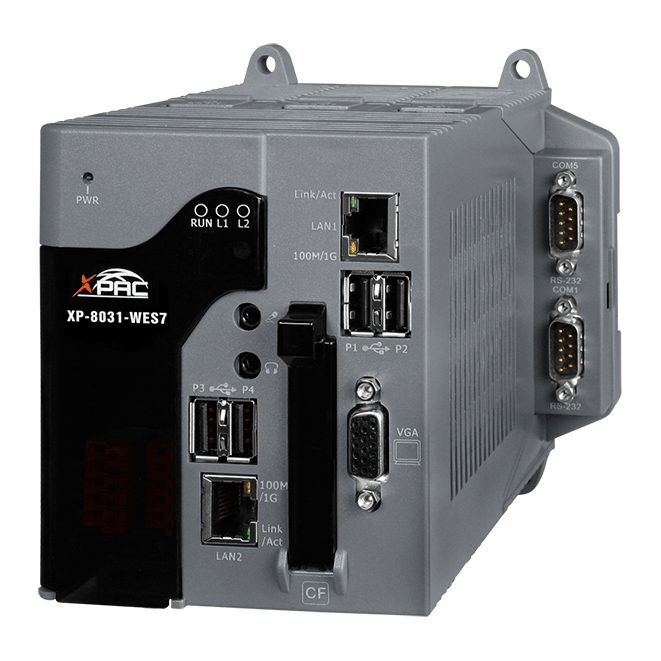

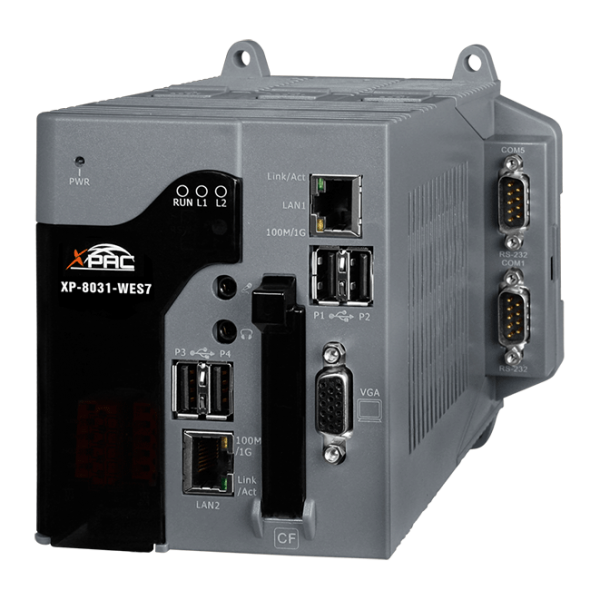

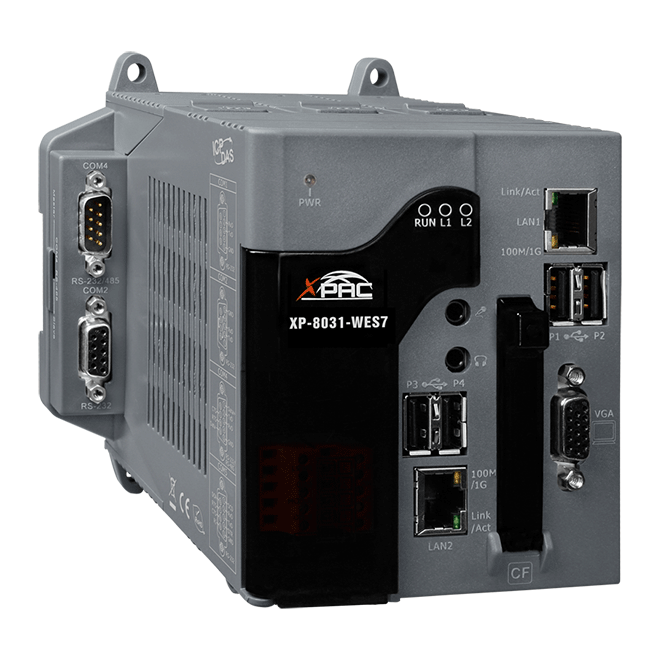

XP-8031-WES7

The XP-8031-WES7 are WES7 based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with a x86 (1 GHz, dual-core) CPU and a variety of connectives including dual Gigabit Ethernet, VGA, USB port, RS-232 and RS-485 interface.

• Windows Embedded Standard 7 SP1 x86 (32-bit)
• x86 CPU, 1 GHz, dual-core
• 2 GB DDR3 SDRAM
• 32 GB SSD
• VGA Port Output
• 2 10/100/1000M Ethernet Ports
• Audio with Microphone-In and Earphone-Out
• Redundant Power Input
• Operating Temperature: -25 ~ +75 °C

XP-8031-WES7 CR: Standard PAC with x86 CPU and WES7 (RoHS)

  • ICP DAS
