ASB210-953/ASB200-953

The ASB200-953 is a 5G-ready compact box PC housing IBASE’s IB953 3.5-inch SBC powered by 11th Gen Intel® Core™ i7-1185G7E, i5-1145G7E and i3-1115G4E processors (formerly Tiger Lake) with a 15W TDP threshold.

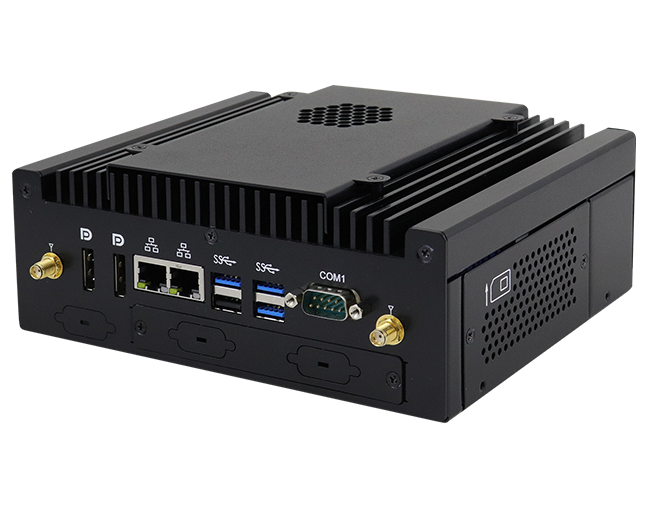

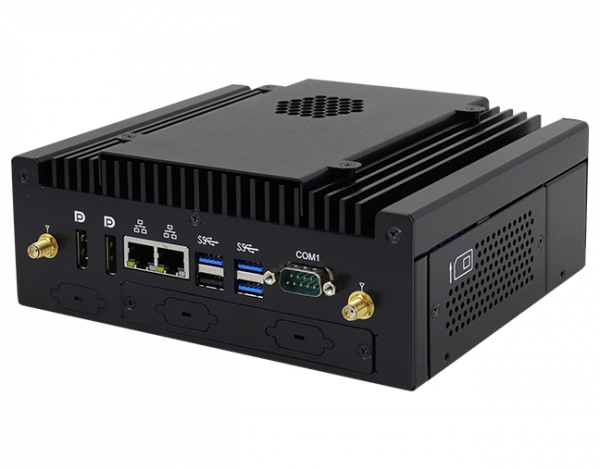

The ASB210-953 variant comes with fan support and up to 28W TDP. Both have Trusted Platform Module (TPM 2.0) security and are compatible with Windows 11 and Windows Embedded Standard 8 operating systems.

Key Features:

  • System with IB953 3.5’’ Single Board Computer (TDP: up to 28W)
  • Onboard 11th Gen Intel® Core™ U-Series Processor
  • Supports 3x M.2 Sockets (B-Key/E-Key and M-Key)
  • 12V (-10%) ~ 24V (+10%) DC-In Power Input
  • 2x DDR4-3200 SO-DIMM, Max. 64GB

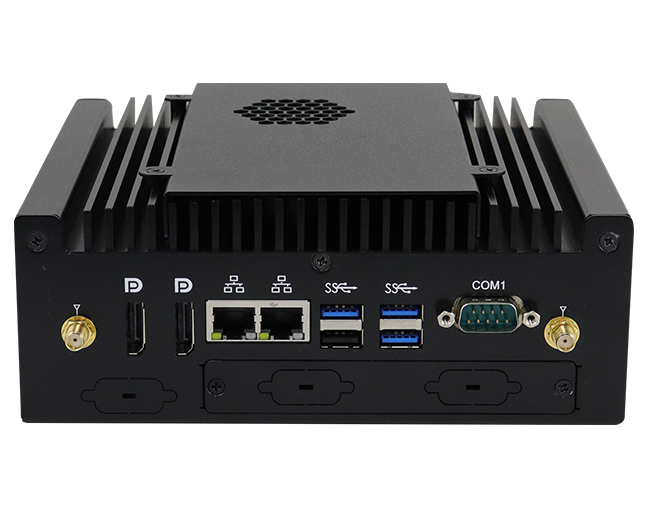

  • 3x USB 3.1, 1x USB 2.0, 2x Intel® GbE, 1x COM

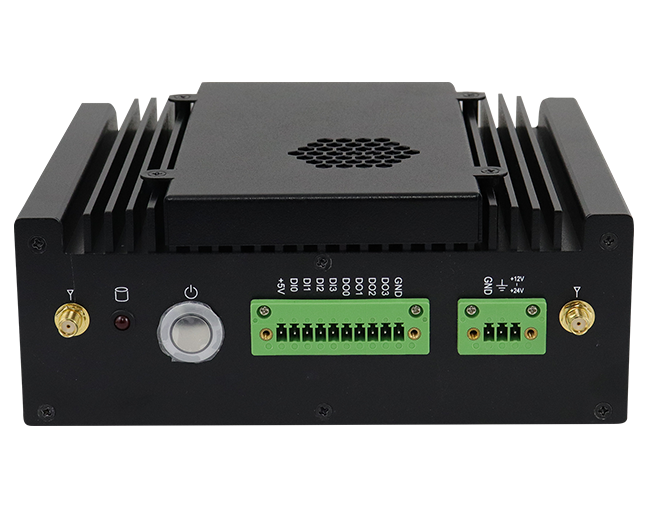

  • External GPIO, 2x DisplayPort, TPM (2.0)
  • Optional VESA Mount Bracket
ASB210-953-i7M Chassis with IB953AF-i7, Intel® i7-1185G7E CPU (TDP-up 28W), w/ system Fan, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB210-953-i5M Chassis with IB953AF-i5, Intel® i5-1145G7E CPU (TDP-up 28W), w/ system Fan, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB210-953-i3M Chassis with IB953EF-i3, Intel® i3-1115G4E CPU (TDP-up 28W), w/ system Fan, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
90W power adaptor (optional) 90W (24V@3.75A) power adaptor, bare wire type compatible with IEC62368-1/EN62368-1 [PN: A005PS090W0100700P]
Optional Accessories VESA mount kit [PN: SC2ASB2—-0A1200R] Wifi antenna kit [PN: A024MDWIFI0042400P (Intel® 9260 ) + SC2WIFI—-A10M00R (WiFi Kit)]

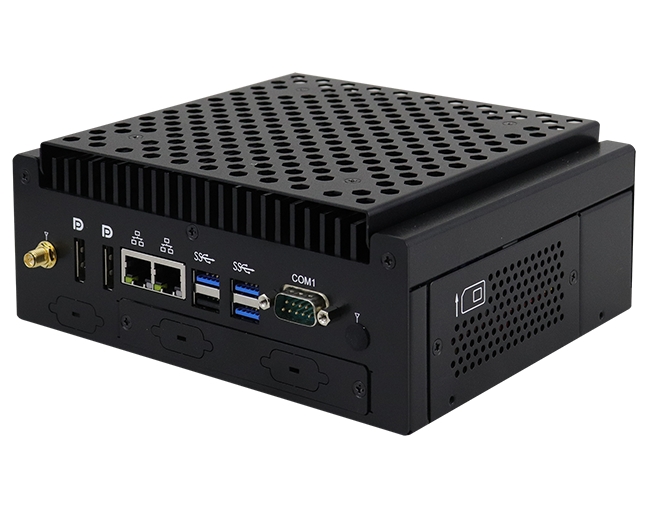

ASB200-953-i7M Fanless chassis with IB953AF-i7, Intel® i7-1185G7E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-i5M Fanless chassis with IB953AF-i5, Intel® i5-1145G7E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-i3M Fanless chassis with IB953EF-i3, Intel® i3-1115G4E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-CEL-M Fanless chassis with IB953EF-CEL, Intel® Celeron® 6305E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
90W power adaptor (optional) 90W (24V@3.75A) power adaptor, bare wire type compatible with IEC62368-1/EN62368-1 [PN: A005PS090W0100700P]
Optional Accessories VESA mount kit [PN: SC2ASB2—-0A1200R] Wifi antenna kit [PN: A024MDWIFI0042400P (Intel® 9260 ) + SC2WIFI—-A10M00R (WiFi Kit)]
