SKU 4838

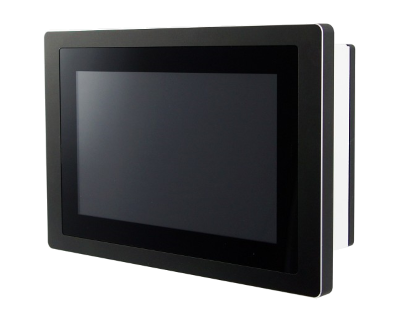

The BYTEM-W071-PC is a 7-inch wide screen all-in-one Panel PC that utilizes Intel® Atom™ processors to provide high computing performance and low power consumption for touch panel solutions.

The fanless BYTEM-W071-PC operates silently and reliably in harsh environments. It comes with two SO-DIMM slots to accommodate up to 8GB of 1333MHz DDR3L system memory and one 2.5” half-size SATA SSD. Featuring two Gigabit Ethernet and two COM ports, the unit is equipped with a projected capacitive touch screen with IP65-rated protection. BYTEM-W071-PC has a flat bezel design and supports 7H surface hardness against scratches. This Panel PC supports a 12V DC single power input with a 60W power adaptor, which makes it ideal for factory automation or any other industrial applications such as door sign, vending machine, kiosk and interactive information systems.

  • 7-inch 1024 x 600 high resolution industrial-grade LCD panel
  • Aluminum front bezel, IP65 rated
  • Projected capacitive touch screen
  • Onboard Intel® Atom™ Processor E3815 (E3827 and E3845 as options)
  • Default 4GB DDR3L memory, up to 8GB.
  • Accessible SSD space
  • 12V DC power input

BYTEM-W071-PC: 7” (1024 x 600) Flat Panel Design Panel PC with IB897, Intel® Atom™ Processor E3815 1.46GHz, 2GB DDR3L SO-DIMM, 32G SSD, projected capacitive touch, w/ 60W power adaptor


  • iBASE
