CSB200-822

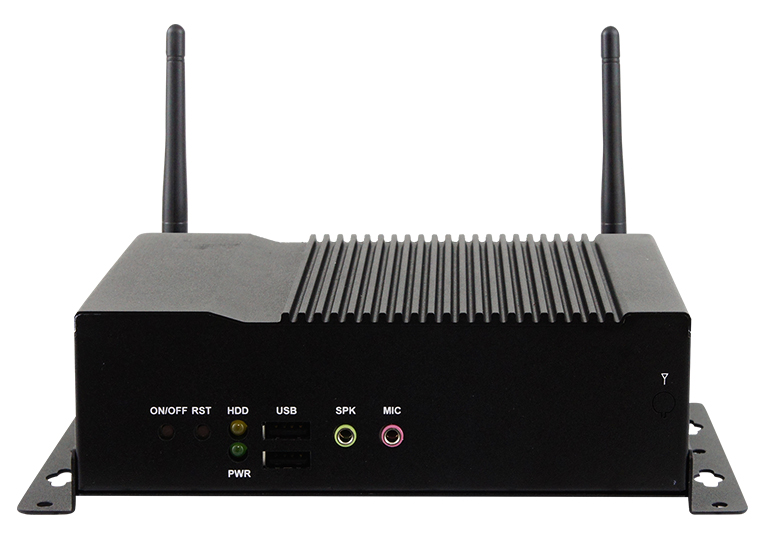

CSB200-822, which is a Fanless System with IB822 3.5’’ Single Board Computer and storage of 1 x 2.5″ SATA HDD or SSD.

Key Features:

  • Fanless System with IBASE IB822 3.5’’ Single Board Computer
  • Intel® Pentium® Silver Processor J5040
  • DC-Jack Type or Terminal Block Type (by option)
  • Supports 1x 2.5’’ SATA HDD or SSD (removable)
  • Wall Mount Kit Included
CSB200-822-5040S Fanless system with IB822-J5040 w/ Intel® Pentium® J5040, 4x COM, 1x 4GB DDR4 memory, 1x 2.5″ 500GB HDD, desktop stand & mounting brackets, w/o 60W power adaptor, Terminal block power input
CSB200-822-5040SDC Fanless system with IB822-J5040 w/ Intel® Pentium® J5040, 4x COM, 1x 4GB DDR4 memory, 1x 2.5″ 500GB HDD, desktop stand & mounting brackets, w/o 60W power adaptor, DC-Jack power input
60W power adaptor (optional) 60W (12V@5A) power adaptor, DC-jack or bare wire type, Compatible with IEC62368-1/EN62368-1
