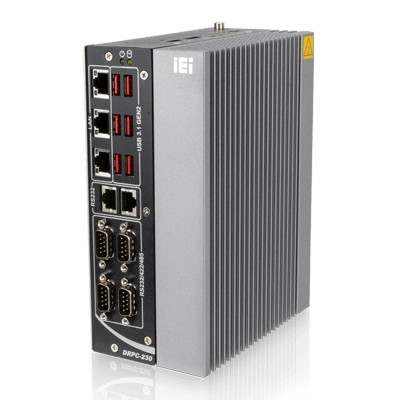

DRPC-230-ULT5

RPC-230 is designed to achieve AI inference and PoE applications through its expansion feature. The system is compatible with IEI’s own accelerator cards (Mustang-V100-MX8, Mustang-V100-MX4) and PoE cards (GPOE-4P, GPOE-2P).

For PoE cards, DRPC-230 has reserved a 60W internal power to provide. DRPC-230 is also possible to expand I/O through the second layer; its modularized flexibility could best fit users’ preferences

● Whiskey Lake Core™ i5-8365UE / Whiskey Lake Celeron™ 4205U
● Triple GbE LAN Ports
● Multiple USB 3.2 Gen 2 (10Gb/s)
● Multiple COM Ports
● Modularized Flexible Expansion
DRPC-230-ULT5-C/8G/S-R10: Fanless embedded system, Intel®Whiskey Lake Celeron™4205U 1.8GHz (dual core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC and RoHS
DRPC-230-ULT5-i5/8G-R10: Fanless embedded system, Intel®Whiskey Lake i5-8365UE 1.6GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC, PCIex4 extension layer and RoHS
DRPC-230-ULT5-i5/8G/S-R10: Fanless embedded system, Intel®Whiskey Lake i5-8365UE 1.6GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC and RoHS
