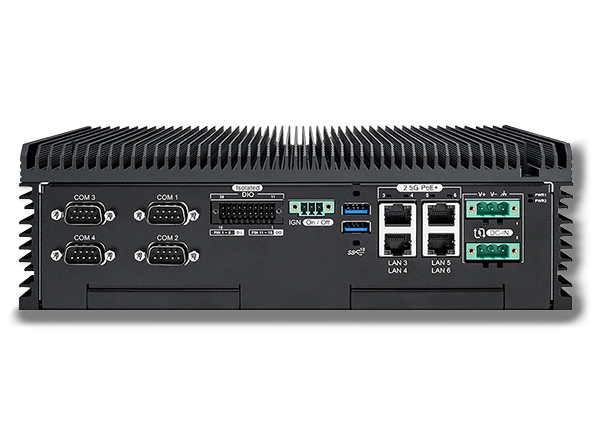

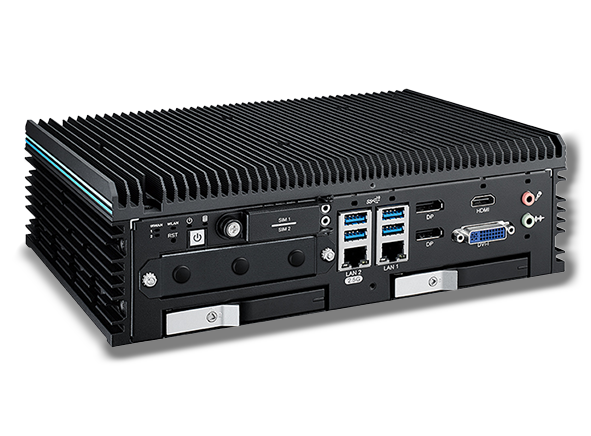

ECX-4000 Fanless AI Edge Computing System

Key Features:

  • Intel® Core™ Ultra 200S hybrid processors, up to 24 cores, 65 W/35 W TDP

  • Built-in Intel® NPU (AI Boost) and Xe LPG Graphics, up to 36 TOPS

  • Supports up to 96 GB DDR5-6400 ECC/non-ECC memory

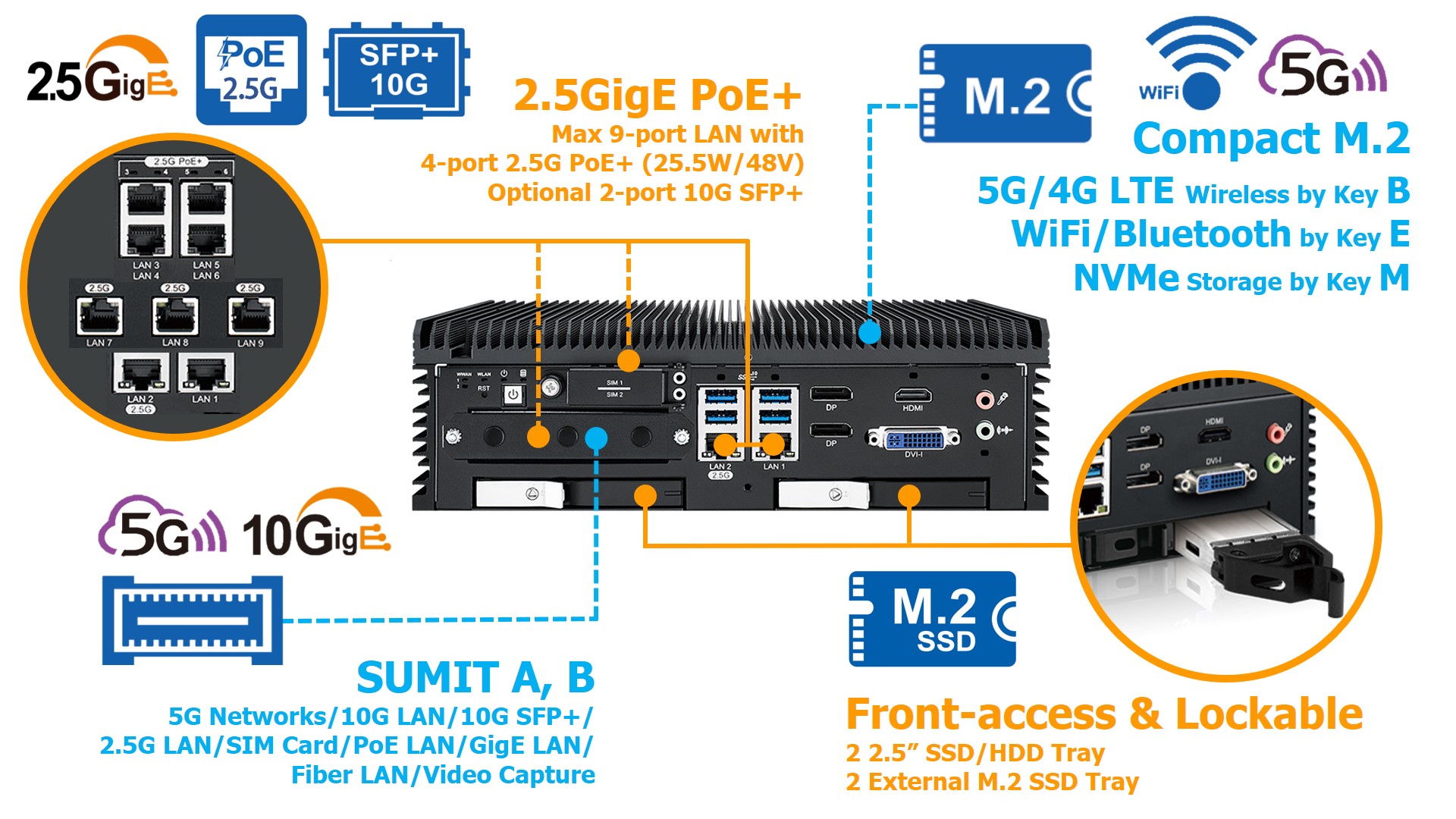

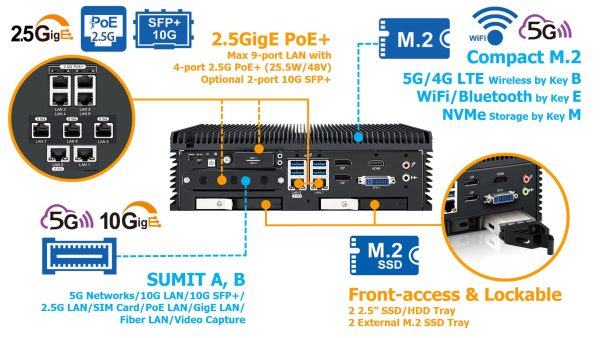

  • High-speed networking: 2×10 GbE SFP+, up to 5×2.5 GbE (4 with PoE+), 1×1 GbE

  • Multiple display outputs: 2× DisplayPort (8K), 1× HDMI 2.0, 1× DVI-I

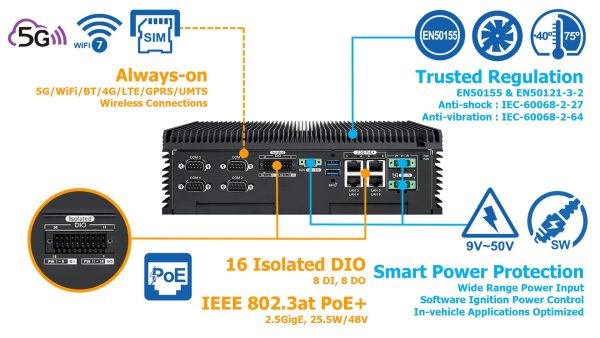

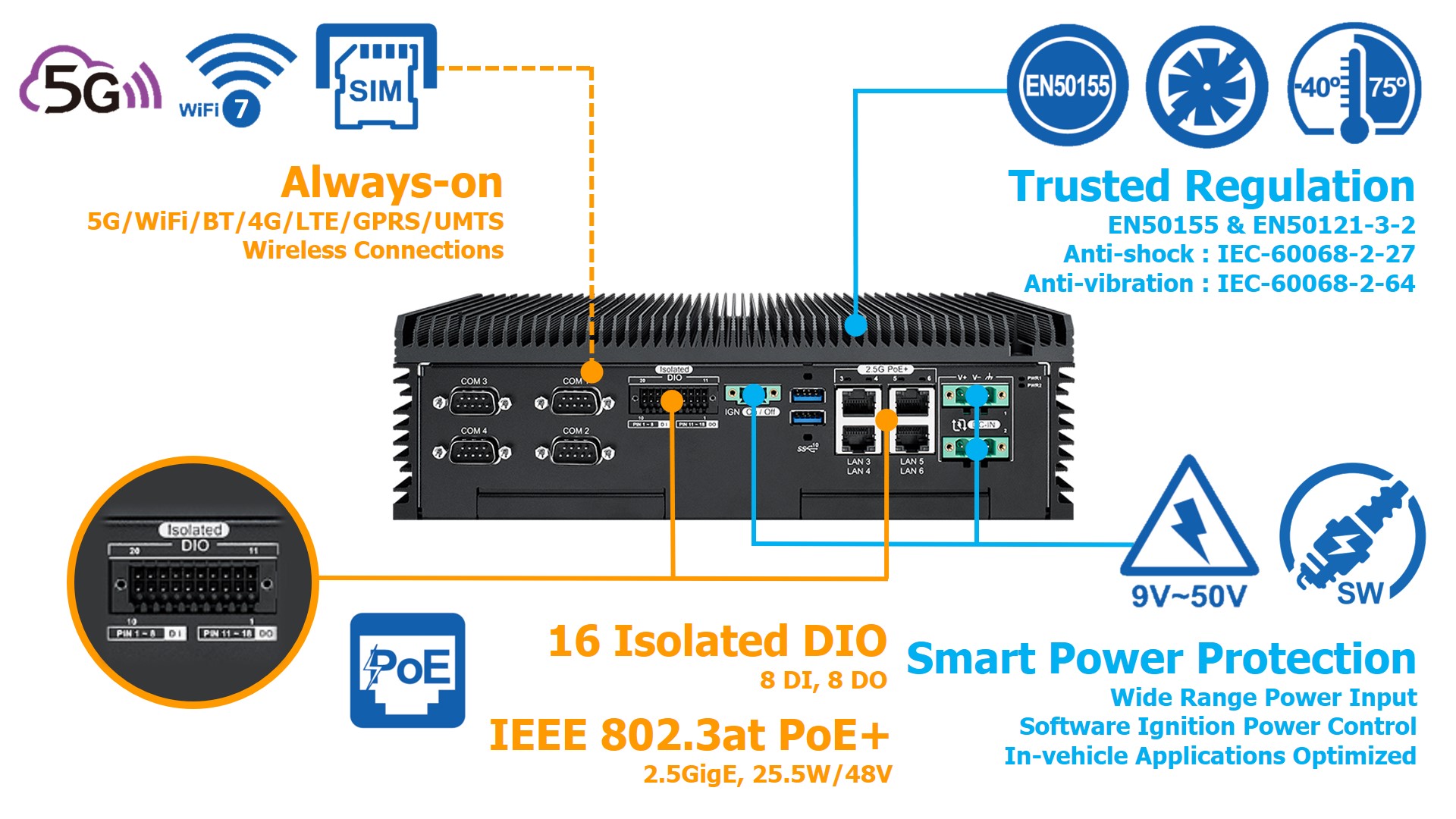

  • Rich expansion: 6× USB 3.2 Gen 2, 4× RS-232/422/485, 16-channel isolated DIO

  • Flexible storage: 2× SATA III (RAID 0/1), M.2 Key-M/B/E slots, front-accessible SSD trays

  • Wide 9–50 V DC input with redundant power and ignition control

  • Enhanced security and manageability: Intel vPro, TPM 2.0, TSN, TCC, Watchdog Timer

  • Fanless, rugged design with wide temperature support for industrial environments

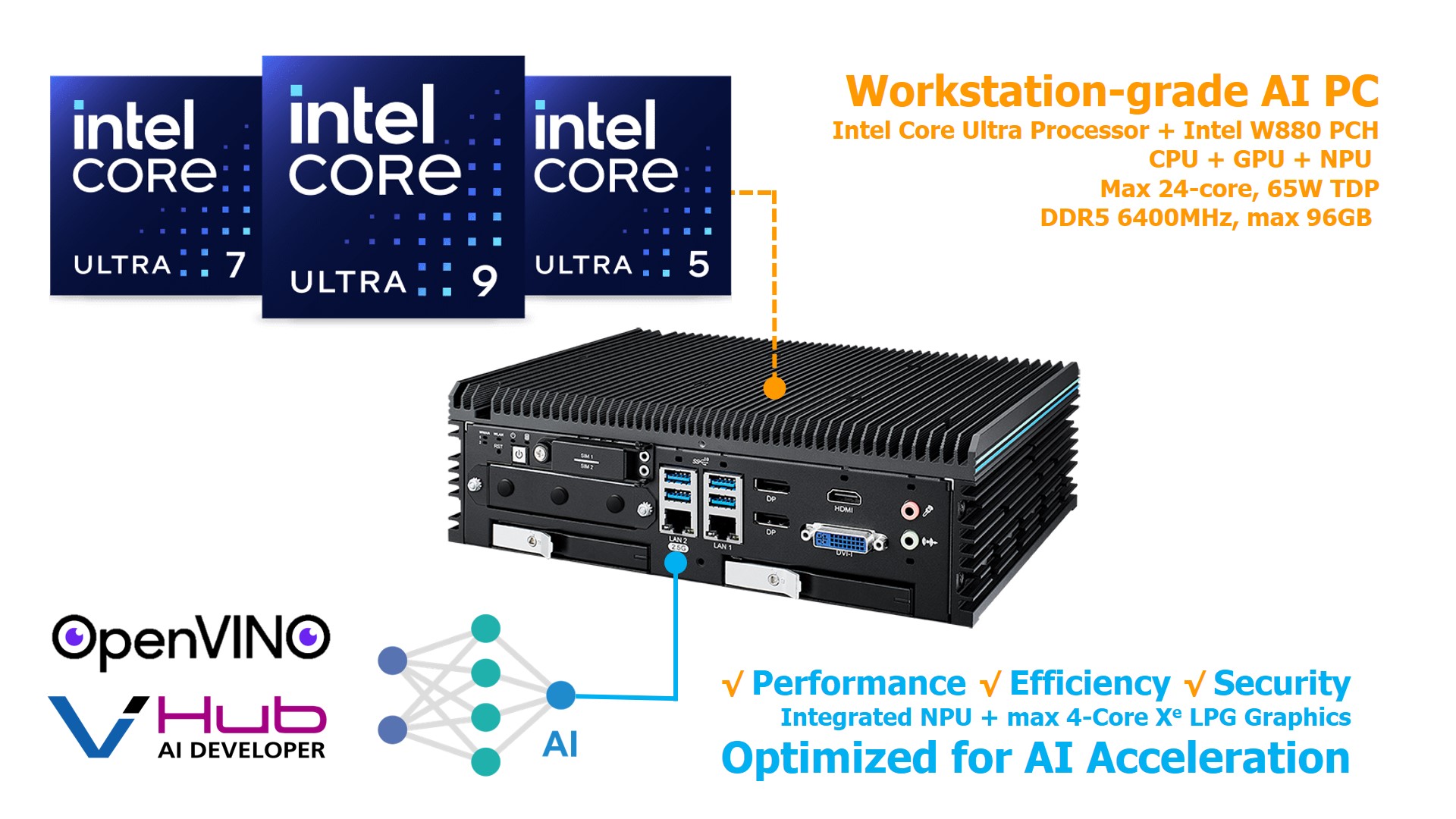

The Vecow ECX-4000 Series redefines edge AI computing with the latest Intel® Core™ Ultra 200S hybrid processors. Delivering up to 24 cores of performance and integrated AI acceleration through Intel® NPU and Xe LPG graphics, the ECX-4000 achieves up to 36 TOPS for real-time processing of demanding machine vision, automation, and security workloads.

Engineered for reliability in mission-critical environments, the ECX-4000 features a rugged fanless design, wide temperature operation, and a wide 9–50 V DC power input with ignition control. Connectivity is unmatched, with dual 10 GbE SFP+, up to five 2.5 GbE (four with PoE+), and multiple display outputs including dual DisplayPort up to 8K. Expansion flexibility comes standard with DDR5 memory up to 96 GB, multiple SATA and M.2 storage options, isolated digital I/O, and front-accessible SSD trays for easy service.

The system also integrates advanced manageability tools including Intel vPro, TPM 2.0, TSN, and TCC for deterministic networking and secure operations. These capabilities make the ECX-4000 the ideal platform for smart city infrastructure, intelligent transport, logistics automation, public security, and industrial AIoT applications.

With its combination of cutting-edge performance, rugged reliability, and flexible deployment, the ECX-4000 stands out as a future-ready edge AI solution.

Ordering Information

Model CPU Memory LAN / I/O Power Input Notes
ECX-4000-U24 Intel® Core™ Ultra 200S, 24 cores 0GB (up to 96GB) 2×10 GbE SFP+, 5×2.5 GbE (4 PoE+), 1×GbE, USB/COM 9–50V DC Fanless
ECX-4000-U16 Intel® Core™ Ultra 200S, 16 cores 0GB (up to 96GB) 2×10 GbE SFP+, 3×2.5 GbE, 1×GbE, USB/COM 9–50V DC Fanless
ECX-4000-U12 Intel® Core™ Ultra 200S, 12 cores 0GB (up to 96GB) 2×10 GbE SFP+, 2×2.5 GbE, 1×GbE, USB/COM 9–50V DC Fanless

Optional Accessories

  • AC/DC Power Adapter (90–264V AC input, 12/24V DC output)

  • DIN-Rail / Wall-Mount kits

  • Wi-Fi 7 / 5G expansion modules

  • Extended warranty (3- or 5-year options)
