I-7565M-HS

SKU 4955

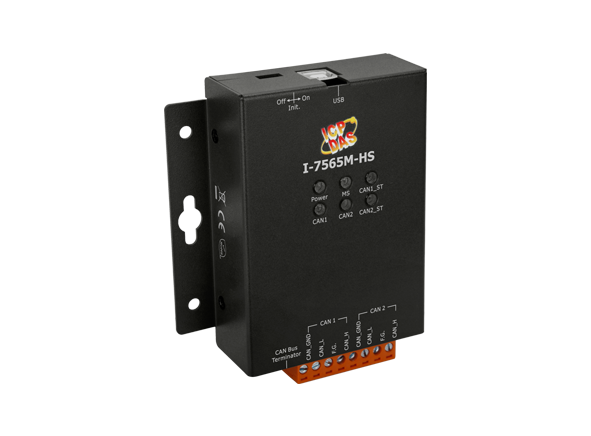

The I-7565M-HS is a high-speed USB-to-CAN-bus converter with two CAN channels, developed by ICP DAS and featuring:

  • Compatible with High-Speed USB 2.0, ISO 11898-2 Standard
  • Supports CAN2.0A, CAN2.0B, and CAN Bus Message Filter Configuration

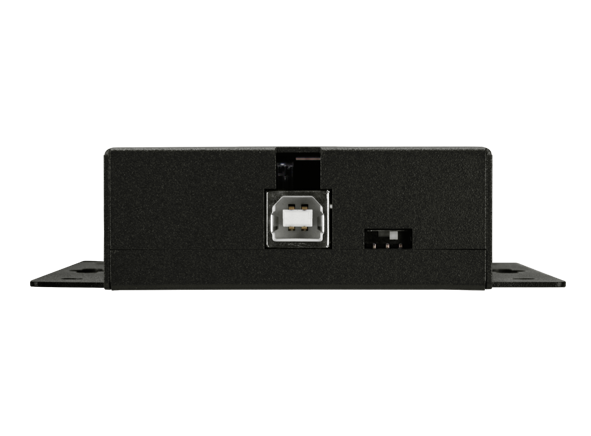

  • Powered via USB, Firmware Updates via USB
  • Programmable CAN Bus Baud Rate (10kbps~1000kbps)
  • CAN Message Timestamps Within ±10us Precision
  • Internal Watchdog Timer
  • PWR, CAN Tx/Rx, and CAN Status Indication LEDs
  • Built-In Dip-Switch to Select 120 ohm Terminal Resister for CAN Bus
  • Utility Tool for Users Module Setting and CAN Bus Communication Testing
  • API Library for User Program Development

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • Compatible with High-Speed USB 2.0, ISO 11898-2 Standard
  • Supports CAN2.0A, CAN2.0B, and CAN Bus Message Filter Configuration
  • Powered via USB, Firmware Updates via USB
  • Programmable CAN Bus Baud Rate (10kbps~1000kbps)
  • CAN Message Timestamps Within ±10us Precision
  • Internal Watchdog Timer
  • PWR, CAN Tx/Rx, and CAN Status Indication LEDs
  • Built-In Dip-Switch to Select 120 ohm Terminal Resister for CAN Bus
  • Utility Tool for Users Module Setting and CAN Bus Communication Testing
  • API Library for User Program Development



The I-7565M-HS is a high-speed USB-to-CAN converter with two CAN channels. Providing even faster CAN bus communication performance than its I-7565 predecessor, it supports CAN2.0A/2.0B protocol and different baud rates ranging from 5 kbps to 1000 kbps. The most important feature of the I-7565M-HS is its ability to support the user-defined baud rate functionality no matter what that baud rate is.

When the I-7565M-HS is connected to a PC, the PC will automatically load the relevant device driver (hot plug & play). As a result, the I-7565M-HS makes data collection and the processing of CAN bus networks fast and simple for any user. This module is perfect for a range of applications including CAN bus monitoring, building automation, remote data acquisition, environment control & monitoring, laboratory equipment & research, and factory automation.

I-7565M-HS CR: High-Speed USB to 2-Port CAN Bus Converter (RoHS)

  • ICP DAS
