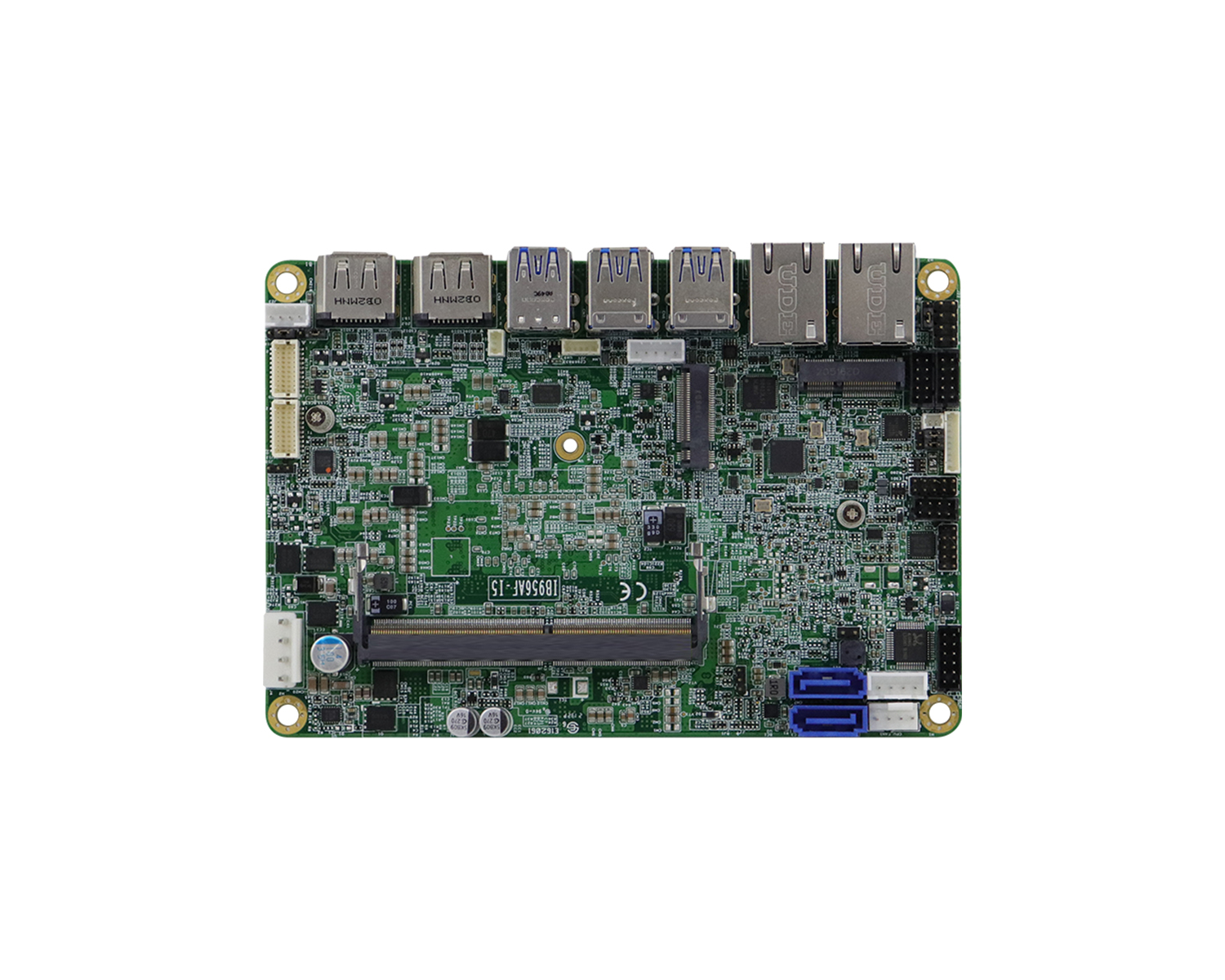

IB956

11th Gen Intel® Core™ / Celeron® 3.5″ Single Board Computer.

Key Features:

  • Onboard 11th Gen Intel® Core™ / Celeron® Processor (formerly Tiger Lake-H)
  • 1x DDR4 SO-DIMM, Max 32GB
  • Supports 3x DisplayPort (DP connector + Type-C connector) and 24-bit Dual Channel LVDS
  • 2x Intel® 2.5 Gigabit LAN
  • 6x USB3.1, 2x USB2.0, 2x SATA III, 2x COM, 2x M.2
  • Watchdog Timer, Digital I/O, iAMT (15), TPM (2.0
IB956AF-i7 Intel® QM580E / Core™ i7-11850HE onboard, w/ I225- LM 2.5GbE LAN + I225V 2.5GbE LAN, 3x DisplayPort (DP+ Type-C) & LVDS (24bit Dual-channel), 2x SATA III, 2x COM, 2x M.2 (M2280/ E2230), DC-in (12V~24V), Support iAMT 15.0, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS 2)
IB956AF-i5 Intel® QM580E/ Core™ i5-11500HE onboard, w/ I225- LM 2.5GbE LAN + I225V 2.5GbE LAN, 3x DisplayPort (DP+ Type-C) & LVDS (24bit Dual-channel), 2x SATA III, 2x COM, 2x M.2 (M2280/ E2230), DC-in (12V~24V), Support iAMT 15.0, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS 2)
IB956EF-i3 Intel® HM570E/ Core™ i3-11100HE onboard, w/ 2x I225V 2.5GbE LAN, 3x DisplayPort (DP+ Type-C) & LVDS (24bit Dual-channel), 2x SATA III, 2x COM, 2x M.2 (M2280/ E2230), DC-in (12V~24V), TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS 2)
IB956EF-CEL Intel® HM570E/ Celeron® 6600HE onboard, w/ 2x I225V 2.5GbE LAN, 3x DisplayPort (DP+ Type-C) & LVDS (24bit Dual-channel), 2x SATA III, 2x COM, 2x M.2 (M2280/ E2230), DC-in (12V~24V), TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS 2)
HSIB956-A Heatsink with Fan for IB956
HSIB956-1 Heat spreader for IB956
IB92 Cable kit w/ COM, Power, SATA + Power
