- 9th/8th Gen Intel® Xeon® E / Core™ i7/i5/i3 Pentium® QC/DC Processor, up to 4.7GHz
- 2x DDR4 DIMM, Max. 32GB
- 2x PCI-E Gigabit LAN
- Intel® processor integrated graphics, supports DVI-I/DVI-D/ LVDS
- 3x USB 2.0, 5x USB 3.0, 5x SATAIII, 4x COM
- 2x M.2 socket (M/ E key)
IB995

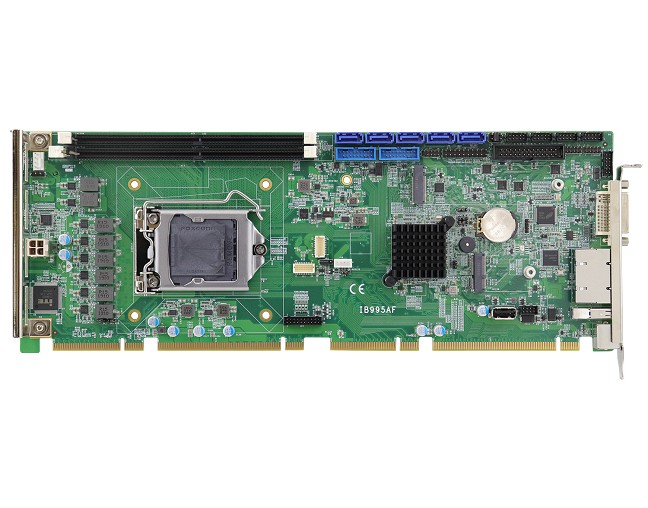

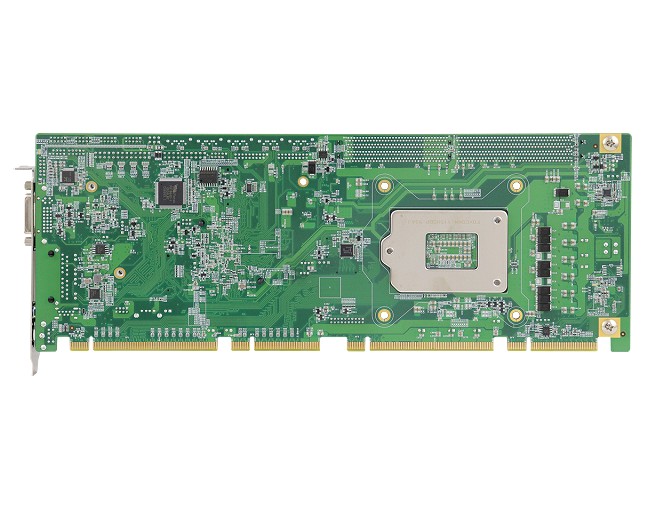

The IB995 PICMG® 1.3 Full-Size CPU Card is a slot-card server designed for the 8th Gen and 9th Gen (codenamed “Coffee Lake Refresh”) of Intel’s Core processors with support for up to 8 cores and CNVi architecture for wireless connectivity devices. The new CPU Card delivers cutting-edge performance with intelligent security and hardware monitoring features for real-time applications in process control, surveillance or imaging in the field of automation, transportation, medical technology and digital surveillance markets.
The IB995 is currently available in 3 models, integrated with different chipsets: C246 (IB995AF-C246), Q370 (IB995AF) and H310 (IB995EF) – all of which feature an M.2 storage interface with NVMe (Non-Volatile Memory Express) that enables rapid storage with write speeds of up to 3500MB/s (7 times over SATA SSDs), and up to 32 GB of DDR4-2166/2400 memory.
IB995AF-C246: LGA1151 C246 PICMG1.3 Full-Size CPU Card w/ DVI-I, DVI-D, LVDS, Dual Gigabit LAN, iAMT (11.6), 5x SATA III
IB995AF: LGA1151 Q370 PICMG1.3 Full-Size CPU Card w/ DVI-I, DVI-D, LVDS, Dual Gigabit LAN, iAMT (11.6), 3x SATA III
IB995EF: LGA1151 H310 PICMG1.3 Full-Size CPU Card w/ DVI-I, DVI-D, LVDS, Dual Gigabit LAN, iAMT (11.6), 2x SATA III
