MAF800

The MAF800 industrial-grade embedded system series is suitable for use in machine vision and factory automation facilities to automate shop floor processes and defect inspection based on deep learning with automated optical inspection (AOI) or vision-guided robotics (VGR).

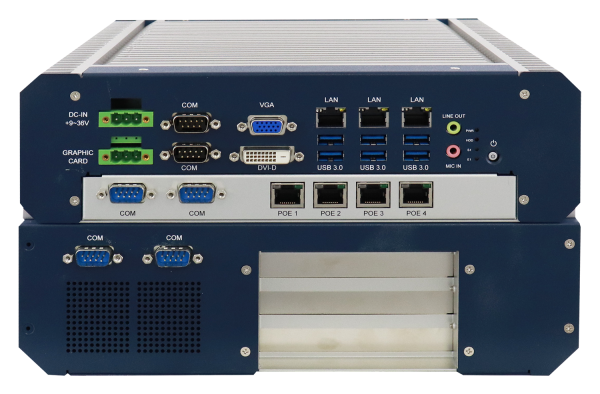

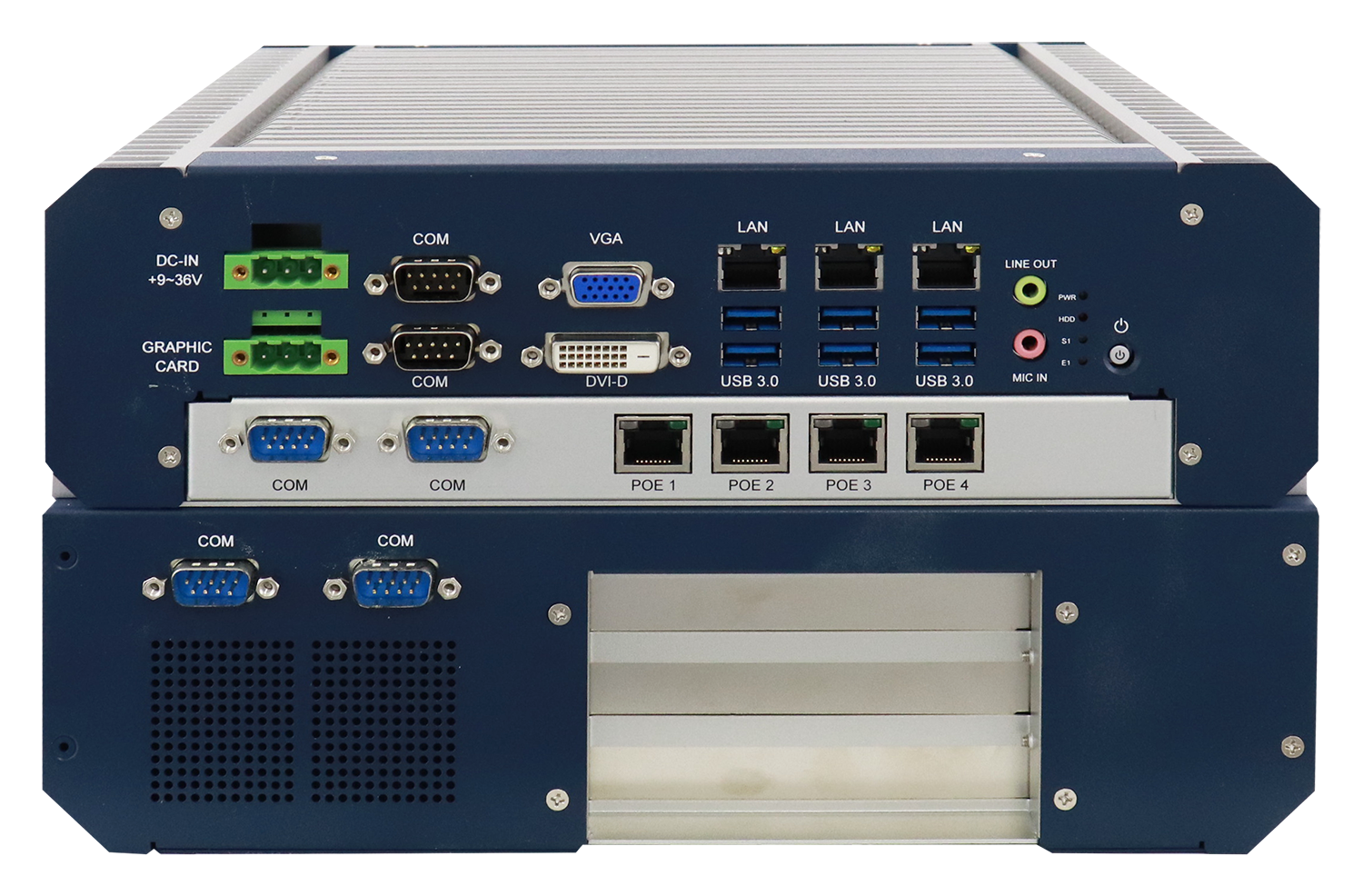

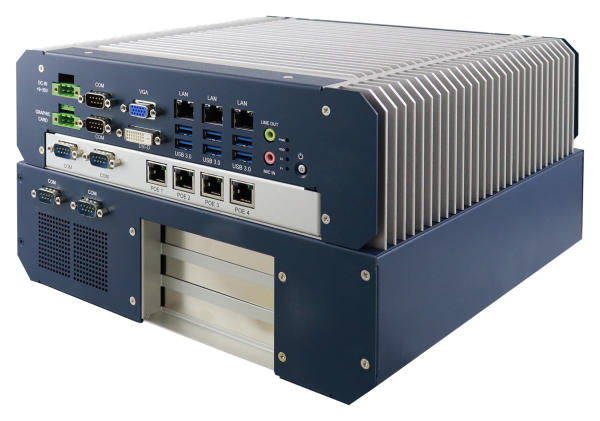

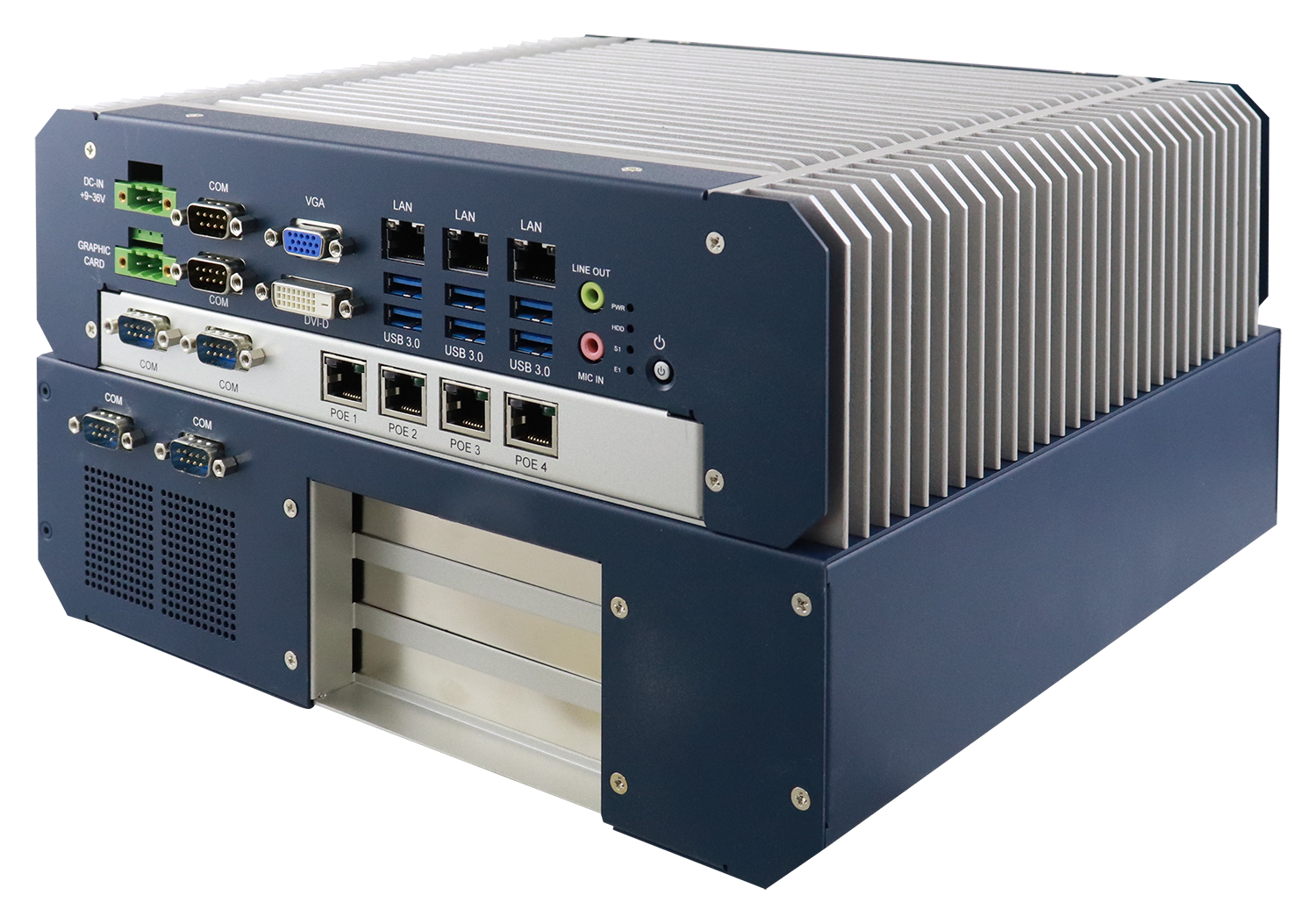

The MAF800 base model has a compact and fanless design with a high performance 8th Gen. Intel® Core™ i7-8700 processor and extensive connectivity with three GigE LAN ports and six USB 3.0 ports for easy integration in multi-camera machine vision applications including locating and aligning parts for assembly with greater speed and accuracy than manual positioning.

  • 8th Gen Intel® Core™ processors TDP 65W
  • 2x DDR4 SO-DIMM, dual channel, Max. 32GB
  • 3x GigE ports, 6x USB 3.0
  • 1x M.2 2280 M Key
  • Modular design: Main system or Main system + SUMIT module (4 ports PoE+ SUMIT module) or Main system + SUMIT module + Expansion slots support PCI-E high performance graphics cards
  • Operating temperature ranging from -10°C to 50°C
  • 9V~36V wide-range DC input

MAF800-E: Box PC Controller, Fanless Design, w/ Intel® Core™ I5-8500, 2x 4GB DDR4 SO-DIMM, 1x 2.5″ 128GB MLC industrial-grade SSD, 4-ports PoE+module, w/o Power adaptor
MAF800-2E: Box PC Controller, w/ Intel® Core™ I5-8500, 2x 4GB DDR4 SO-DIMM, 1x 2.5″ 128GB MLC industrial-grade SSD, 4-ports PoE+module, 1x PCI-E (x16) slot, 1x PCI-E (x4) slot (Support 211mm x 129mm x 41mm GUP card), w/o Power adaptor
MAF800-L2E: Box PC Controller (Long chest), w/ Intel® Core™ I7-8700, 2x 4GB DDR4 SO-DIMM, 1x 2.5″ 128GB MLC industrial-grade SSD, 4-ports PoE+module,1x PCI-E (x16) slot, 1x PCI-E (x4) slot (Support 310mm x 113mm x 38mm GPU card), w/o Power adaptor
