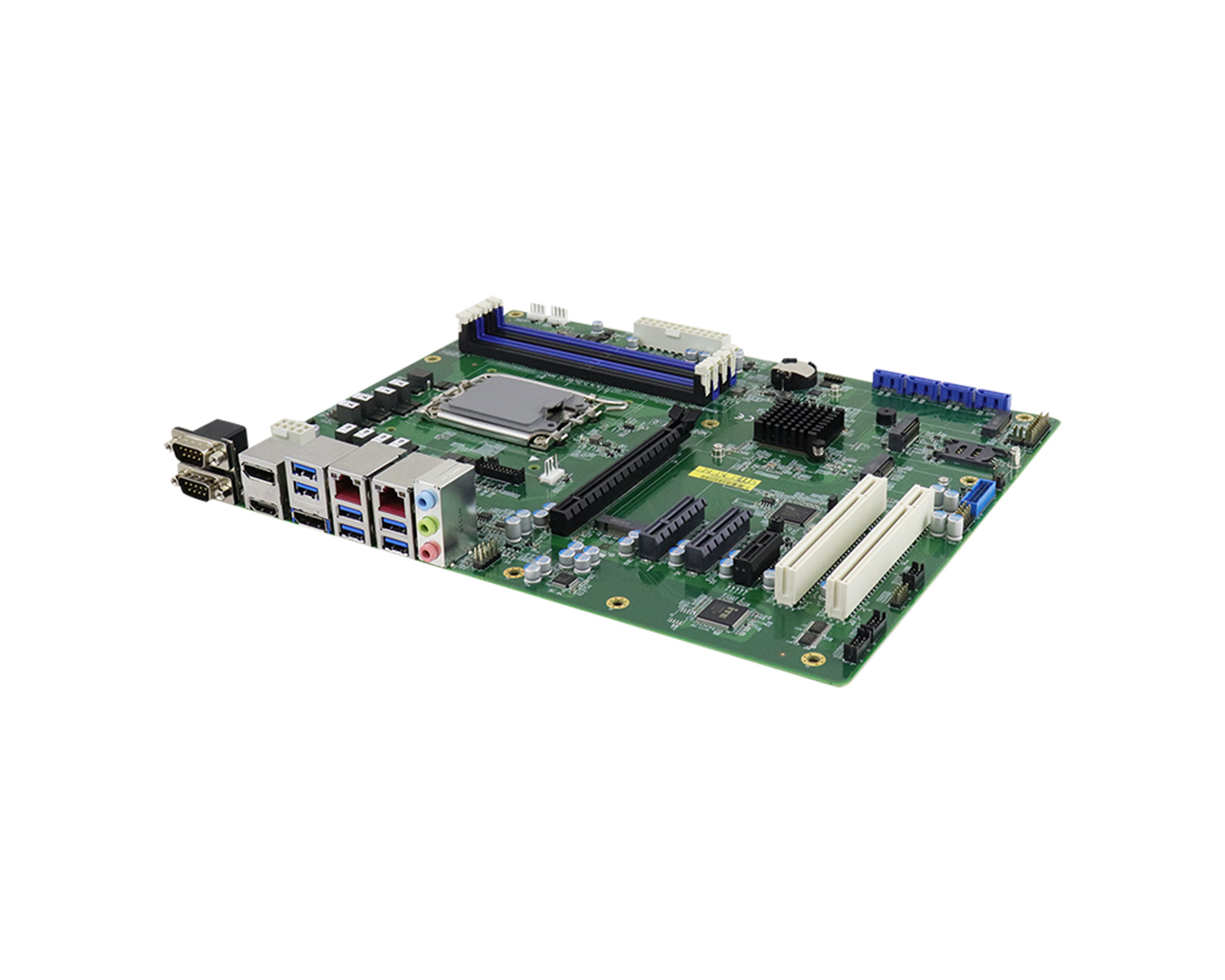

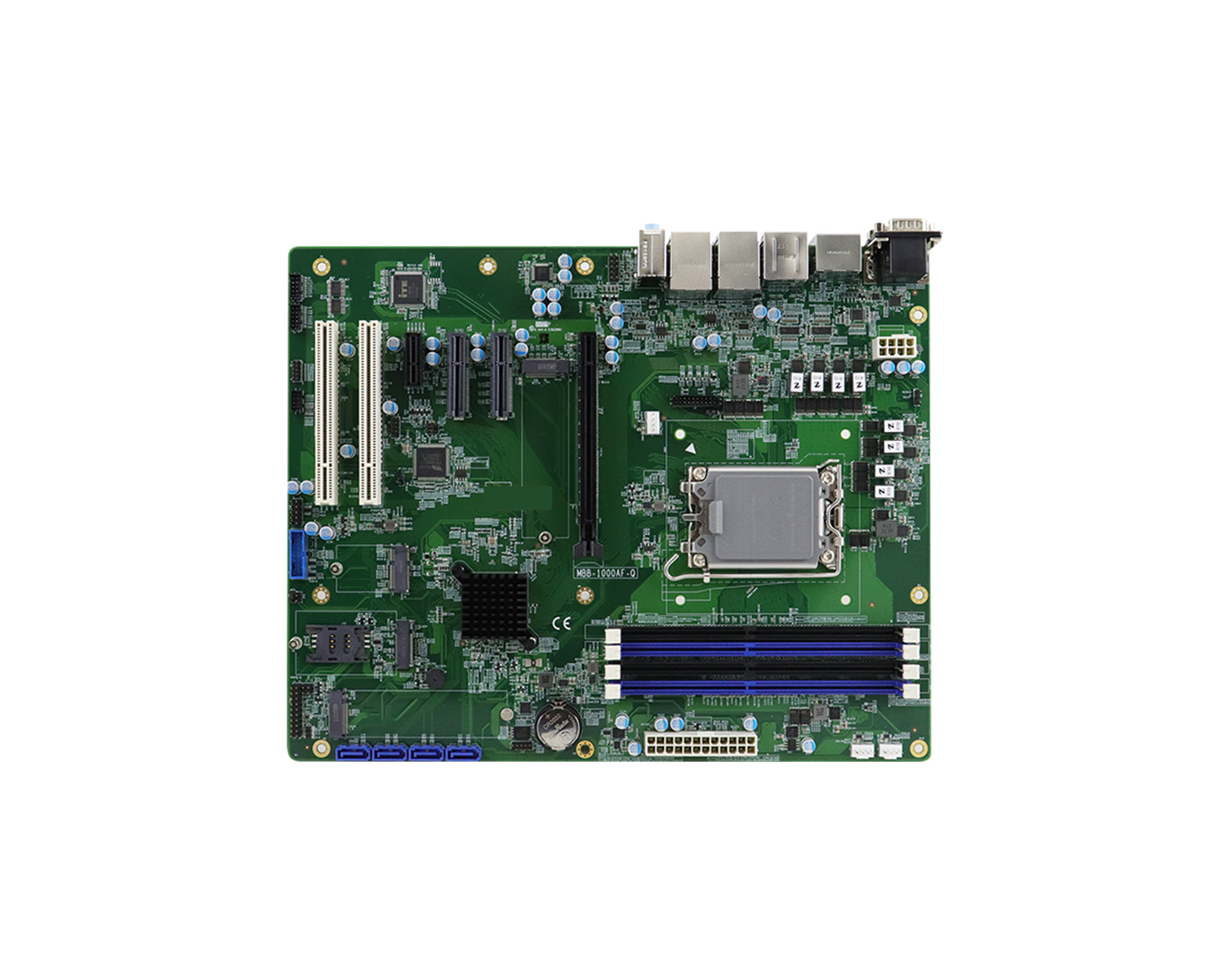

MBB-1000

A 12th Gen Intel® Core™ processor (formerly Alder Lake) powered ATX motherboard. It is built with long-term reliability for graphics-intensive applications such as AIoT, digital signage, medical imaging, video surveillance, and interactive kiosks.

Key Features:

12th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® Processors
4x DDR4 DIMM, Max.128GB
Intel® Processor Integrated Graphics Supports HDMI (2.0b), DVI-D, and DisplayPort (1.4) (DP++)
Dual Intel® 2.5G LAN
8x USB 3.1, 2x USB 2.0, 4x SATA 3.0, 4x COM
1x PCI-E(x16) (Gen5.0), 2x PCI-E(x4) (Gen4.0), 1x PCI-E(x1) (Gen3.0), 2x PCI
4x M.2 (B-Key, E-Key/ 2x M-Key)
Watchdog Timer, Digital I/O, iAMT (16.0), TPM (2.0)

MBB-1000AF-R	LGA1700 R680E ATX Motherboard w/ HDMI, DisplayPort, DVI-D, Dual 2.5G LAN, RAID, iAMT (16.0), TPM (2.0), supports ECC
MBB-1000AF-Q	LGA1700 Q670E ATX Motherboard w/ HDMI, DisplayPort, DVI-D, Dual 2.5G LAN, RAID, iAMT (16.0), TPM (2.0)
