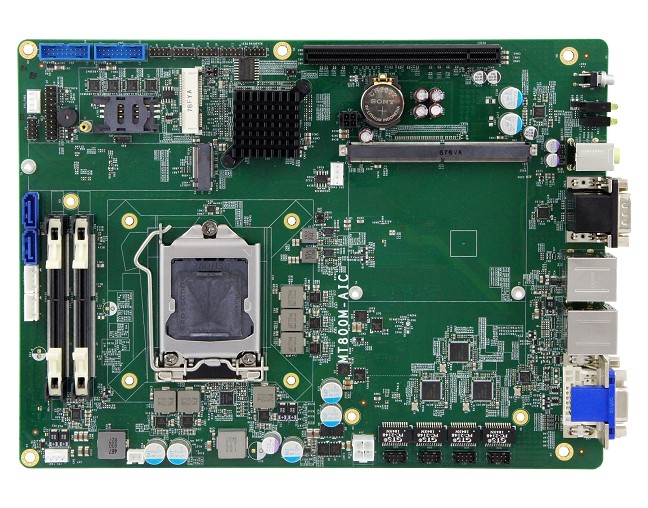

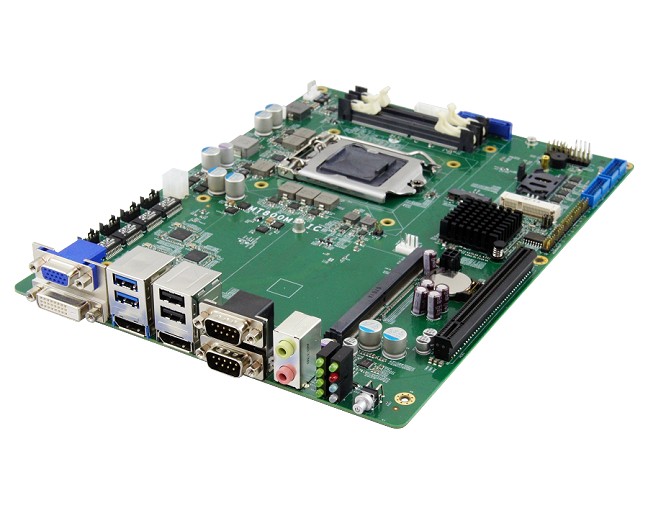

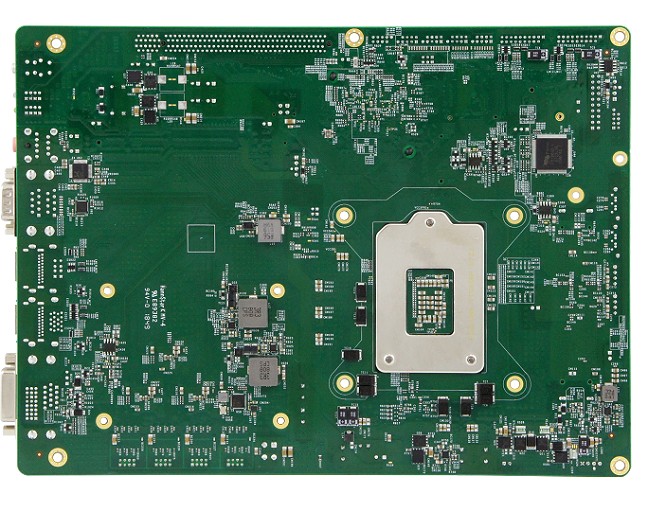

MT800M-P

MT800M-P is a new NVIDIA MXM compatible motherboard designed for AIoT applications. It supports the latest 8th Generation Intel® Core™ processor family, enabling customers to benefit from optimized processing and graphics performance and enhance I/O capability.

With the increasing demand of AI-enabled inference platforms, IBASE has developed the MT800M-P with an MXM socket for NVIDIA’s graphics cards (up to 190w) with GPU acceleration to harness its cutting-edge performance and responsiveness to power currently prevalent AI services such as speech recognition, image analysis, visual search and media processing.

  • 8th Gen Intel® Core™ i7/i5/i3 processors
  • 2x DDR4 SO-DIMM, Max. 32GB
  • 4x Intel® Gigabit LAN

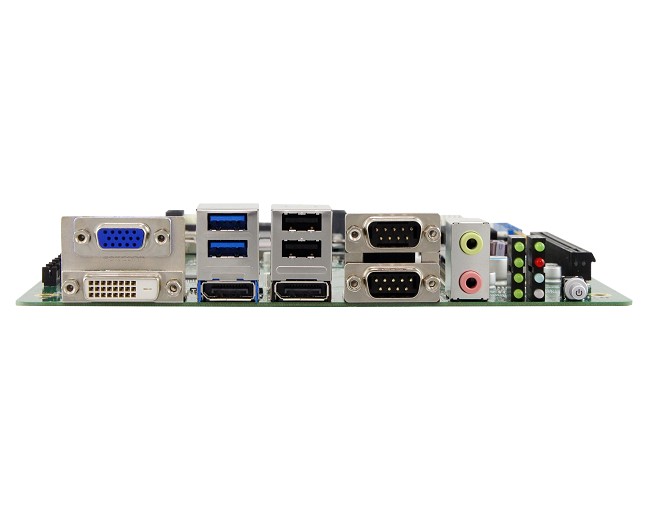

  • 2x DisplayPort,1x DVI-D, 1x VGA
  • 6x USB 3.1, 2x USB 2.0, 2x SATA III, 6x COM
  • 1x PCI-Ex16 (3x PCI-E x4 signal, optional riser card), 1x Mini PCI-E socket, 1x M.2 (M-key)
  • 1x MXM socket supports NVIDIA MXM GPU card (Up to 190W)



Combined with the latest MXM 3.0/3.1 GPU modules, the MT800M-P leverages the advantages of the NVIDIA’s GPU technology to deliver parallel processing performance with unmatched power efficiency, It is suitable for artificial intelligence applications in the retail, banking and transportation industries.

In addition to four display interfaces and 32GB system memory support, MT800M-P offers rich network connectivity with four Gigabit Ethernet and high speed I/O peripheral expandability through its six USB 3.1, two USB 2.0, two SATA III, and six serial ports. Expansion is provided by a fast PCIe x16, a Mini PCIe and an M.2 (M-key) slot. The board measures 270mm by 220mm and has 24V power input. It runs on both Windows 10 and Linux Ubuntu operating systems.

MT800M-P: LGA1151, Q370 Costomized motherboard w/ MXM socket supports Nvidia MXM GPU card (Up to 190W)
