- Powered by NVIDIA® Jetson AGX Xavier™ SOM bundled with JetPack 4.4

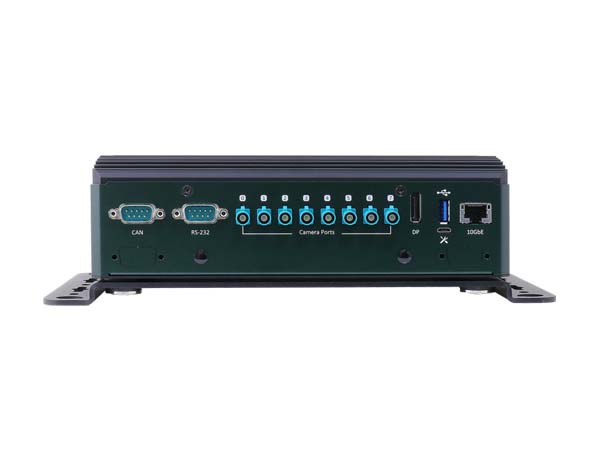

- Support 8x GMSL automotive cameras via FAKRA Z connectors
- 1x 10GBASE-T 10G Ethernet port
- 1x M.2 2280 M key socket for NVMe SSD
- 1x mini PCIe socket for WIFI/ 4G module
- 1x isolated CAN bus port and 1x RS232 port with flow control
- 1x GPS PPS input, 3-CH isolated DI and 4-CH isolated DO

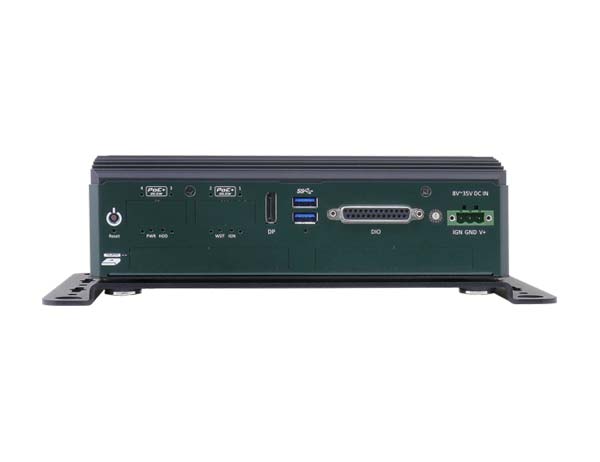

- 8V to 35V wide-range DC input with built-in ignition power control
The power-efficient design not only extends operation time for battery-powered machines, such as autonomous mobile robots (AMR), but also reduces operating costs for mass deployed applications, such as intelligent V2X.
The video input of NRU-110V takes advantages of commercial off the shelf (COTS) automotive cameras, from water-proof ability, high dynamic range, auto white balance, to LED flickering mitigation. In other words, your AI applications will always obtain high-quality images regardless of lighting conditions, from rainy, bright sunny days, to pitch-black nights. NRU-110V supports multiple automotive camera sensors, including SONY ISX019, On Semi AR0147, and AR0231. With the unique onboard trigger system, NRU-110V can simultaneously capture images from eight GMSL cameras within millisecond channel-to-channel skew.
By incorporating 10G Ethernet, NRU-110V can acts as a camera sensor hub by streaming real-time images to another CPU/GPU powerful computer. In addition to the support of eight automotive cameras, it also has one isolated CAN bus for in-vehicle communication, one RS-232 for GPS input and isolated DIOs for connecting sensors/actuators. NRU-110V supports GPS pulse-per-second (PPS) input to support time synchronization among multiple platforms. For data storage, in addition to 32GB eMMC on the Xavier module, NRU-110V includes an M.2 2280 NVMe socket for fast SSD read/write performance. It also has one mini-PCIe socket for the WIFI or 4G module.
Combining its eight GMSL automotive camera support, significant TFLOPS for inference, power-efficient design, and 10GbE data transmission, NRU110V is ideal for AI-based vision applications that require continuous interaction with surroundings, such as AMR, ADAS, intelligent V2X, etc.
