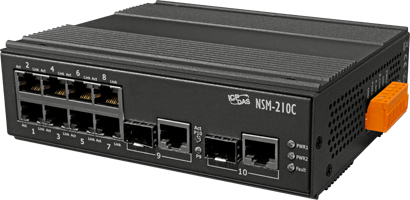

NSM-210C

The NSM-210C is 8 Port 10/100 Base copper and 2 Gigabit fiber optic/copper combo port Ethernet Switch, Supports Auto Negotiation 、 Auto MDI/MDI-X 、high-speed(100 Mbps) and high-distance transmissions . Apart from this, NSM-210C supports dual power and provides a wide +12 VDC ~ +48 VDC power range to fit all the common power standards found in industrial automation, without external power converters.

  • Up to 2 Gigabit uplinks for high bandwidth data aggregation SFP socket for Easy and Flexible Fiber Expansion
  • Supports Auto Negotiation and Auto MDI/MDI-X
  • Supports Dual +12 ~ 48 VDC power input and 1 relay output
  • Supports operating temperatures from -25 ~ +75°C
  • Power loss alarm

NSM-210C CR: 8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch (RoHS)

  • ICP DAS
