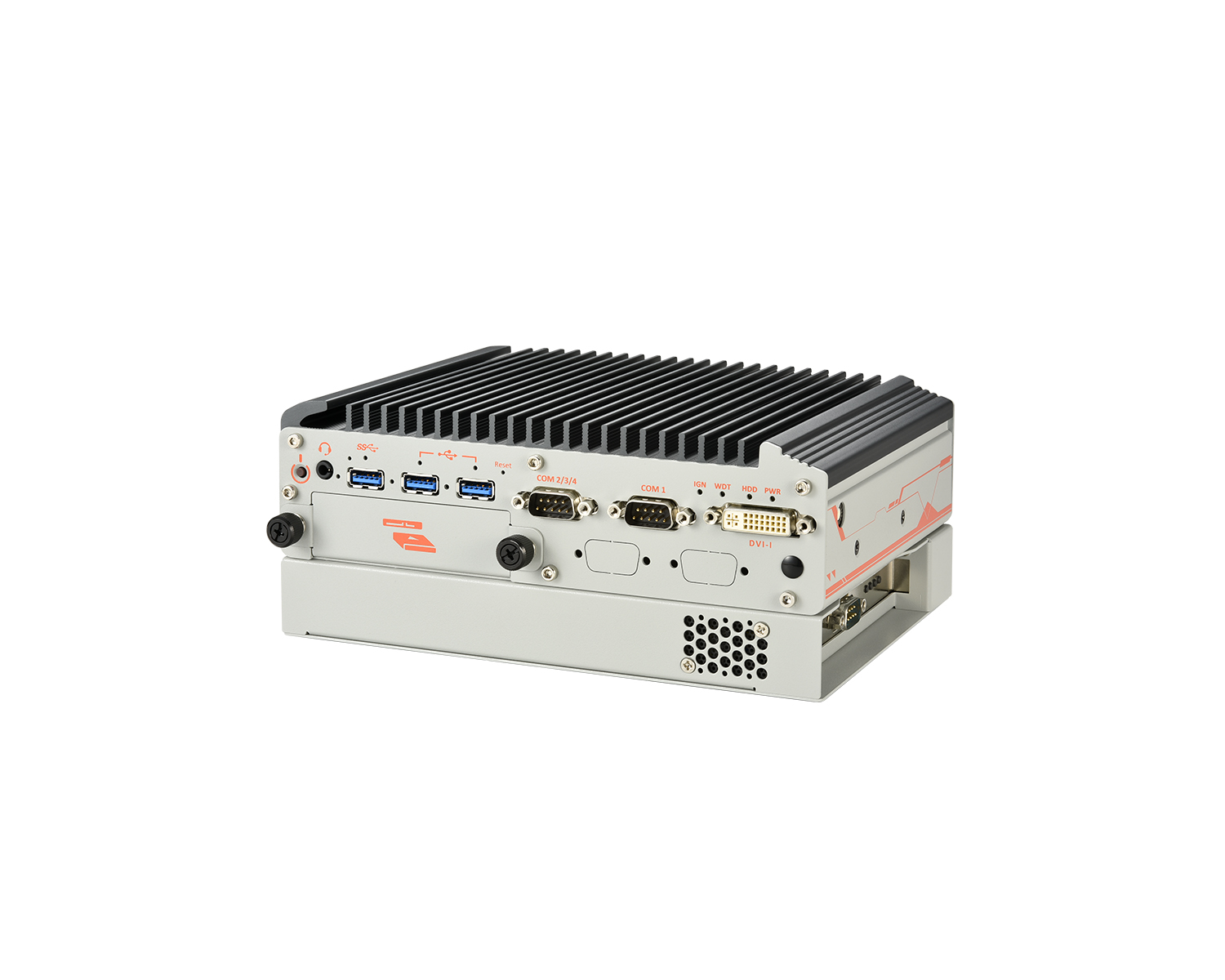

Nuvo-2600 : Backplane System Technology

Key Features:

Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
Rugged -25°C to 70°C fanless operation
4x Gigabit PoE+ ports via RJ-45 connector with screw-lock
1x isolated RS-485 port and 1x RS-422/485 or 3x 3-wire RS-232 ports
2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B key
1x front-accessible 2.5” SATA SSD tray (up to 15mm height) and 1x M.2 2280 SATA
1x patented Cassette for single-slot PCIe card (Nuvo-2600E), or 1x 2500 watt-second SuperCAP UPS (Nuvo-2600J)
8V to 35V wide-range DC input with remote control and optional ignition power control

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x GbE, 7/15mm 2.5″ HDD and PCIe expansion Cassette

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x PoE+ GbE, 7/15mm 2.5″ HDD and PCIe expansion Cassette

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x GbE, 7/15mm 2.5” HDD and PCIe expansion Cassette and ignition power control

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x PoE+ GbE, 7/15mm 2.5” HDD and PCIe expansion Cassette and ignition power control

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x GbE, 7/15mm 2.5″ HDD and SuperCAP UPS

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x PoE+ GbE, 7/15mm 2.5” HDD and SuperCAP UPS

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x GbE, 7/15mm 2.5″ HDD and SuperCAP UPS and ignition power control

Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x PoE+ GbE, 7/15mm 2.5″ HDD and SuperCAP UPS and ignition power control

Nuvo-2600
