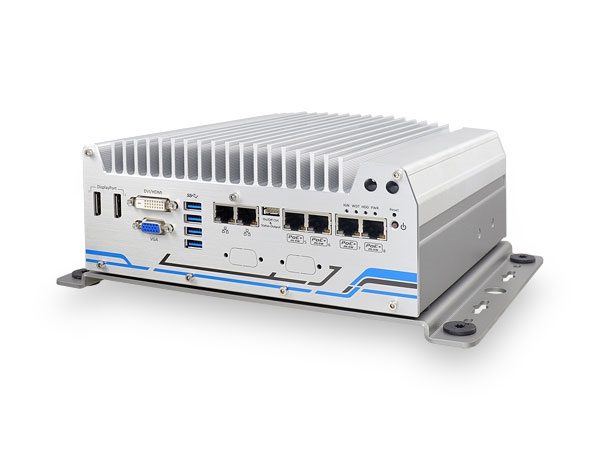

Nuvo-5608VR

SKU 4826

The Nuvo-5608VR is a fanless surveillance system produced by Neousys Technology and featuring:

  • Supports Intel® 6th-Gen Core™ i7/i5/i3 LGA1151 Socket-Type CPU
  • 8x 802.3at PoE+ Ports and 2x GbE Ports
  • 2x 3.5″ HDD Accommodation, Supports RAID 0/1 with Over 24TB Capacity
  • Dedicated HDD Heat-Spreader for Optimised Thermal Performance
  • 4x Full-Size Mini-PCIe Sockets with SIM Support
  • 4-CH Isolated DI and 4-CH Isolated DO
  • 1x CAN 2.0 Port
  • 8~35V Wide-Range DC Input with Built-In Ignition Power Control

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • Supports Intel® 6th-Gen Core™ i7/i5/i3 LGA1151 Socket-Type CPU
  • 8x 802.3at PoE+ Ports and 2x GbE Ports
  • 2x 3.5″ HDD Accommodation, Supports RAID 0/1 with Over 24TB Capacity
  • Dedicated HDD Heat-Spreader for Optimised Thermal Performance
  • 4x Full-Size Mini-PCIe Sockets with SIM Support
  • 4-CH Isolated DI and 4-CH Isolated DO
  • 1x CAN 2.0 Port
  • 8~35V Wide-Range DC Input with Built-In Ignition Power Control

 Nuvo-5608VR: Intel® 6th-Gen Core™ Fanless Surveillance System with 8x PoE+ Ports, DIO, CAN Bus and 2x 3.5” HDD RAID

Accessory Options:
PA-160W-OW: 160W AC/DC Power Adaptor 20V/8A;18AWGx4C/120cm; Cord End Terminals for Terminal Block, -30°C to 70°C Operating Temperature

PA-280W-ET2: 280W AC/DC Power Adaptor 24V/11.67A;16AWG/100cm; Cord End Terminals for Terminal Block, -30°C to 70°C Operating Temperature
