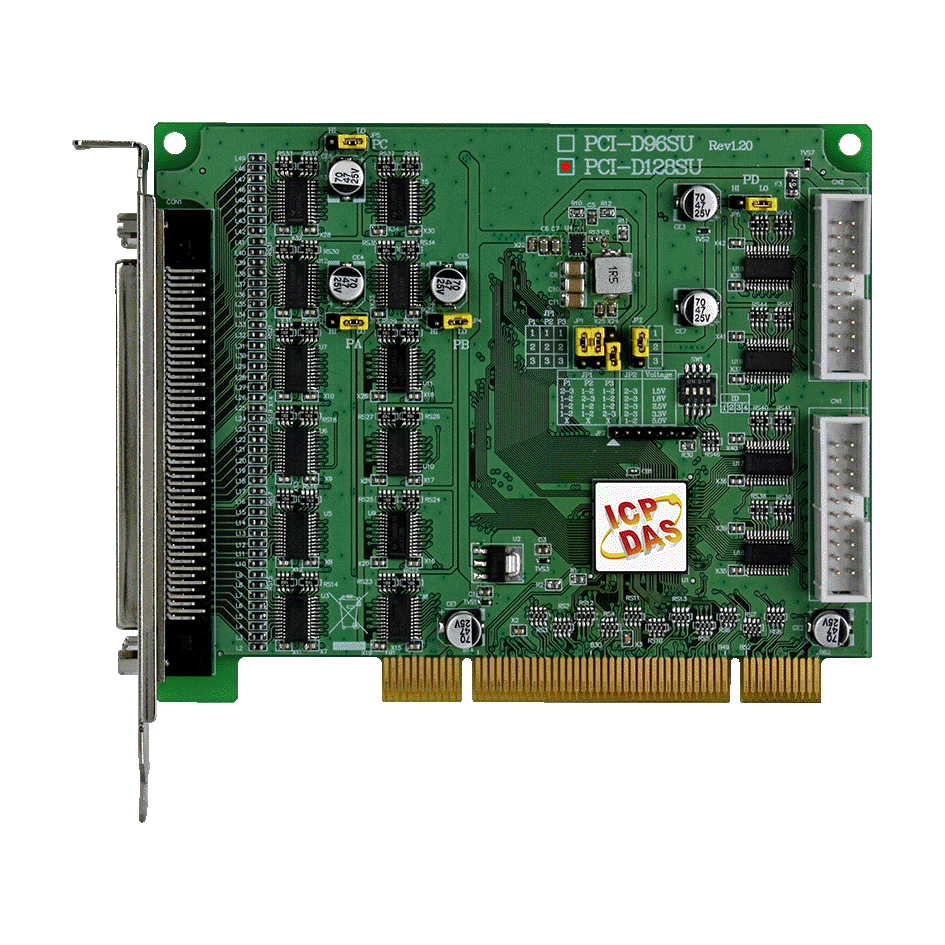

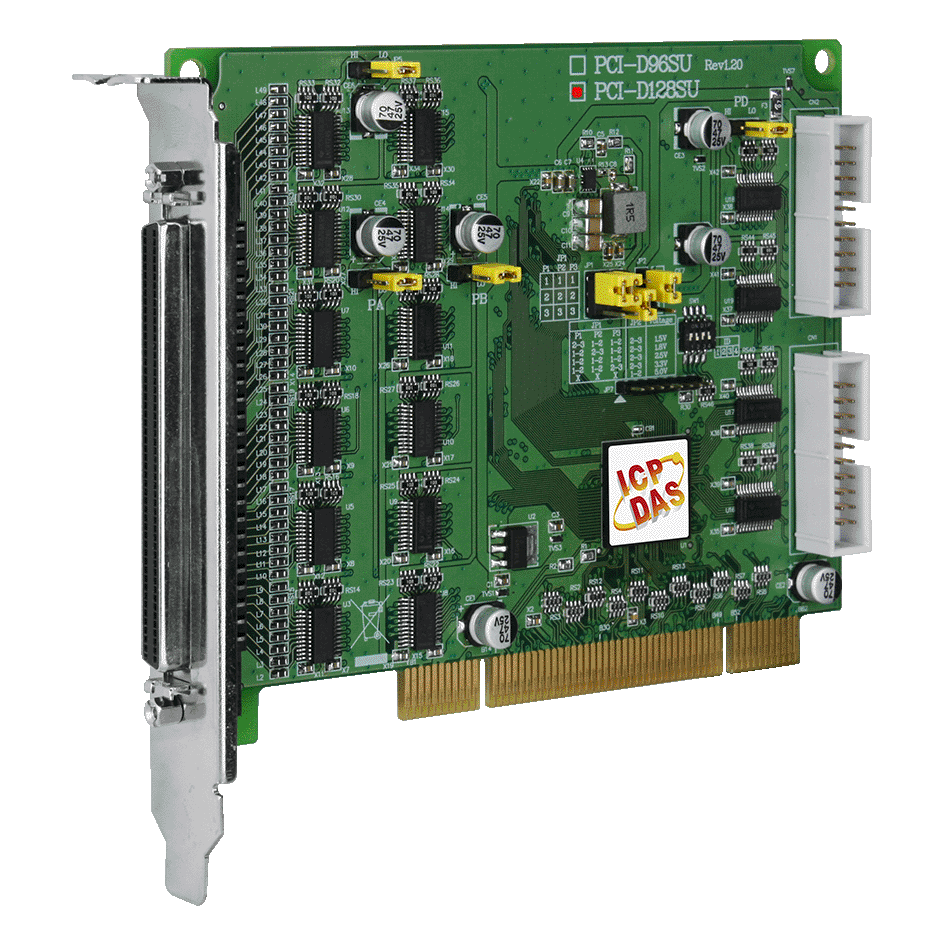

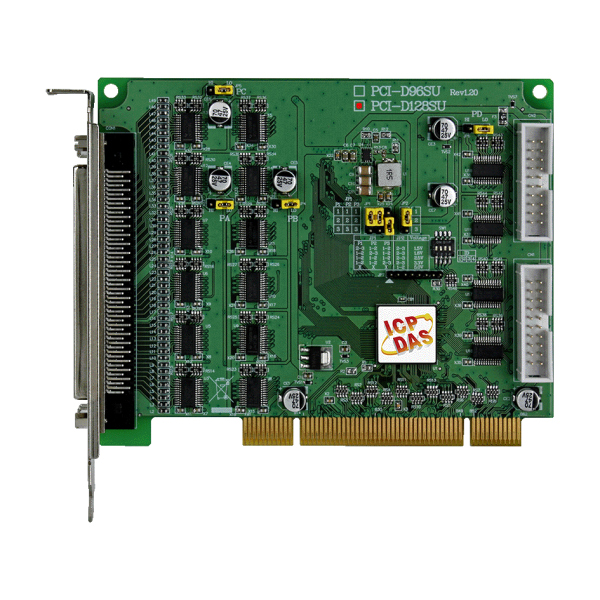

PCI-D128SU

The PCI-D128SU supports 3.3 V/5 V PCI bus. These cards provide 128 Digital I/O lines that consist of four 32-bit bi-directional ports for use in a variety of Digital I/O applications. Each channel could be setting for Digital Input or Output. They provide a variety of operating voltage (+1.8 V, +2.5 V, +3.3 V and +5 V) for customers need.

  • Support the +3.3/+5 V PCI bus
  • 128 channels of Digital I/O
  • Bi-direction programmable I/O ports under software control
  • 3/4 32-bit bi-direction I/O ports
  • DIO operating voltage: +1.8 V, +2.5 V, +3.3 V, +5 V
  • Pull-high/Pull-low Jumpers for DI channels
  • Digital Pattern Generator for DO channels
  • Pattern-matching and change state Interrupt monitoring
  • Supports Card ID (SMD Switch)
  • Supports a High-density SCSI II 100-pin Connector

PCI-D128SU CR: Universal PCI, 128-ch, 32-bit Digital I/O Board (RoHS)

  • ICP DAS
