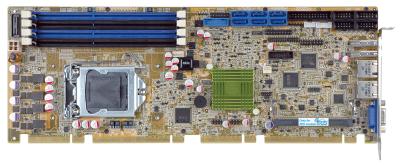

PCIE-Q870-i2

SKU 4175

Full-size PICMG 1.3 CPU card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87, DDR3, VGA, iDP, Dual PCIe GbE, SATA 6Gb/s, mSATA, PCIe Mini, RS-232, Audio, iRIS-2400 and RoHS

See the Product PDF Datasheet for Full Specifications.

  • PICMG 1.3 full-size graphic grade solution
  • LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
  • Four 240-pin 1600/1333MHz dual-channel DDR3 DIMMs support up to 32GB memory
  • Supports dual independent display by VGA & iDP interface
  • Supports PCIe Mini devices and mSATA via PCIe Mini socket
  • Intel® PCIe GbE with Intel® AMT 9.0 support
  • Supports RAID function via SATA 6Gb/s
  • TPM V1.2 hardware security function supported by TPM module
  • Stiffener bars
  • IEI jumper-less function
  • Support IPMI 2.0 via iRIS-2400 module

PCIE-Q870-i2-R10: Full-size PICMG 1.3 CPU card supports LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87, DDR3, VGA, iDP, Dual Intel® PCIe GbE, SATA 6Gb/s, mSATA, RS-232, PCIe Mini, Audio, iRIS-2400 and RoHS
